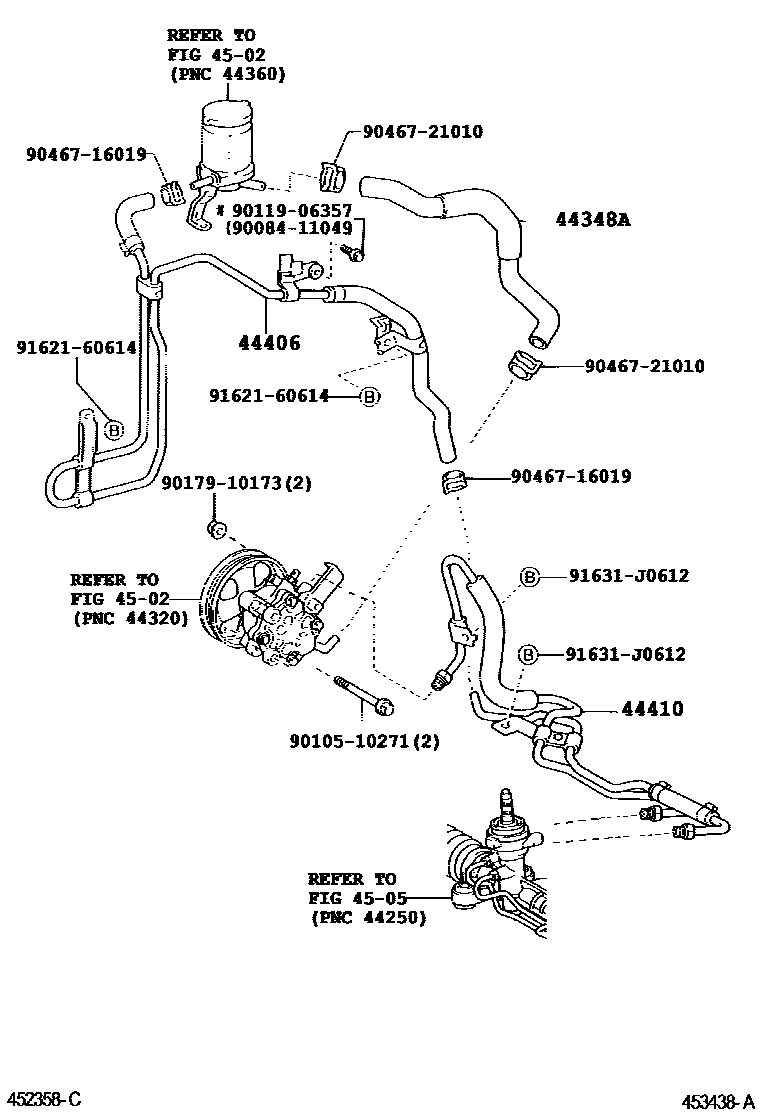

POWER STEERING TUBE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-02080iZZE122200408

main44348-12091iZZE122200402-200408

44406TUBE SUB-ASSY, RETURN

main44406-02110iZZE122200408

main44406-12231iZZE122200402-200408

44410TUBE ASSY, PRESSURE FEED

main44410-02130iZZE122200408-200506

main44410-02131iZZE122200506

main44410-12650iZZE122200402-200408

4502

4505

9008411049

main90084-11049

9010510271

main90105-10271

9011906357

main90119-06357

9017910173

main90179-10173

9046716019

main90467-16019

9046721010

main90467-21010

9162160614

main91621-60614

91631J0612

main91631-J0612

13 parts on this diagram · 1 diagram in section
