TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

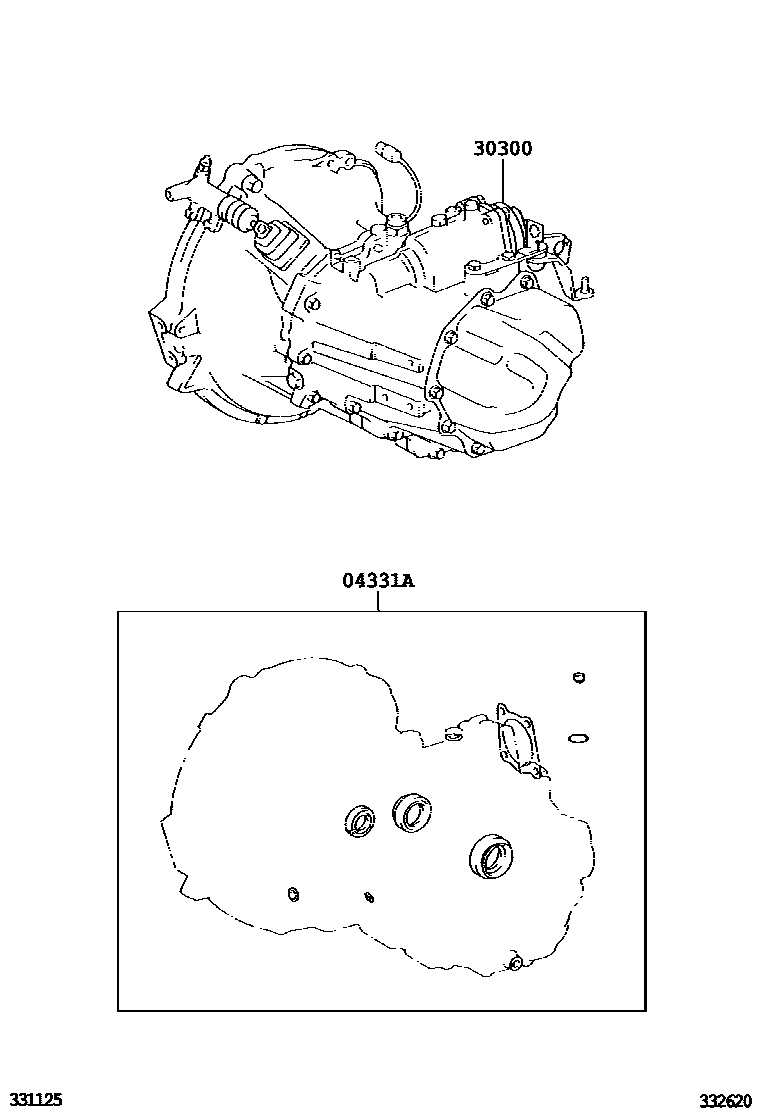

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-02100i200802-201101
main04331-02101i201101-201210
main04331-12181i200502-200510
sub04331-12183
main04331-12580i200511-200705
sub04331-12270
main04331-12690i200705-200801
sub04331-12691
30300TRANSAXLE ASSY, MANUAL
main30300-02120i200705-200802
C50
main30300-02121i200802-200905
C50
main30300-02250i200905-201011
C50
main30300-02260i201210-201702
C50
main30300-1A821i200502-200705
C52
sub30300-1A822

2 parts on this diagram · 2 diagrams in section
