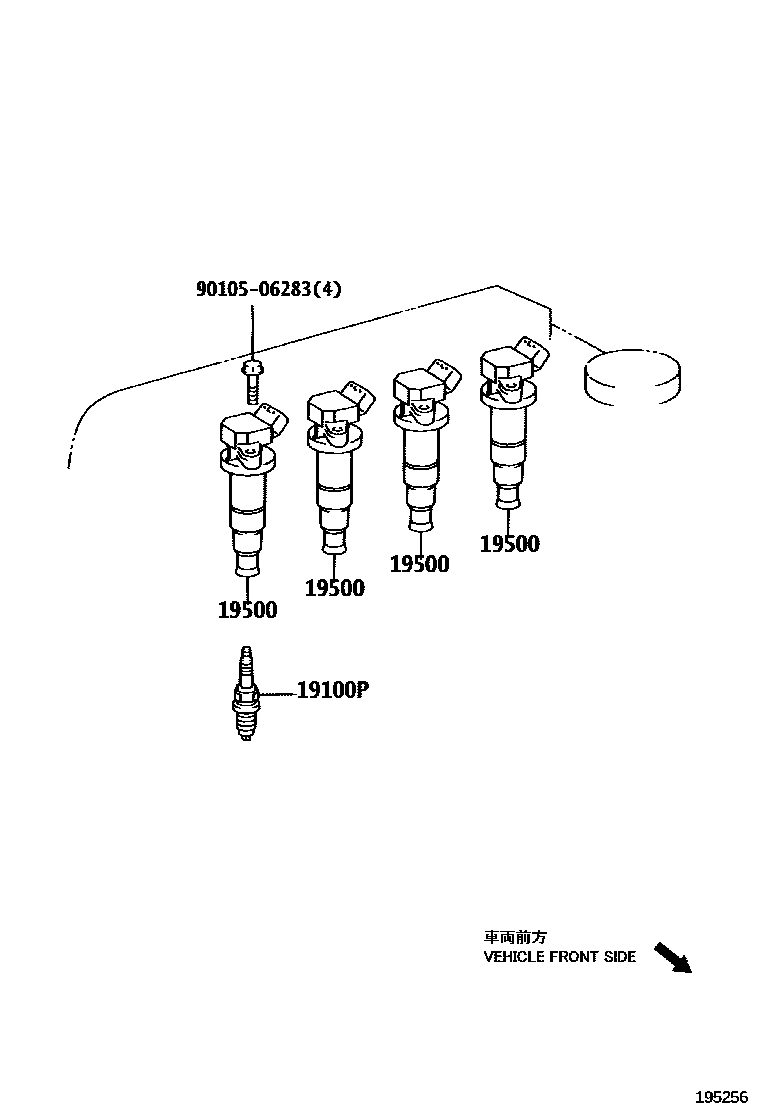

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01164×4i1ZZFE..ZZE122200402-200705

K16R-U11,(J),(L)

main90919-01253×4i1ZRFE..ZRE120201502-201506

SC20HR11,(J)

sub90919-01275

main90919-C1010×4i1ZRFE..ZRE120201507

SC20HR11

main90919-T1009×4i1ZRFE..ZRE120200705-201210

SC20HR11,(L)

main90919-T1014×4i1ZRFE..ZRE120201507

SC16HR11

19500COIL ASSY, IGNITION

main90919-02239×4i1ZZFE..ZZE122200402-200705

sub90919-02262

main90919-02252×4i1ZRFE..ZRE120200705-201007

(J)

main90919-02258×4i1ZRFE..ZRE120201007-201210

(J)

main90919-C2003×4i1ZRFE..ZRE120200705-201007

(L)

main90919-C2005×4i1ZRFE..ZRE120201007-201210

(L)

9010506283

main90105-06283

3 parts on this diagram · 2 diagrams in section
