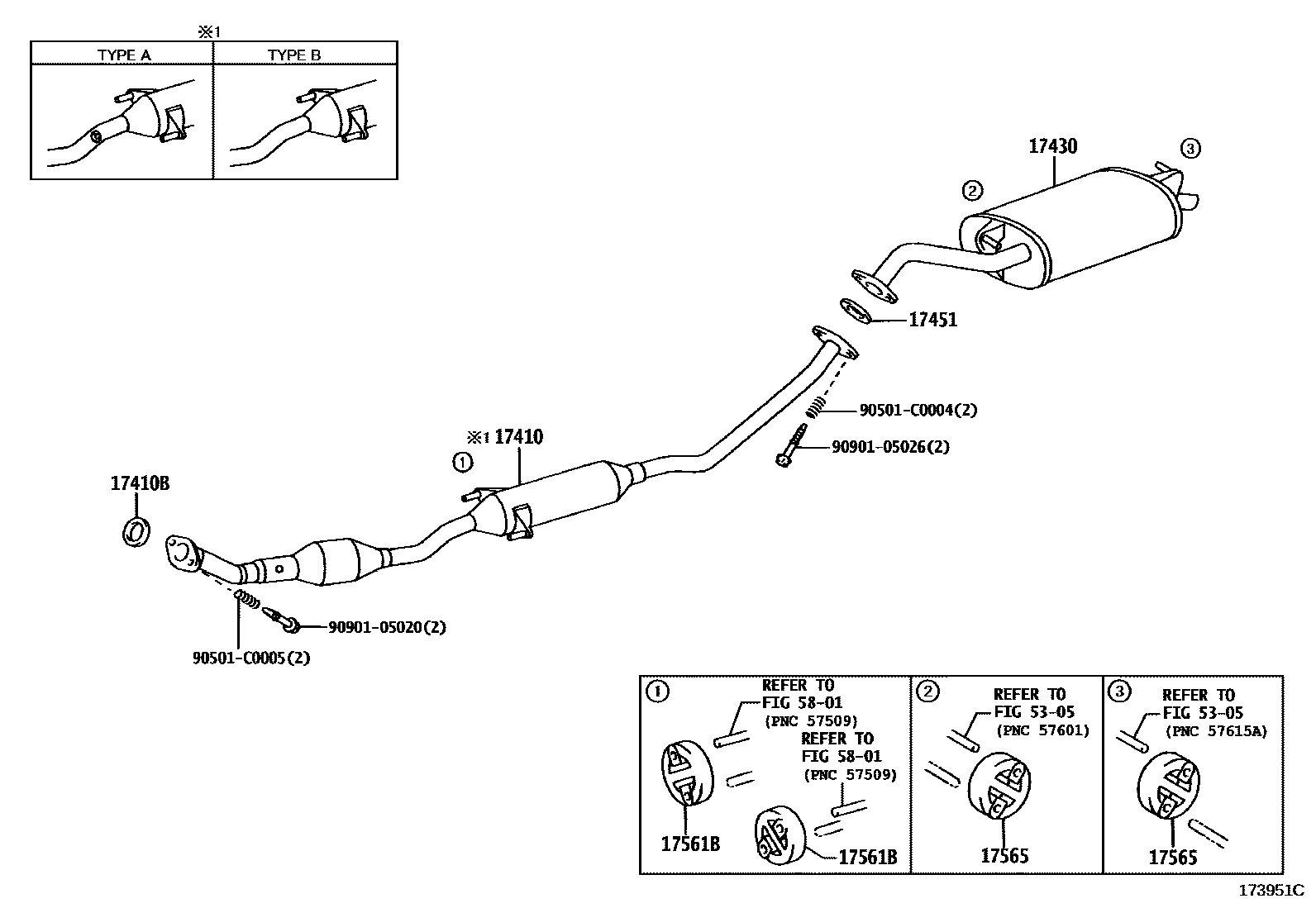

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D350i1ZZFE..ZZE122200402-200606

TYPE A:REFER ILLUST.

main17410-0D410i1ZZFE..ZZE122200506-200606

TYPE B:REFER ILLUST.

main17410-0D411i1ZZFE..ZZE122200606-200608

TYPE B:REFER ILLUST.

main17410-0D412i1ZZFE..ZZE122200608-200705

TYPE B:REFER ILLUST.

main17410-0T060i1ZRFE..ZRE120200705-201011

main17410-0T270i1ZRFE..ZRE120201210

main17410-0T280i1ZRFE..ZRE120201005-201210

EXHAUST EMISSION CONTROL(ECE STEP5)

17410BGASKET, EXHAUST PIPE

main17451-0D120i1ZZFE..ZZE122200606-200705

main17451-0T010i1ZRFE..ZRE120200705-201210

main17451-22070i1ZZFE..ZZE122200402-200606

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D350i1ZZFE..ZZE122200402-200606

main17430-0D410i1ZZFE..ZZE122200606-200608

main17430-0D411i1ZZFE..ZZE122200608-200705

main17430-0T020i1ZRFE..ZRE120200705-201210

17451GASKET, EXHAUST PIPE

main17451-0T020i1ZRFE..ZRE120200705-200808

main17451-0T021i1ZRFE..ZRE120200809-201101

main17451-0T022i1ZRFE..ZRE120201210

main17451-16030i1ZZFE..ZZE122200402-200705

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-0D070×2i1ZZFE..ZZE122200402-200705

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D080×2i1ZZFE..ZZE122200402-200705

main17565-0T010×2i1ZRFE..ZRE120200705-201210

sub17565-0T011

5305

5801

90501C0004

main90501-C0004

90501C0005

main90501-C0005

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 2 diagrams in section
