V-BELT

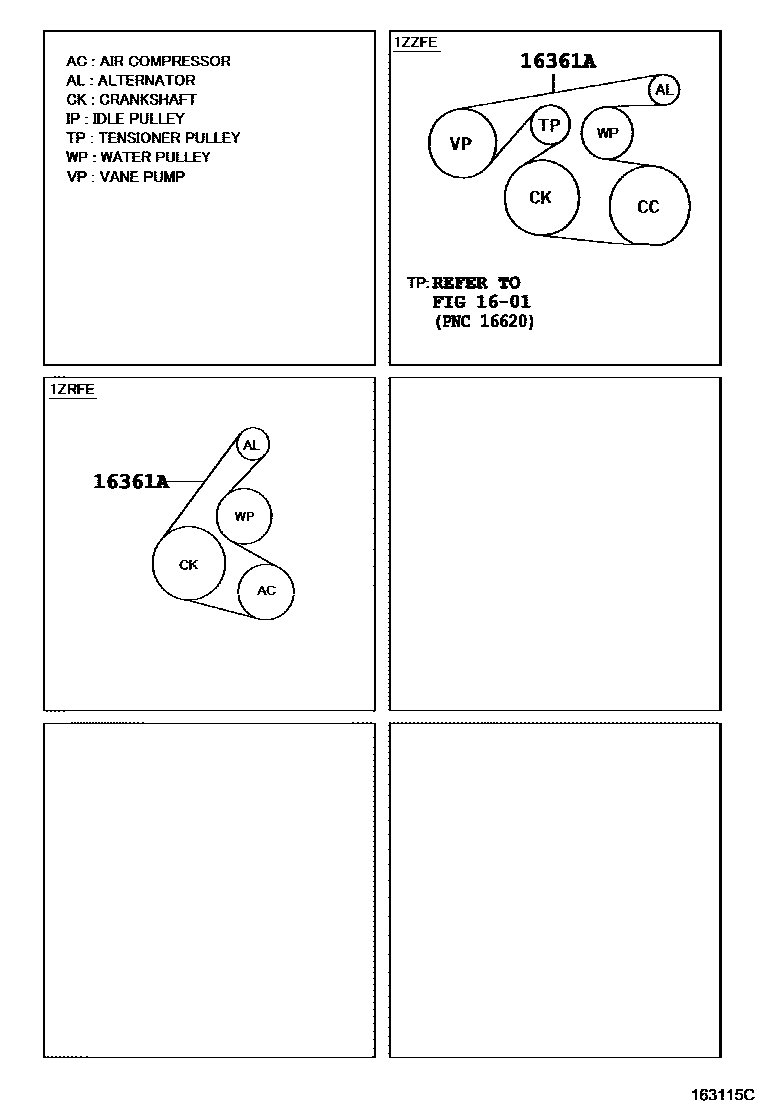

Parts diagram

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02547i200402-200705

main90916-02664i200707-201210

(J)

main90916-C2002i200802-201210

(L)

main99366-K1230i200705-200706

2 parts on this diagram · 1 diagram in section
