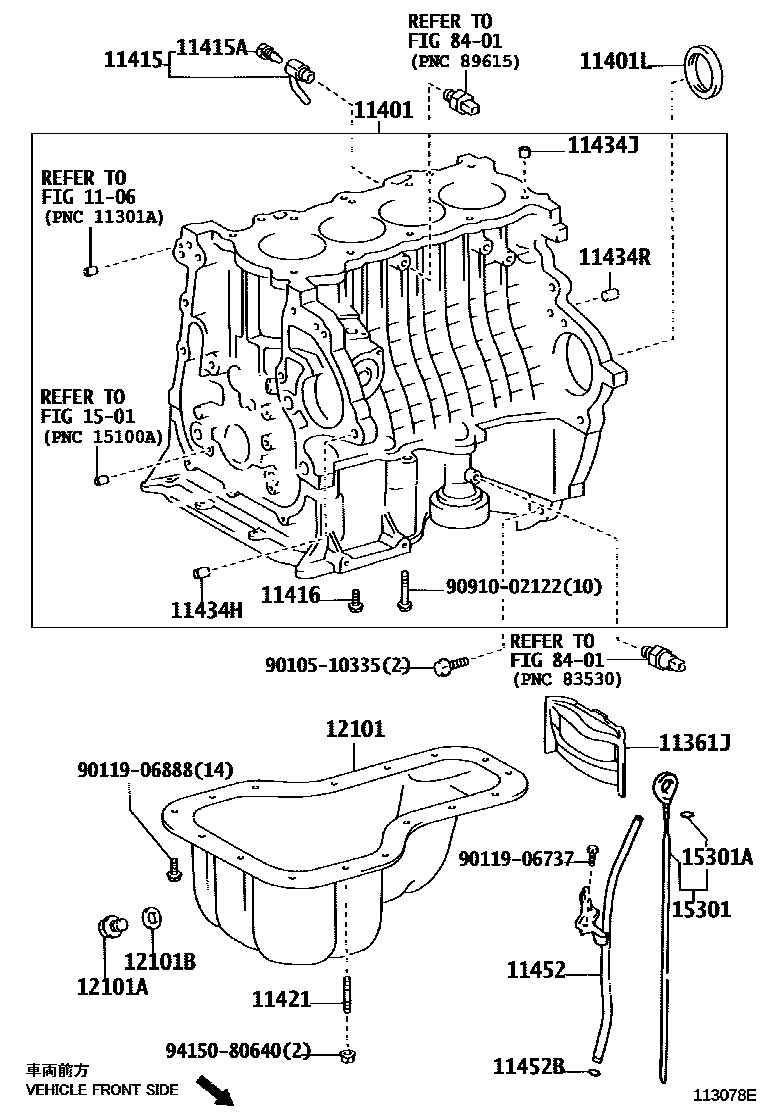

CYLINDER BLOCK
1106
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11401BLOCK SUB-ASSY, CYLINDER
(L)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11421BOLT, STUD(FOR OIL PAN)
11434HPIN, RING (FOR TIMING BELT COVER SET)
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
(L)
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
(J)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
1501
15301ARING, O(FOR OIL LEVEL GAGE)
8401
9010510335
main90105-10335
9011906737
main90119-06737
9011906888
main90119-06888
9091002122
main90910-02122
9415080640
main94150-80640
25 parts on this diagram · 3 diagrams in section
