SHORT BLOCK ASSEMBLY

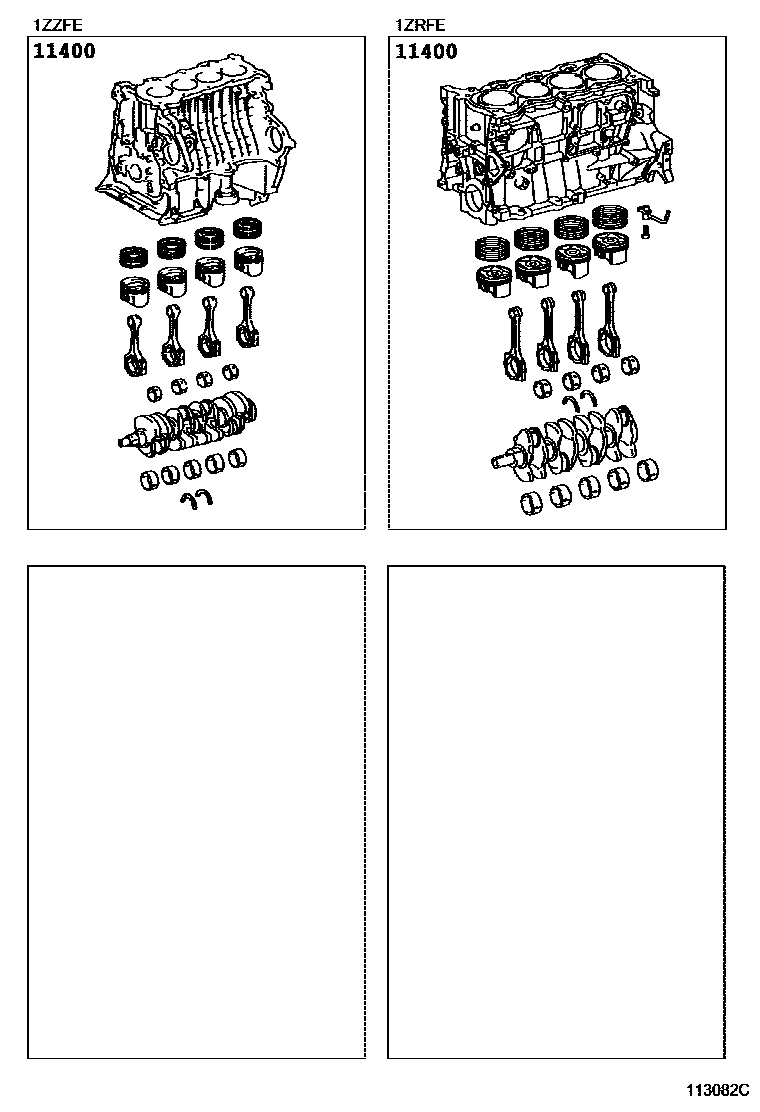

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0D200i200402-200404

main11400-0D201i200404-200505

main11400-0D202i200505-200606

main11400-0T030i200705-201210

main11400-0T340i201502

main11400-22530i200606-200705

1 parts on this diagram · 1 diagram in section
