STANDARD TOOL

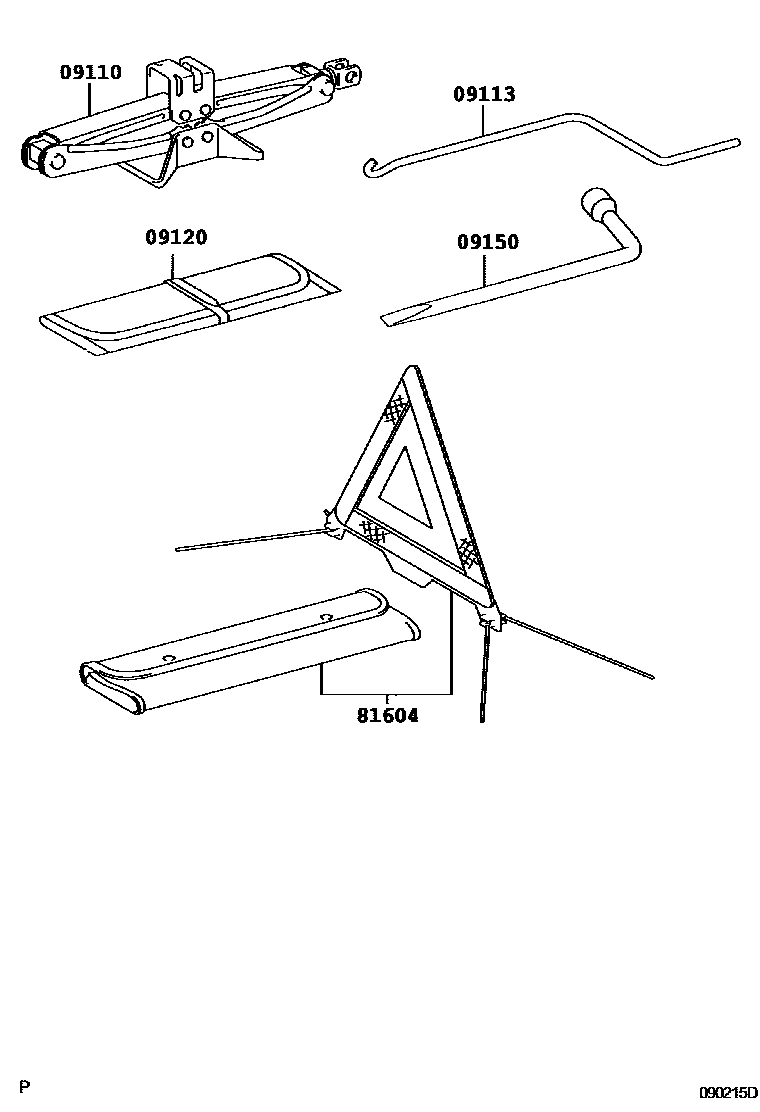

Parts diagram

09110JACK ASSY

main09111-02070i200705-200706

main09111-02071i200706-201002

main09111-02100i201210

09113HANDLE, JACK

main09113-0D020i200402-200705

main09113-0D021i200709-201210

09120BAG, TOOL

main09120-0D010i201210

09150WRENCH, HUB NUT BOX

main09150-0D010i200504-200705

main09150-0D020i200709-201210

main09150-40010i200402-200504

81604REFLECTOR SET, TRIANGLE

main81604-02010i200408-200705

main81604-02011i200709-201004

main81604-02030i201005-201210

5 parts on this diagram · 1 diagram in section
