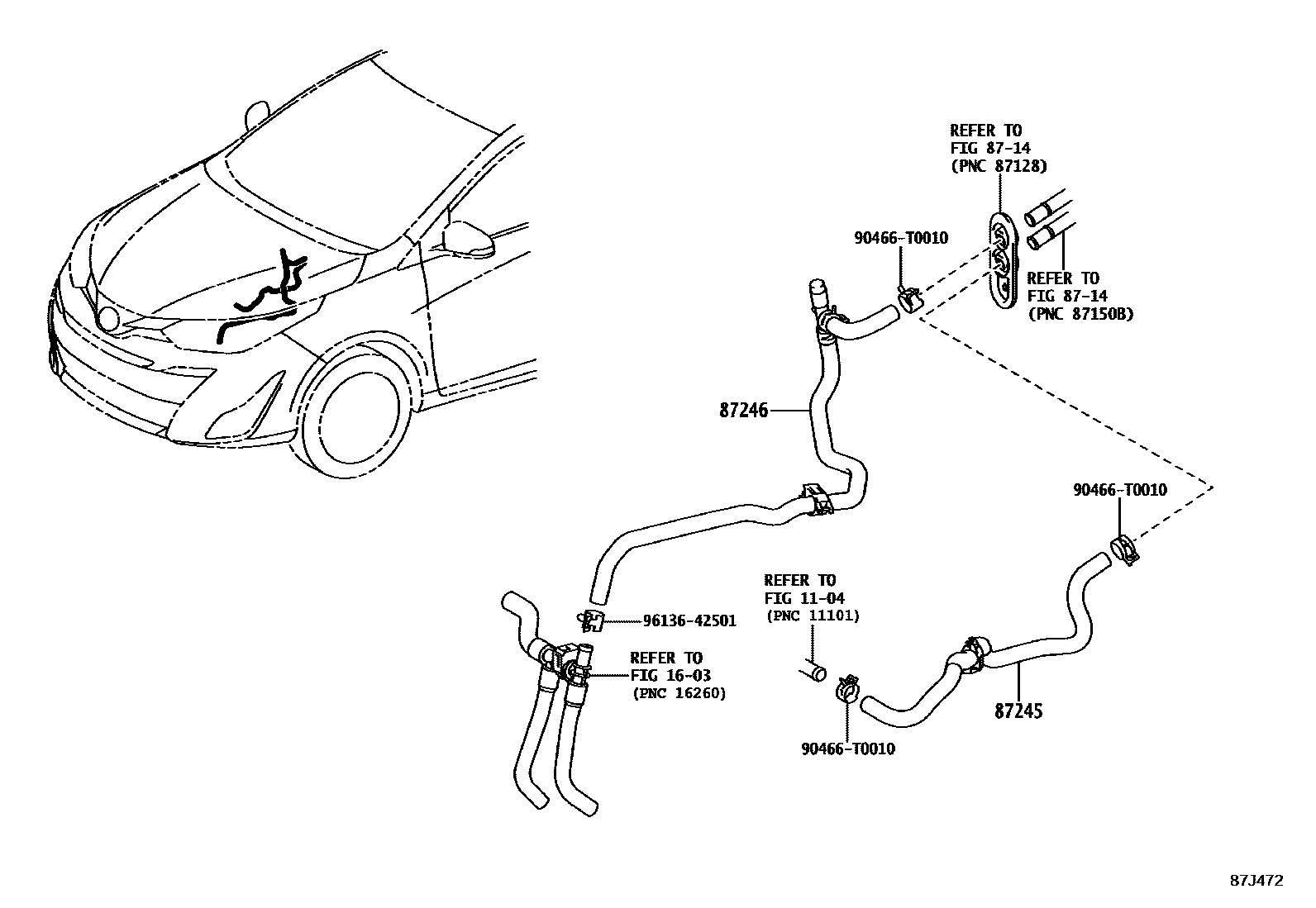

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0D410iNSP151..5D202101-202407

87246HOSE, HEATER WATER, OUTLET

main87209-0D420iNSP151..5D202101-202407

90466T0010

main90466-T0010

9613642501

main96136-42501

7 parts on this diagram · 1 diagram in section
