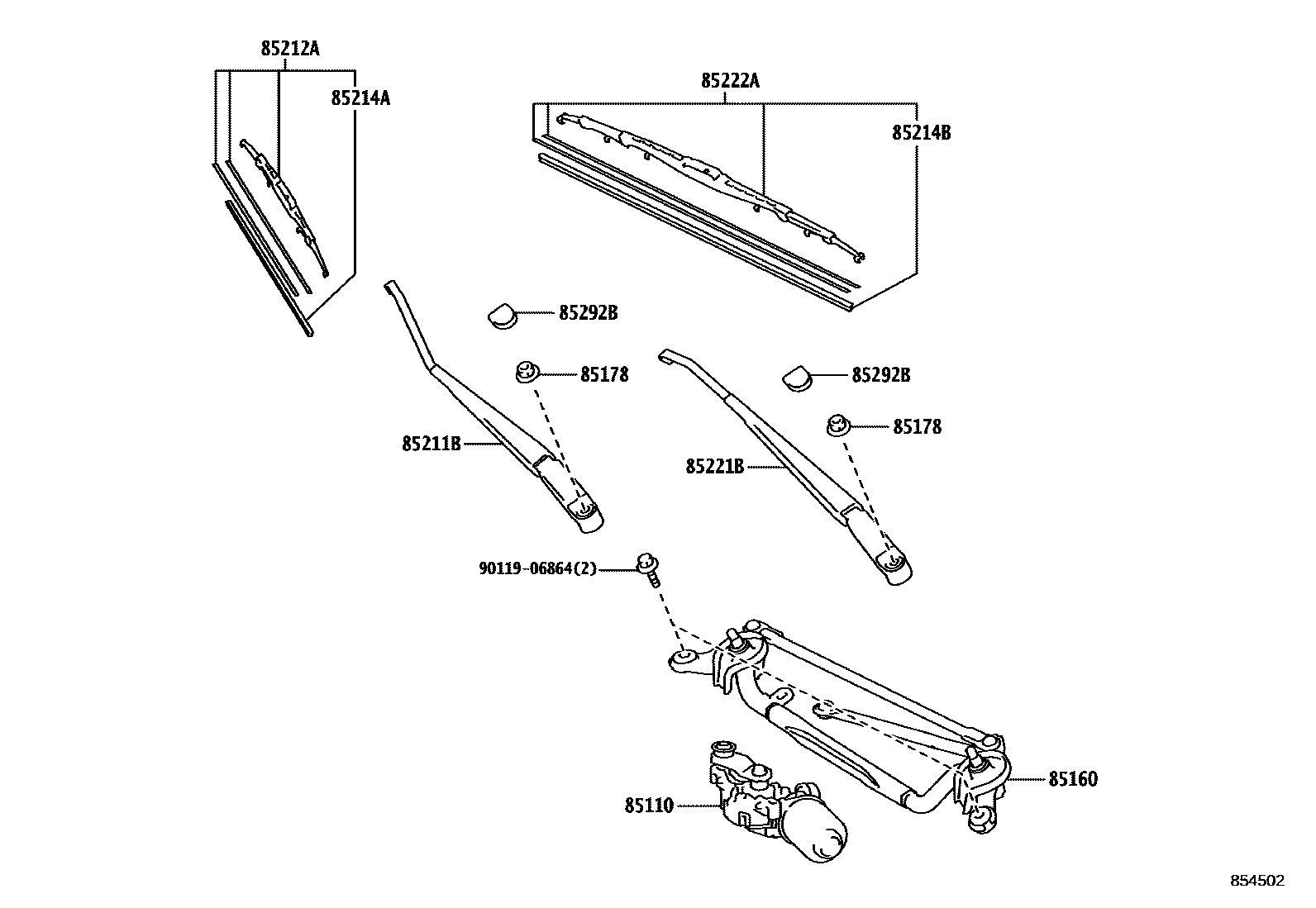

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D151iNSP151..5D202101-202306

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D150iNSP151..5D202101-202306

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iNSP151..5D202101-202306

85211BARM, FRONT WIPER, RH

main85211-0D190iNSP151..5D202101-202306

85212ABLADE, FR WIPER, RH

main85212-0D081iNSP151..5D202101-202306

85214ARUBBER, WIPER, RH

main85214-0D121iNSP151..5D202101-202306

85214BRUBBER, WIPER, LH

main85214-02180iNSP151..5D202101-202306

85221BARM, FRONT WIPER, LH

main85221-0D170iNSP151..5D202101-202306

85222ABLADE, FR WIPER, LH

main85222-0D080iNSP151..5D202101-202306

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D050×2iNSP151..5D202101-202306

9011906864

main90119-06864

11 parts on this diagram · 1 diagram in section
