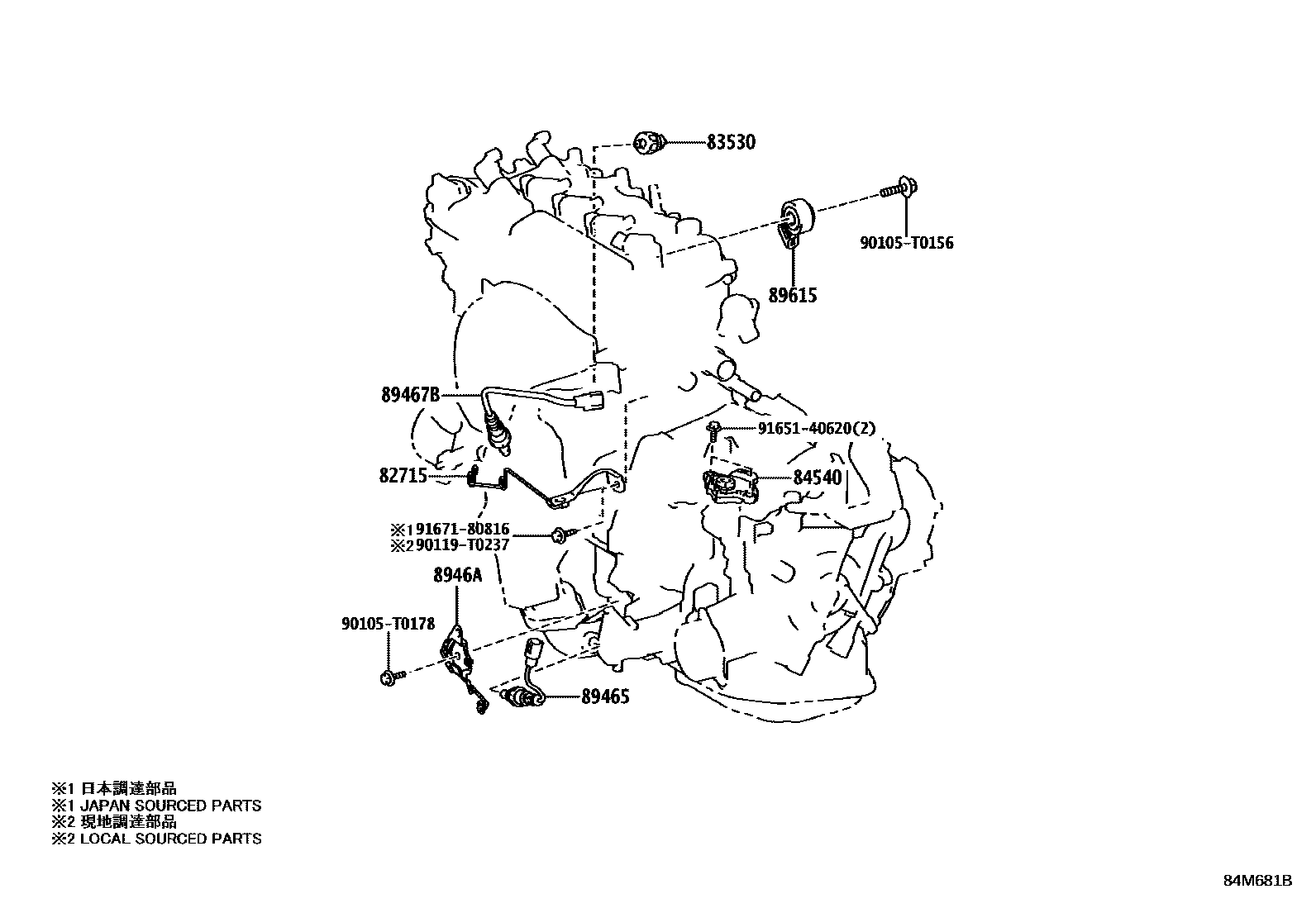

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & LUGGAGE 0008 1DOOR,ROOF,FLOOR & BACK DOOR

82715BRACKET,WIRING HARNESS CLAMP

main82715-5C360iNSP151..5D202101-202306

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP151..D202101-202407

DENSO

main83530-60020iNSP151..4D..(R,V)202101

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP151..5D202101-202306

89465SENSOR, OXYGEN

main89465-52740iNSP151..5D202101-202306

89467BSENSOR, AIR FUEL RATIO

main89467-30050iNSP151..5D202101-202306

8946ABRACKET, EXHAUST SENSOR CLAMP

main82715-12S40iNSP151..5D202101-202306

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP151..5D202101-202306

90105T0156

main90105-T0156

90105T0178

main90105-T0178

90119T0237

main90119-T0237

9165140620

main91651-40620

9167180816

main91671-80816

12 parts on this diagram · 8 diagrams in section
