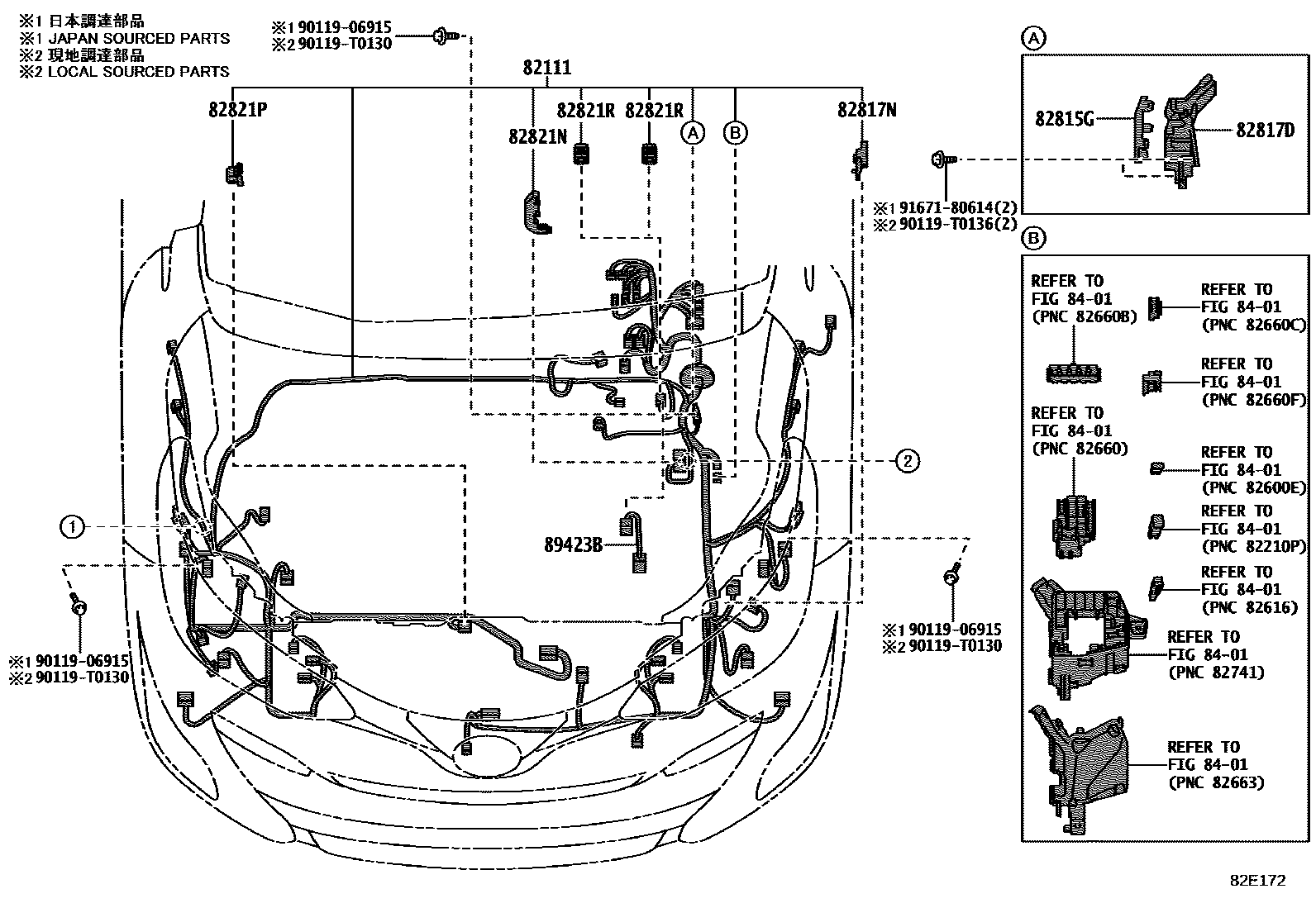

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1IMPANE HB 0004 1IMPANE SDN 0005 1DOOR HB 0006 1DOOR SDN 0007 1 0008 1 0009 1 0010 1CONNECTOR 1/3 0011 1CONNECTOR 2/3 0012 1CONNECTOR 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-0UU10iNSP151..D202101-202407

main82115-0UU70iNSP151..5D..V202101-202306

main82115-0UU80supersedes 82111-0UU20iNSP151..4D..V202101

main82115-0UU60supersedes 82111-0UU20iNSP151..4D..R202101

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0D350iNSP151..5D202101-202306

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0D700iNSP151..5D202101-202306

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-0D580iNSP151..5D202101-202306

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-0DB10iNSP151..5D202101-202306

82821NCOVER, CONNECTOR

main82821-52240iNSP151..5D202101-202306

82821PCOVER, CONNECTOR

main82821-30650iNSP151..5D202101-202306

82821RCOVER, CONNECTOR

main82821-30600×2iNSP151..5D202101-202306

8401

89423BWIRE, VACUUM SENSOR

main89423-0D060iNSP151..5D202101-202306

9011906915

main90119-06915

90119T0130

main90119-T0130

90119T0136

main90119-T0136

9167180614

main91671-80614

14 parts on this diagram · 12 diagrams in section
