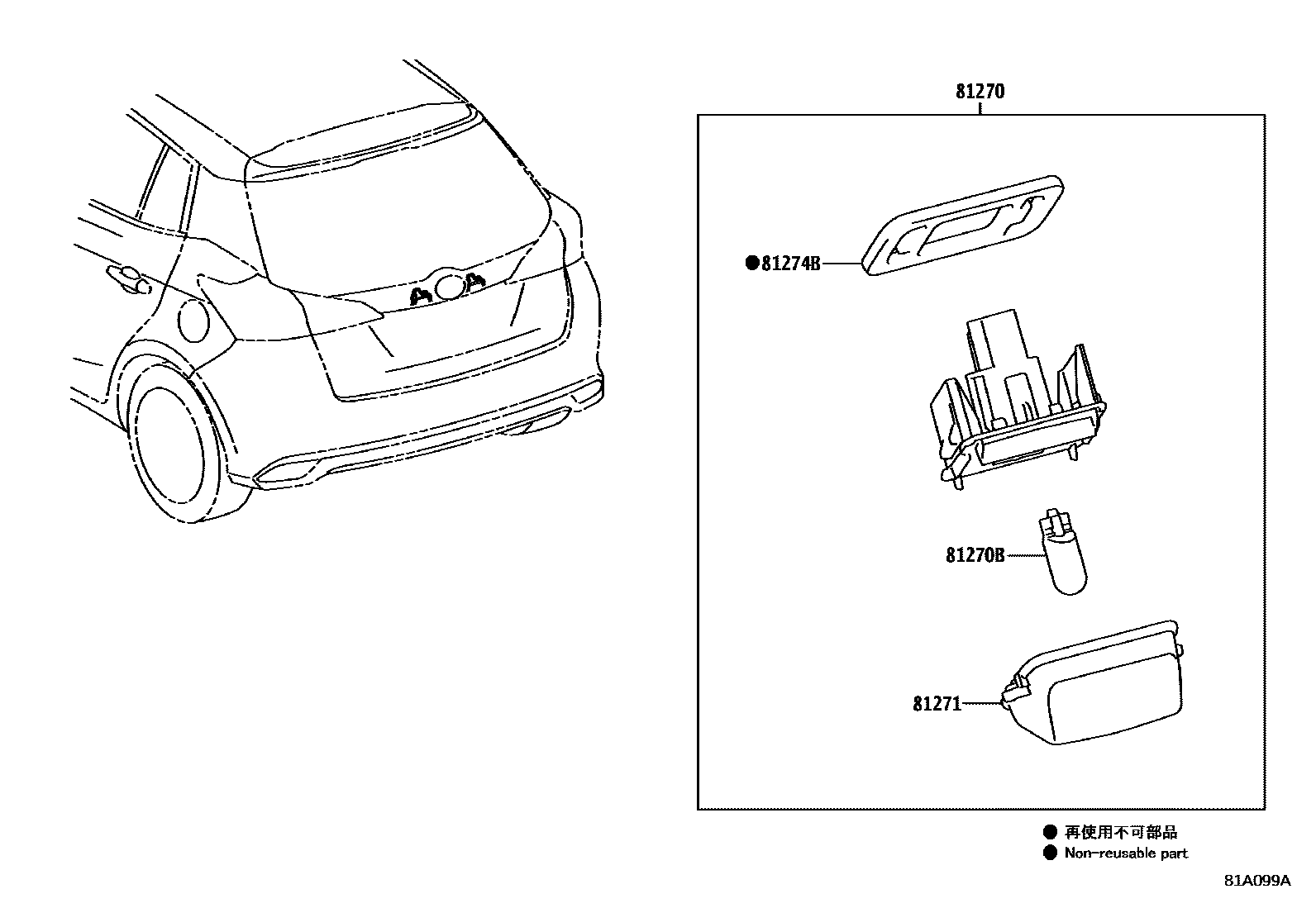

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-0D120×2iNSP151..5D202101-202306

main81270-0D200×2iNSP151..D202101-202407

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-TB003×2iNSP151..D202101-202407

12V 5W

main99132-12050×2iNSP151..5D202101-202306

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0D120×2iNSP151..5D202101-202306

main81271-0D200×2iNSP151..D202101-202407

81274BPACKING, LICENSE PLATE LAMP

main81274-02130×2iNSP151..5D202101-202306

main81274-0D200×2iNSP151..D202101-202407

4 parts on this diagram · 2 diagrams in section
