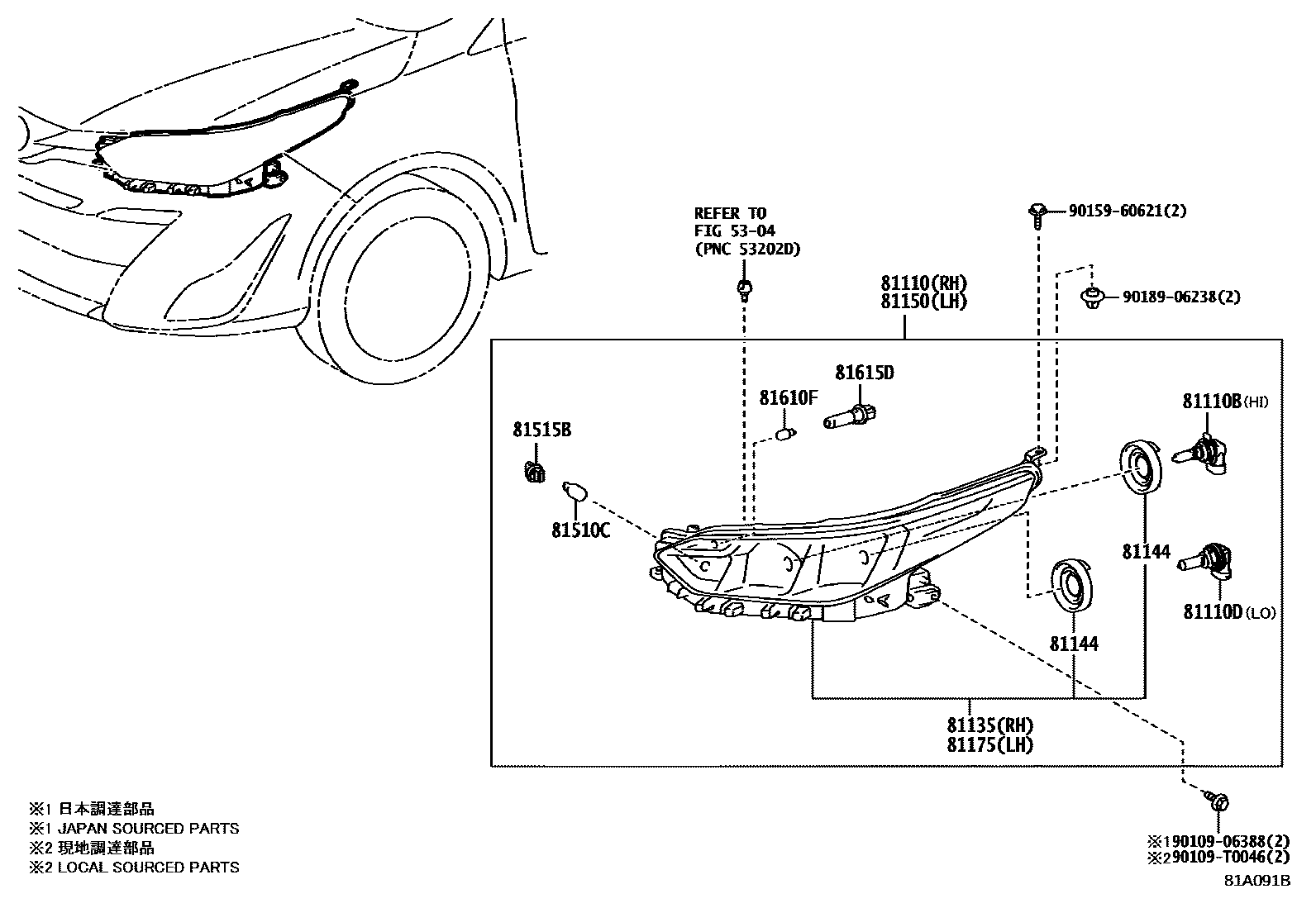

HEADLAMP

0001 1MULTI REFLECTOR TYPE 0002 1REFLECTOR TYPE

5304

81110HEADLAMP ASSY, RH

main81110-0DJ30iNSP151..5D..(G,R)202101-202306

main81110-0DJ40iNSP151..4D..V202101

main81110-0DJ50iNSP151..5D..V202101-202306

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iNSP151..D202101-202407

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13085iNSP151..D202101-202407

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0DJ30iNSP151..5D..(G,R)202101-202306

main81130-0DJ40iNSP151..4D..V202101

main81130-0DJ50iNSP151..5D..V202101-202306

81144COVER, HEADLAMP, NO.1

main90075-65006×4iNSP151..D202101-202407

81150HEADLAMP ASSY, LH

main81150-0DJ30iNSP151..4D..R202101

main81150-0DJ40iNSP151..4D..V202101

main81150-0DJ50iNSP151..5D..V202101-202306

81175UNIT ASSY, HEADLAMP, LH

main81170-0DJ30iNSP151..5D..(G,R)202101-202306

main81170-0DJ40iNSP151..4D..V202101

main81170-0DJ50iNSP151..5D..V202101-202306

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNSP151..4D..(R,V)202101

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNSP151..5D202101-202306

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069×2iNSP151..5D..(G,R)202101-202306

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNSP151..5D..(G,R)202101-202306

9010906388

main90109-06388

90109T0046

main90109-T0046

9015960621

main90159-60621

9018906238

main90189-06238

16 parts on this diagram · 2 diagrams in section
