ARMREST & VISOR

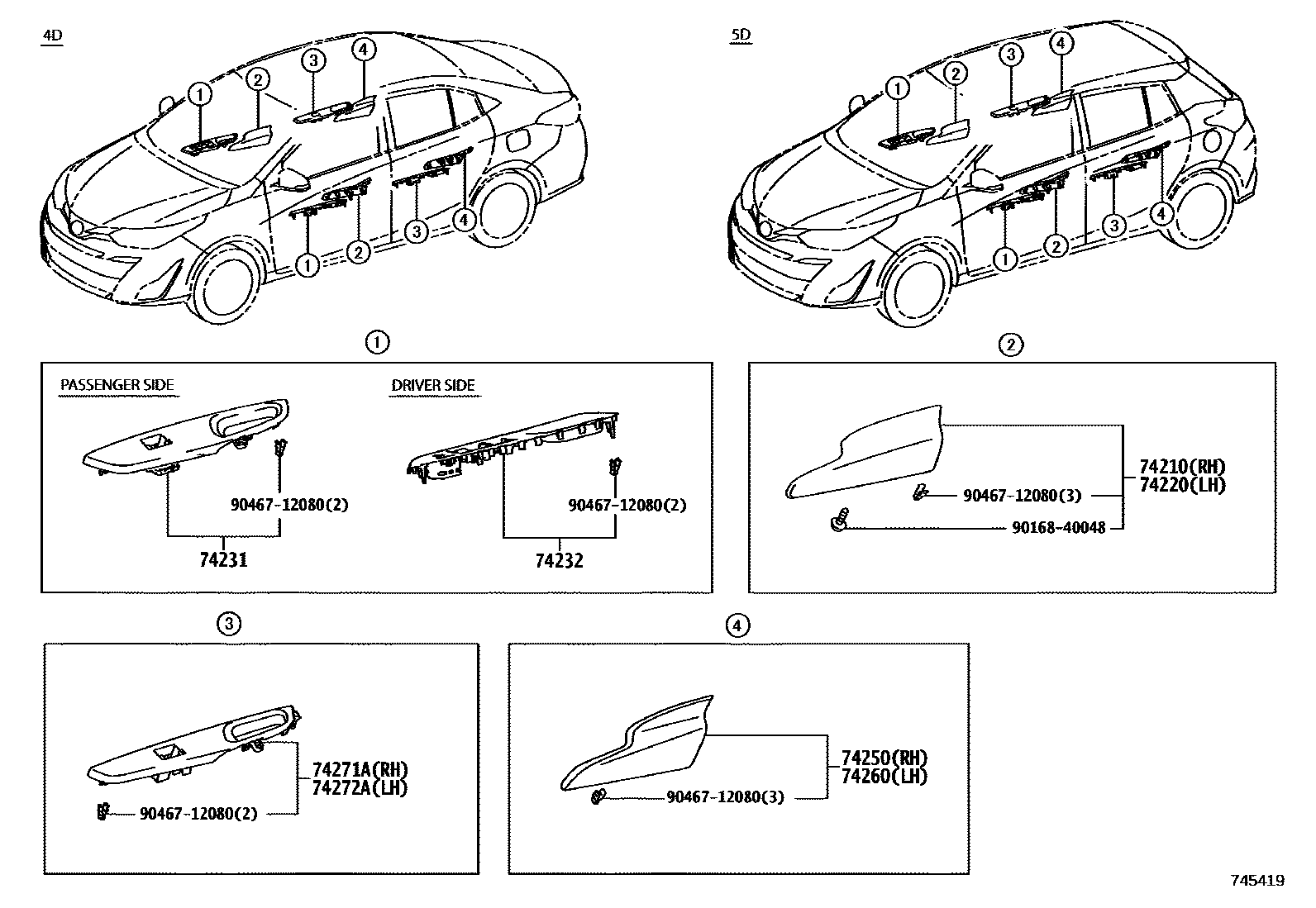

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-0D081-A0i202101-202306

IVORY/CAMEL,TRIM0#

main74210-0D081-C0i202101-202306

BLACK/RED,TRIM2#

main74210-0D081-C2i202101-202306

BLACK/BLUE,TRIM2#

main74210-0D081-C3i202101-202407

BLACK/LT.GRAY,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-0D081-A0i202101-202306

IVORY/CAMEL,TRIM0#

main74220-0D081-C0i202101-202306

BLACK/RED,TRIM2#

main74220-0D081-C2i202101-202306

BLACK/BLUE,TRIM2#

main74220-0D081-C3i202101-202407

BLACK/LT.GRAY,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0DB00i202101

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0DB41i202101-202407

main74232-0DB50i202101

74250ARMREST ASSY, REAR RH

main74250-0D050-A0i202101-202306

IVORY,TRIM0#

main74250-0D050-C0i202101-202306

BLACK,TRIM2#

main74250-0D061-A0i202101-202306

IVORY/CAMEL,TRIM0#

main74250-0D061-C0i202101-202306

BLACK/RED,TRIM2#

main74250-0D061-C2i202101-202306

BLACK/BLUE,TRIM2#

main74250-0D061-C3i202101

BLACK/LT.GRAY,TRIM2#

74260ARMREST ASSY, REAR LH

main74260-0D050-A0i202101-202306

IVORY,TRIM0#

main74260-0D050-C0i202101-202407

BLACK,TRIM2#

main74260-0D061-A0i202101-202306

IVORY/CAMEL,TRIM0#

main74260-0D061-C0i202101-202306

BLACK/RED,TRIM2#

main74260-0D061-C2i202101-202306

BLACK/BLUE,TRIM2#

main74260-0D061-C3i202101

BLACK/LT.GRAY,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0D550i202101-202407

main74271-0D560i202101-202306

G-HI PACKAGE,WITH(*CUSA)

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0D550i202101-202306

main74272-0D560i202101-202306

G-HI PACKAGE,WITH(*CUSA)

9016840048

main90168-40048

9046712080

main90467-12080

10 parts on this diagram · 2 diagrams in section
