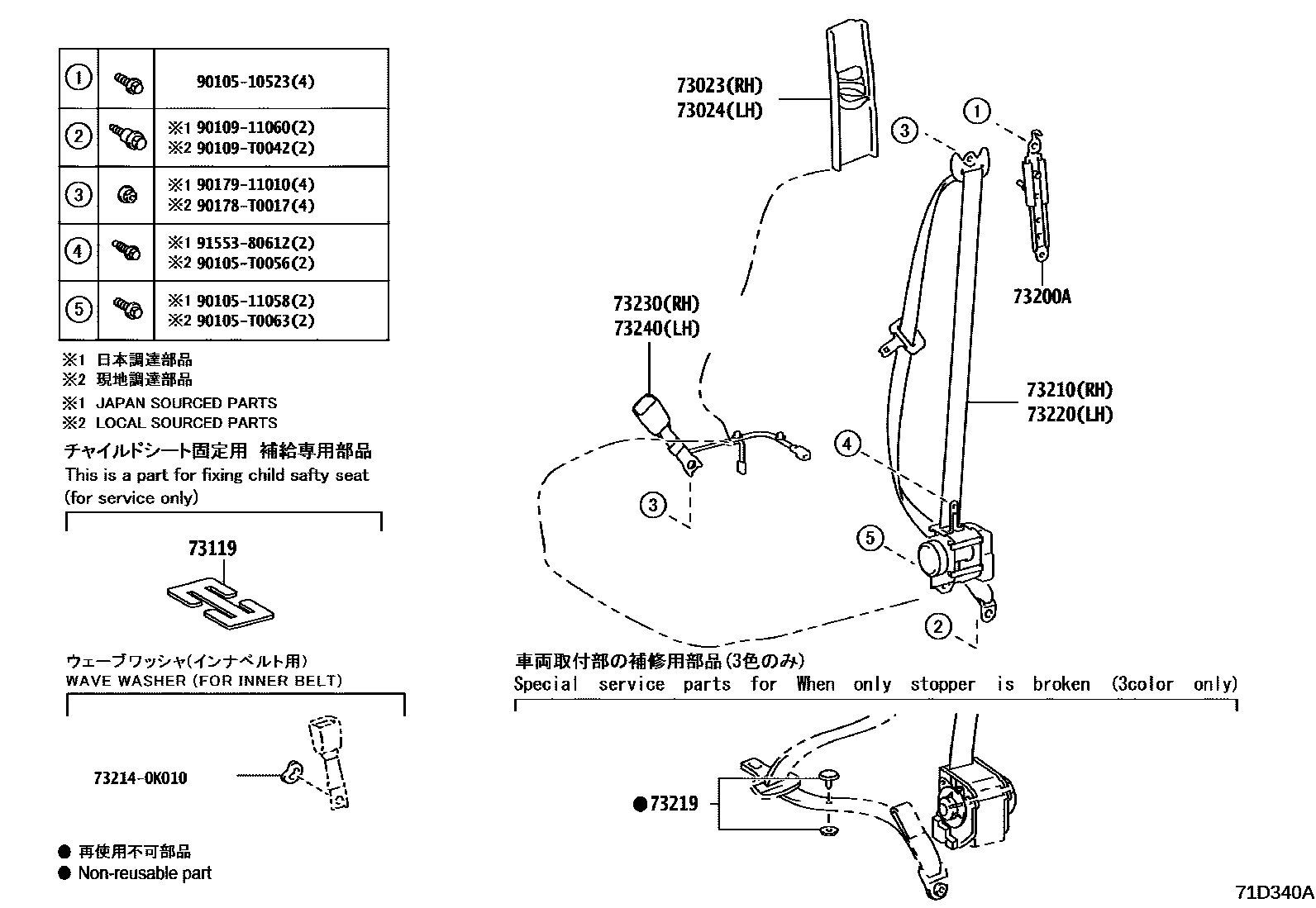

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT 0003 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06090-B0iNSP151..4D..(R,V)202101

GRAY,TRIM2#

main73023-06090-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06120-B0iNSP151..D202101-202407

GRAY,TRIM2#

main73024-06120-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNSP151..5D202101-202306

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02130×2iNSP151..5D202101-202306

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D550-C0iNSP151..D202101-202407

BLACK/GRAY,TRIM2#

main73210-0D550-C1iNSP151..5D..V202101-202306

BLACK/BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iNSP151..4D..(R,V)202101

BLACK

main73219-33020iNSP151..D202101-202407

GRAY

main73219-33030iNSP151..5D202101-202306

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D540-C0iNSP151..4D..(R,V)202101

BLACK/GRAY,TRIM2#

main73220-0D540-C1iNSP151..5D..V202101-202306

BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0DA50-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D480-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

9010510523

main90105-10523

9010511058

main90105-11058

90105T0056

main90105-T0056

90105T0063

main90105-T0063

9010911060

main90109-11060

90109T0042

main90109-T0042

90178T0017

main90178-T0017

9017911010

main90179-11010

9155380612

main91553-80612

19 parts on this diagram · 3 diagrams in section
