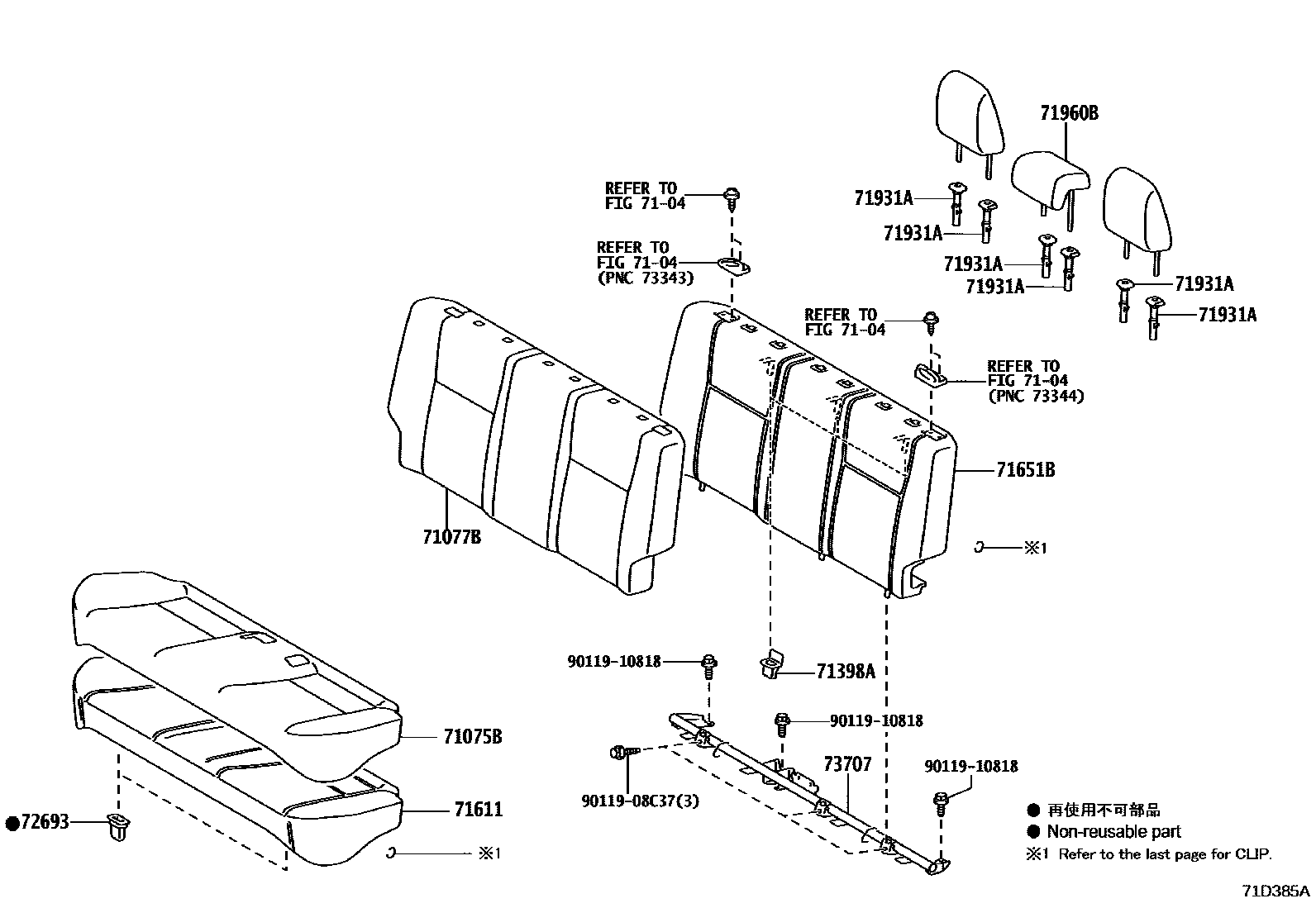

REAR SEAT & SEAT TRACK

0001 1FIXED SEAT 0002 1UNITED FOLDING SEAT 0003 16:4 SPLIT SEAT 0004 1CLIP

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0DR50-C3iNSP151..D202101-202407

BLACK,TRIM2#

main71075-0DR70-A3iNSP151..5D..(G,R)202101-202306

IVORY,TRIM0#

main71075-0DR70-C3iNSP151..5D202101-202306

BLACK,TRIM2#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0UE70-C1iNSP151..4D..(R,V)202101

BLACK,TRIM2#

main71077-0UE90-A1iNSP151..5D..R202101-202306

IVORY,TRIM0#

main71077-0UE90-C1iNSP151..5D..R202101-202306

BLACK,TRIM2#

71398AHOLDER, REAR SEATBACK

main71398-02040×3iNSP151..D202101-202407

71611PAD, REAR SEAT CUSHION

main71503-0D530iNSP151..4D..(R,V)202101

main71503-0D540iNSP151..5D202101-202306

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-0D770iNSP151..D202101-202407

main71651-0D870iNSP151..5D..R202101-202306

71931ASUPPORT, REAR SEAT HEADREST

main71930-02370-A4×3iNSP151..5D..(G,R)202101-202306

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-02370-C1×3iNSP151..D202101-202407

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-02130-A4×3iNSP151..5D..(G,R)202101-202306

W/O(LOCK),IVORY,TRIM0#

main71931-02130-C1×3iNSP151..D202101-202407

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0DA30-A1iNSP151..5D..R202101-202306

IVORY,TRIM0#

main71960-0DA30-C1iNSP151..4D..(R,V)202101

BLACK,TRIM2#

main71960-0DA70-A1iNSP151..G202101-202306

IVORY,TRIM0#

main71960-0DA70-C1iNSP151..5D..(G,V)202101-202306

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNSP151..5D202101-202306

73707BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

main73705-0D530iNSP151..D202101-202407

main73705-0D540iNSP151..5D..(G,V)202101-202306

main73705-0D550iNSP151..5D..R202101-202306

9011908C37

main90119-08C37

9011910818

main90119-10818

12 parts on this diagram · 4 diagrams in section
