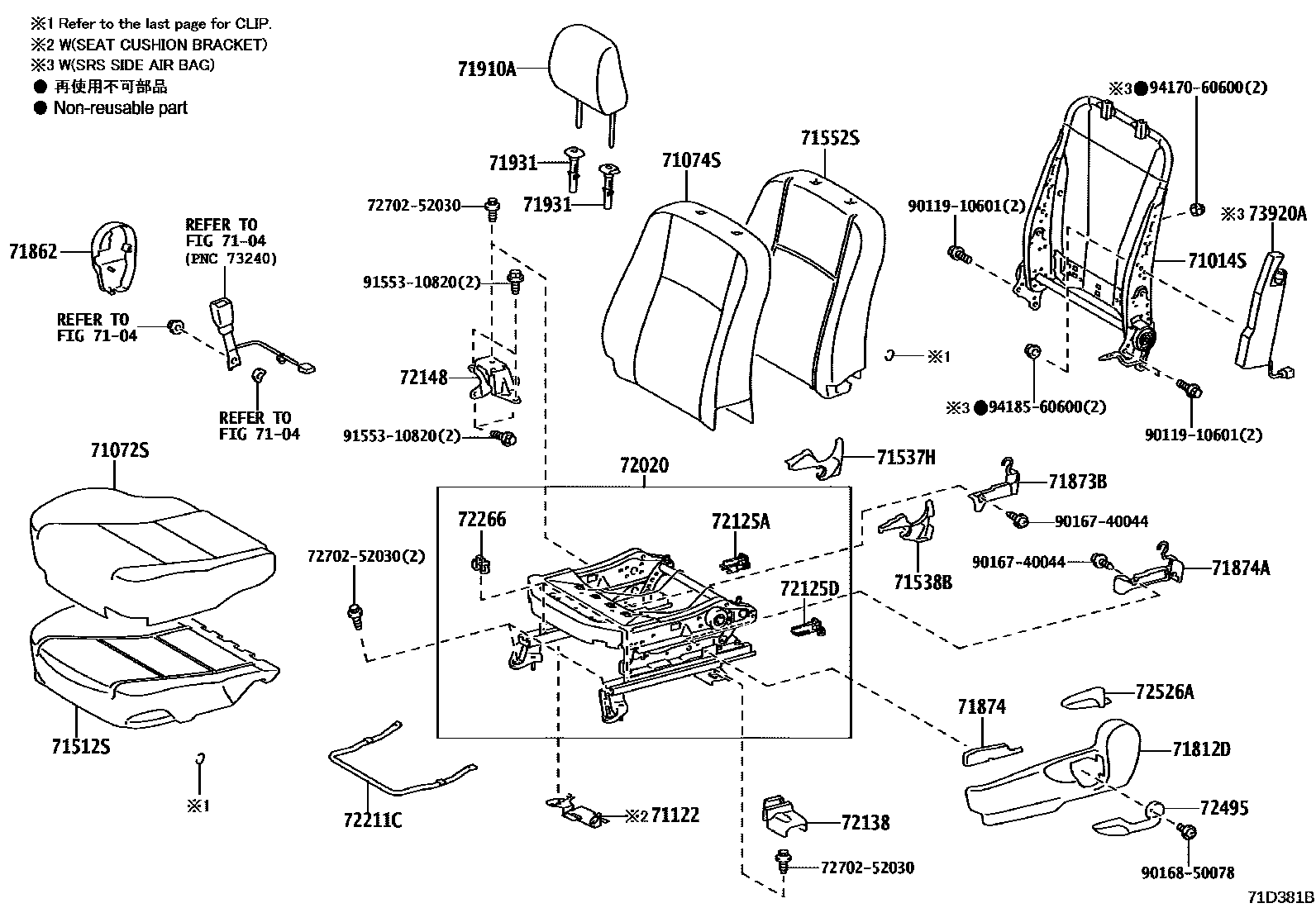

FRONT SEAT & SEAT TRACK

0001 1LH SEAT 0002 1RH SEAT 0003 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-0D300iNSP151..4D..(R,V)202101

main71014-0D110iNSP151..D;NSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER)

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0UG30-C0iNSP151..5D202101-202306

BLACK,TRIM2#

main71072-0DF20-A2supersedes 71072-0UG30-A2iNSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71072-0DF20-C1iNSP151..D;NSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0UJ50-C0iNSP151..5D202101-202306

BLACK,TRIM2#

main71074-0UN20-A0supersedes 71074-0UJ50-A1iNSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#

main71074-0UN20-C0iNSP151..D;NSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

71122BRACKET, FRONT SEAT CUSHION, LH

main71122-0D050iNSP151..5D202101-202306

main71122-0D150iNSP151..D;NSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0D680iNSP151..5D202101-202306

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0D170-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0D160-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0D680iNSP151..5D202101-202306

main71552-0D280iNSP151..D;NSP151..5D..(G,R)202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER)

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D520-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main71812-0D310-C0supersedes 71812-0D520-C0iNSP151..D202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D340-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main71862-0D280-C0supersedes 71862-0D340-C0iNSP151..D202101-202306

SRS AIR BAG-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-06460iNSP151..4D..(R,V)202101

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D350iNSP151..5D202101-202306

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06450iNSP151..5D202101-202306

71910AHEADREST ASSY, FRONT SEAT

main71910-0DB30-A1×2iNSP151..5D..(G,R)202101-202306

IVORY,TRIM0#

main71910-0DB30-C1×2iNSP151..5D202101-202306

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02370-A4×2iNSP151..5D..(G,R)202101-202306

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-02370-C1×2iNSP151..5D202101-202306

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-02130-A4×2iNSP151..5D..(G,R)202101-202306

W/O(LOCK),IVORY,TRIM0#

main71931-02130-C1×2iNSP151..D202101-202407

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0D501iNSP151..5D202101-202306

72125ACOVER, SEAT TRACK, UPPER REAR

main72265-0D070×2iNSP151..5D202101-202306

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72265-0D060×2iNSP151..5D202101-202306

72138COVER, SEAT TRACK, OUTER LH

main72138-0D120-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-0D120iNSP151..5D202101-202306

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0D300iNSP151..5D202101-202306

72266COVER, SEAT TRACK UPPER RAIL, LH

main71848-0D150×2iNSP151..5D202101-202306

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D050-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0M010-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0D100iNSP151..5D202101-202306

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9155310820

main91553-10820

9417060600

main94170-60600

9418560600

main94185-60600

33 parts on this diagram · 3 diagrams in section
