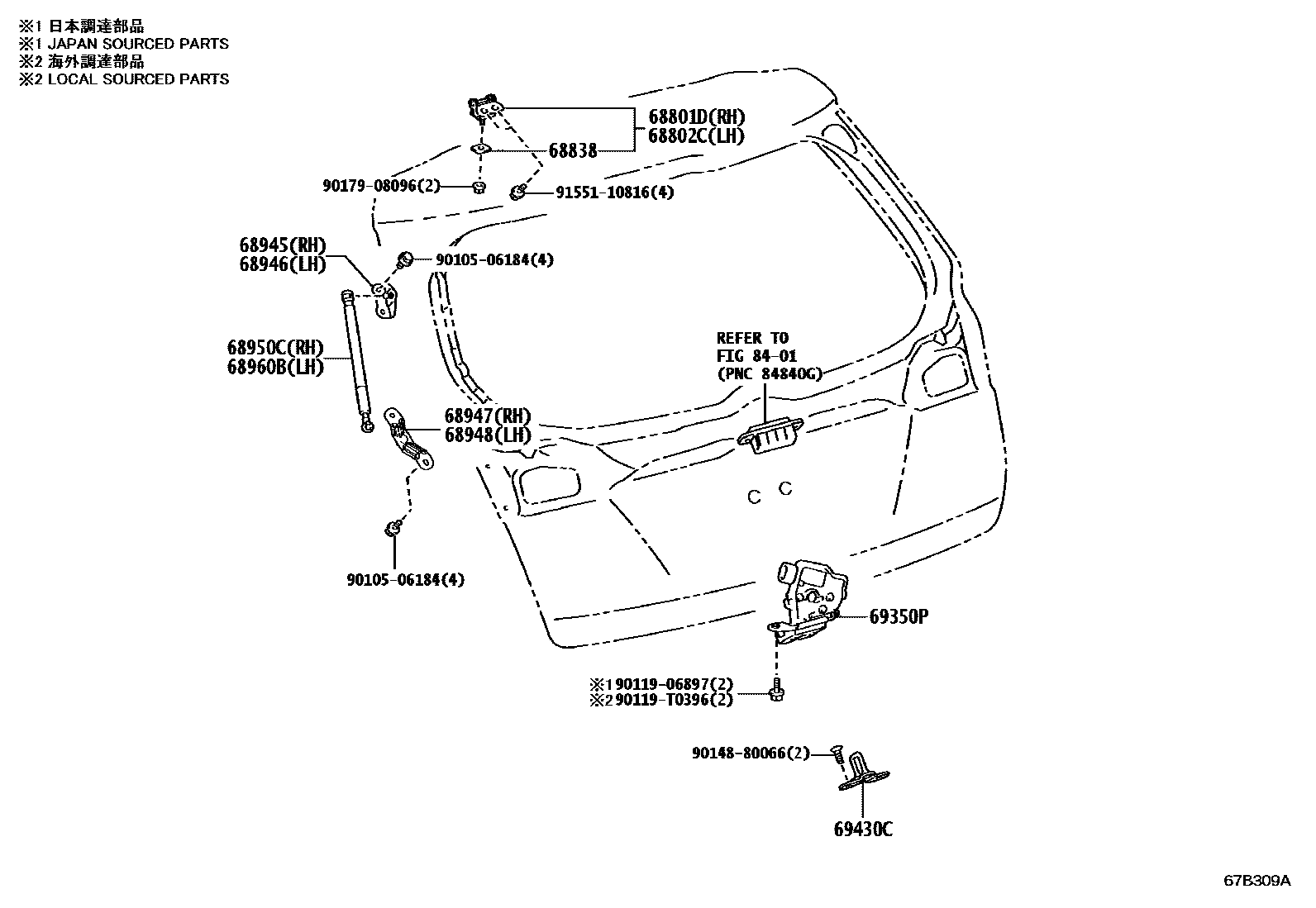

Toyota VIOS/YARIS 14H — BACK DOOR LOCK & HANDLE
68801DHINGE SUB-ASSY, BACK DOOR, RH
68802CHINGE SUB-ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
9010506184
9011906897
90119T0396
9014880066
9017908096
9155110816
18 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota VIOS/YARIS 14H
This section contains 18 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota VIOS/YARIS 14H. Key components include: HINGE SUB-ASSY, BACK DOOR, RH, HINGE SUB-ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH.
