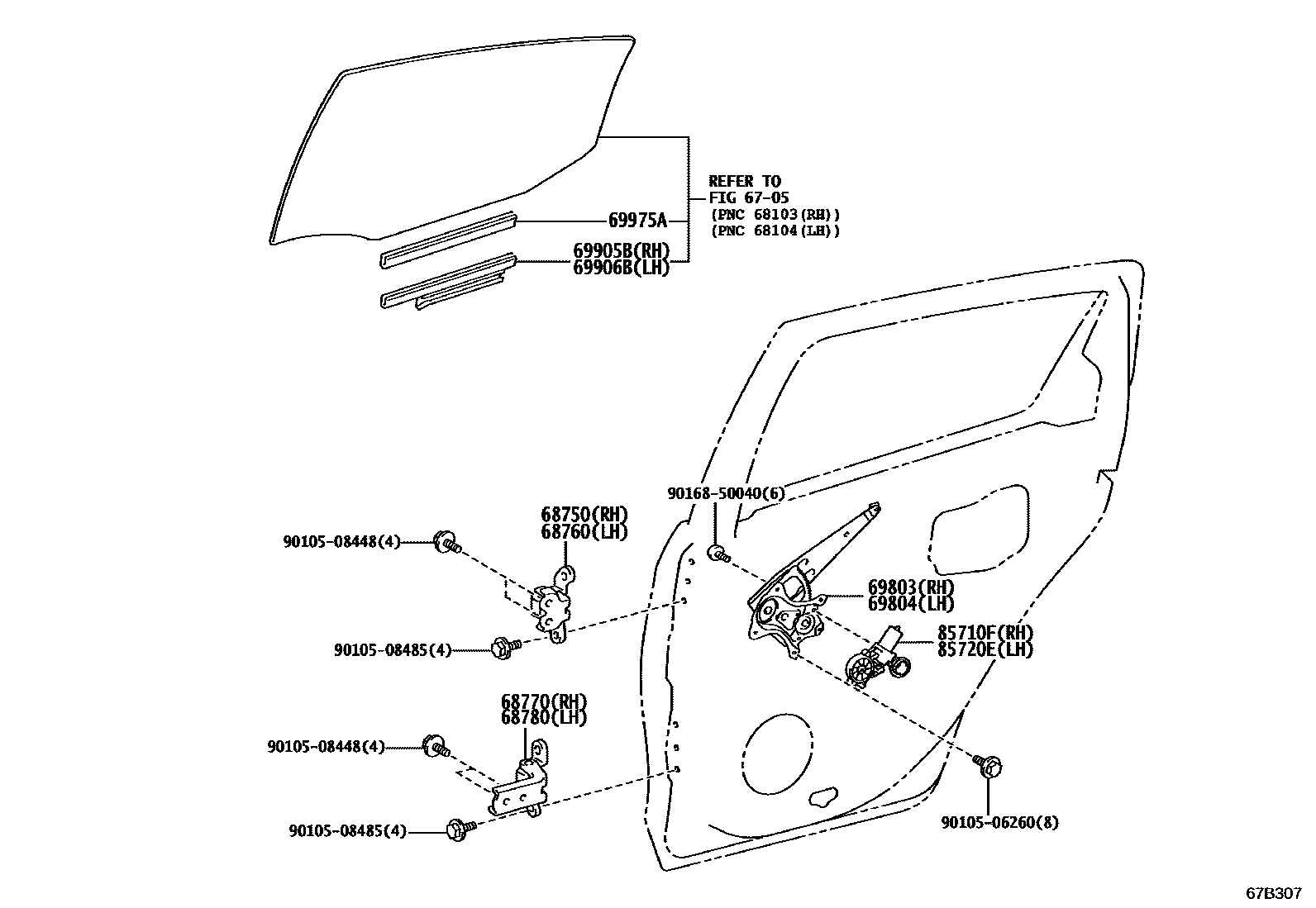

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iNSP151..5D202101-202407

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iNSP151..5D202101-202407

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D030iNSP151..5D202101-202407

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D030iNSP151..5D202101-202407

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D240iNSP151..5D202101-202407

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D240iNSP151..5D202101-202407

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D130iNSP151..5D202101-202407

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D130iNSP151..5D202101-202407

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D130iNSP151..5D202101-202407

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D531iNSP151..5D202101-202407

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D530iNSP151..5D202101-202407

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
