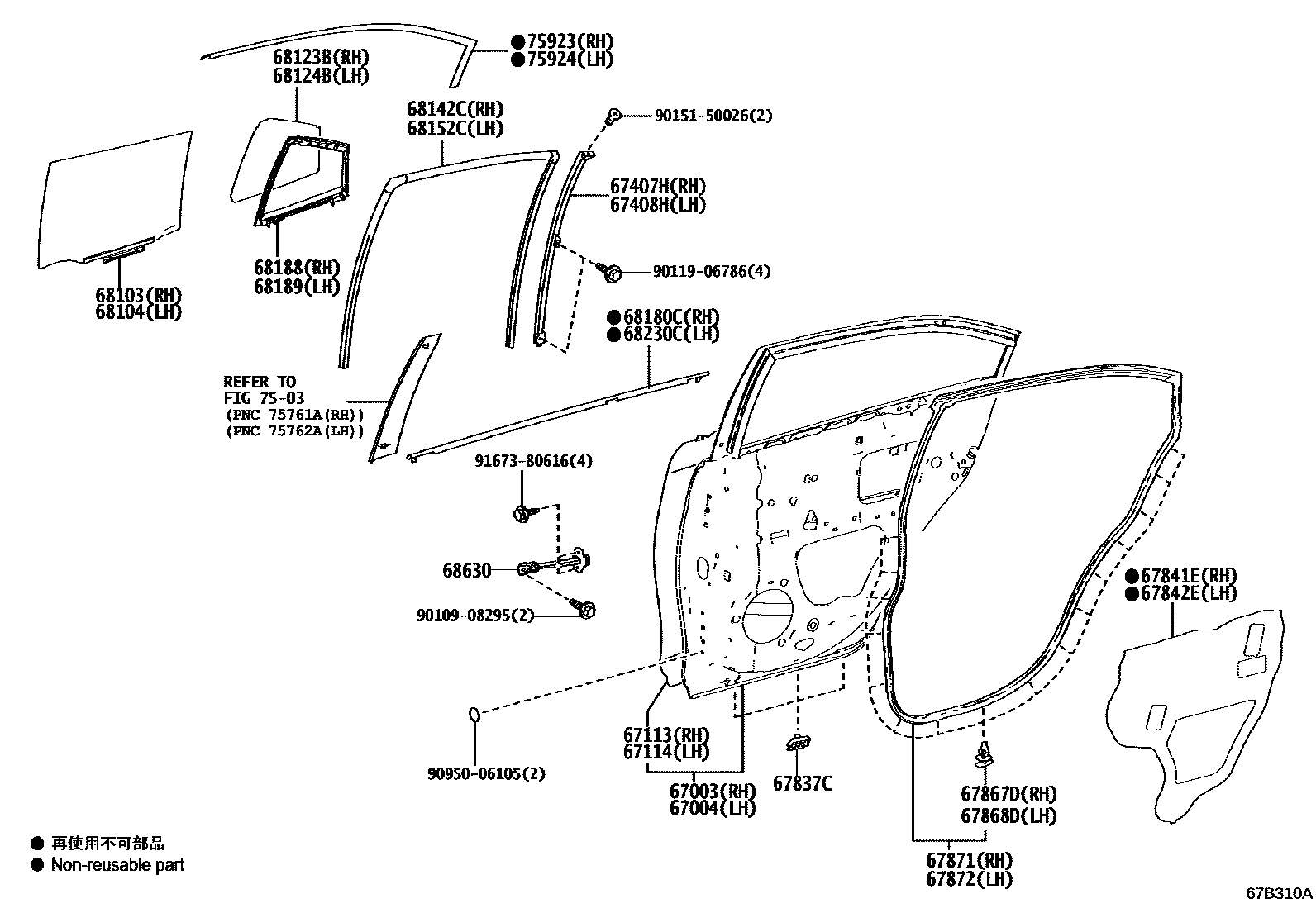

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D440iNSP151..5D202101-202306

main67003-0D490iNSP151..4D..(R,V)202101

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D440iNSP151..5D202101-202306

main67004-0D490iNSP151..D202101-202407

67113PANEL, REAR DOOR, OUTER RH

main67113-K0030iNSP151..5D202101-202306

67114PANEL, REAR DOOR, OUTER LH

main67114-K0030iNSP151..5D202101-202306

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-0D290iNSP151..D202101-202407

main67407-0D340iNSP151..5D202101-202306

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-0D290iNSP151..D202101-202407

main67408-0D340iNSP151..5D202101-202306

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K090×6iNSP151..5D..R202101-202306

(L)

main67837-48050×6iNSP151..5D..R202101-202306

(J)

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D461iNSP151..4D..(R,V)202101

main67841-0D470iNSP151..D202101-202407

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0D461iNSP151..5D..(G,V)202101-202306

main67842-0D470iNSP151..5D..R202101-202306

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×16iNSP151..D202101-202407

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×16iNSP151..5D202101-202306

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D270iNSP151..D202101-202407

main67871-0D320iNSP151..5D202101-202306

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D270iNSP151..D202101-202407

main67872-0D320iNSP151..5D202101-202306

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0D490iNSP151..D202101-202407

main68130-0D550iNSP151..5D202101-202306

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0D490iNSP151..D202101-202407

main68140-0D550iNSP151..5D202101-202306

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0D350iNSP151..D202101-202407

main68123-0D410iNSP151..5D202101-202306

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0D350iNSP151..4D..(R,V)202101

main68124-0D410iNSP151..5D202101-202306

68142CRUN, REAR DOOR GLASS, RH

main68142-0D310iNSP151..D202101-202407

main68142-0D380iNSP151..5D202101-202306

68152CRUN, REAR DOOR GLASS, LH

main68152-0D270iNSP151..4D..(R,V)202101

main68152-0D340iNSP151..5D202101-202306

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D451iNSP151..5D202101-202306

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0D260iNSP151..D202101-202407

main68188-0D320iNSP151..5D202101-202306

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0D260iNSP151..D202101-202407

main68189-0D320iNSP151..5D202101-202306

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D451iNSP151..5D202101-202306

68630CHECK ASSY, REAR DOOR

main68630-0D200×2iNSP151..5D202101-202306

7503

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D310iNSP151..D202101-202407

main75923-0D360iNSP151..5D202101-202306

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D310iNSP151..4D..(R,V)202101

main75924-0D360iNSP151..5D202101-202306

9010908295

main90109-08295

9011906786

main90119-06786

9015150026

main90151-50026

9095006105

main90950-06105

9167380616

main91673-80616

32 parts on this diagram · 3 diagrams in section
