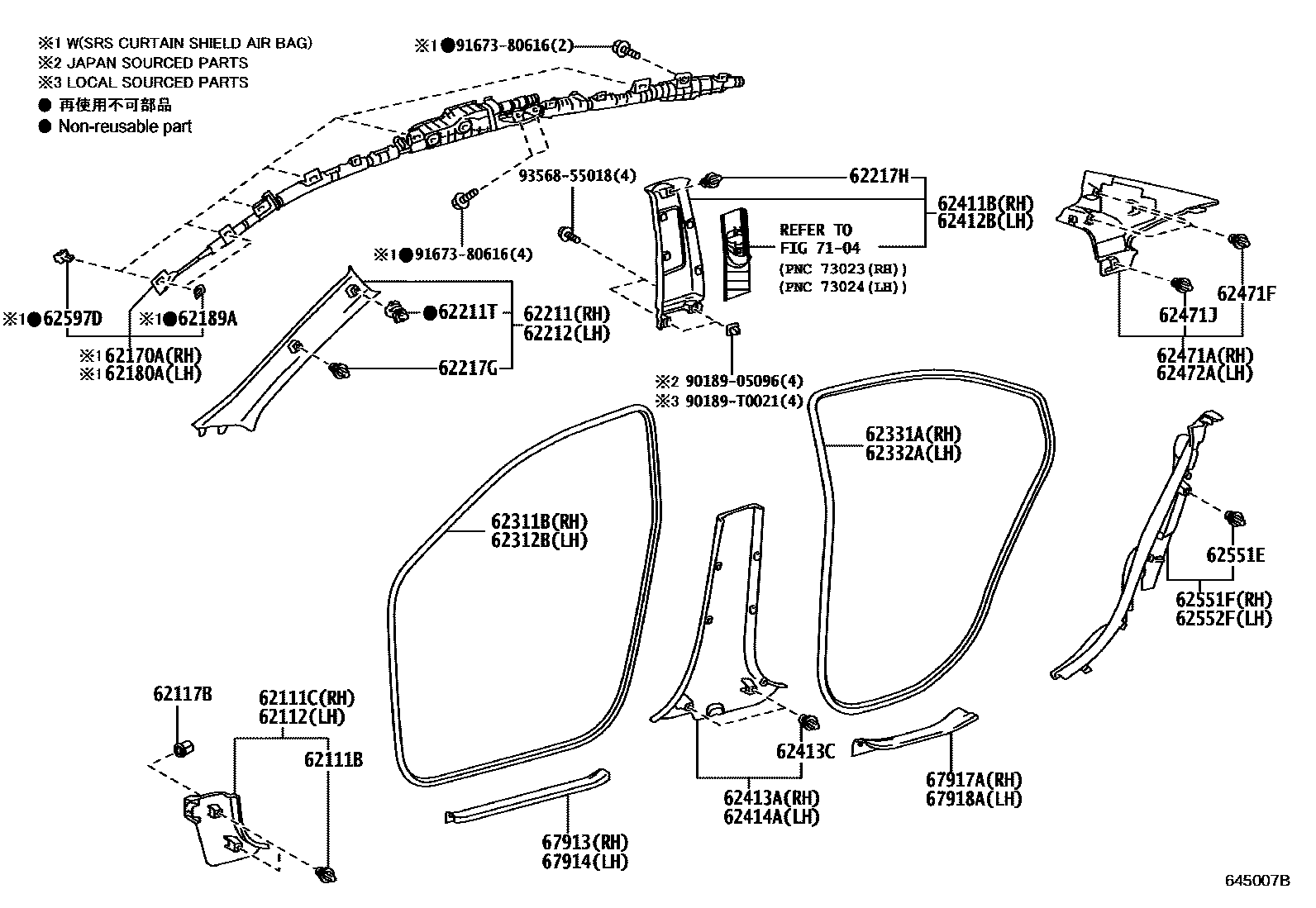

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNSP151..5D202101-202407

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D270-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

main62111-0D270-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D310-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main62112-0D310-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNSP151..4D..(R,V)202101-202407

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0D080iNSP151..4D..(R,V)202101-202407

main62170-0D090iNSP151..5D202101-202306

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0D080iNSP151..4D..(R,V)202101-202407

main62180-0D090iNSP151..5D202101-202306

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iNSP151..5D202101-202407

62211GARNISH, FRONT PILLAR, RH

main62211-0D830-B0iNSP151..D202101-202407

GRAY,TRIM2#

main62211-0D840-B0iNSP151..4D..(R,V)202101

GRAY,TRIM2#

main62211-0D840-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main62211-0D840-C0iNSP151..5D..V202101-202306

BLACK,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52120iNSP151..5D202101-202407

62212GARNISH, FRONT PILLAR, LH

main62212-0D830-B0iNSP151..D202101-202407

GRAY,TRIM2#

main62212-0D840-B0iNSP151..4D..(R,V)202101

GRAY,TRIM2#

main62212-0D840-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM2#

main62212-0D840-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

62217GCLIP, FRONT PILLAR GARNISH

main90467-T0021iNSP151..4D..(R,V)202101-202407

62217HCLIP, CENTER PILLER GARNISH

main90467-10188iNSP151..4D..(R,V)202101-202407

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D330iNSP151..5D202101-202407

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D300iNSP151..5D202101-202407

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D250iNSP151..D202101-202407

main62331-0D360iNSP151..5D202101-202306

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D230iNSP151..D202101-202407

main62332-0D360iNSP151..5D202101-202306

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-0D030-B0iNSP151..4D..(R,V)202101-202407

GRAY,TRIM2#

main62410-0D030-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main62410-0D030-C0iNSP151..5D..V202101-202306

BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-0D030-B0iNSP151..D202101-202407

GRAY,TRIM2#

main62420-0D030-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM2#

main62420-0D030-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM0#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D380-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main62413-0D380-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iNSP151..5D202101-202407

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D380-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

main62414-0D380-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D710-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM2#

main62471-0D710-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM0#,2#

main62471-0D880-B0iNSP151..4D..(R,V)202101

GRAY,TRIM2#

main62471-0DC80-B0iNSP151..D202101-202407

GRAY,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10161iNSP151..4D..(R,V)202101-202407

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNSP151..5D202101-202306

main90467-10167iNSP151..D202101-202407

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D880-B0iNSP151..4D..(R,V)202101

GRAY,TRIM2#

main62472-0DA90-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

main62472-0DA90-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM2#

main62472-0DD40-B0iNSP151..D202101-202407

GRAY,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10188iNSP151..5D202101-202407

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0D380-C0iNSP151..D202101-202407

BLACK,TRIM2#

main62551-0D470-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM2#

main62551-0D470-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM0#,2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0D380-C0iNSP151..D202101-202407

BLACK,TRIM2#

main62552-0D450-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM2#

main62552-0D450-C0iNSP151..5D..(G,R)202101-202306

BLACK,TRIM0#,2#

62597DCLIP

main90467-18017iNSP151..5D202101-202407

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D260-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

main67913-0D260-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D250-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

main67914-0D250-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D190-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

main67917-0D190-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D190-C0iNSP151..5D..V202101-202407

BLACK,TRIM2#

main67918-0D190-C0iNSP151..5D..V202101-202306

BLACK,TRIM0#,2#

7104

9018905096

main90189-05096

90189T0021

main90189-T0021

9167380616

main91673-80616

9356855018

main93568-55018

38 parts on this diagram · 2 diagrams in section
