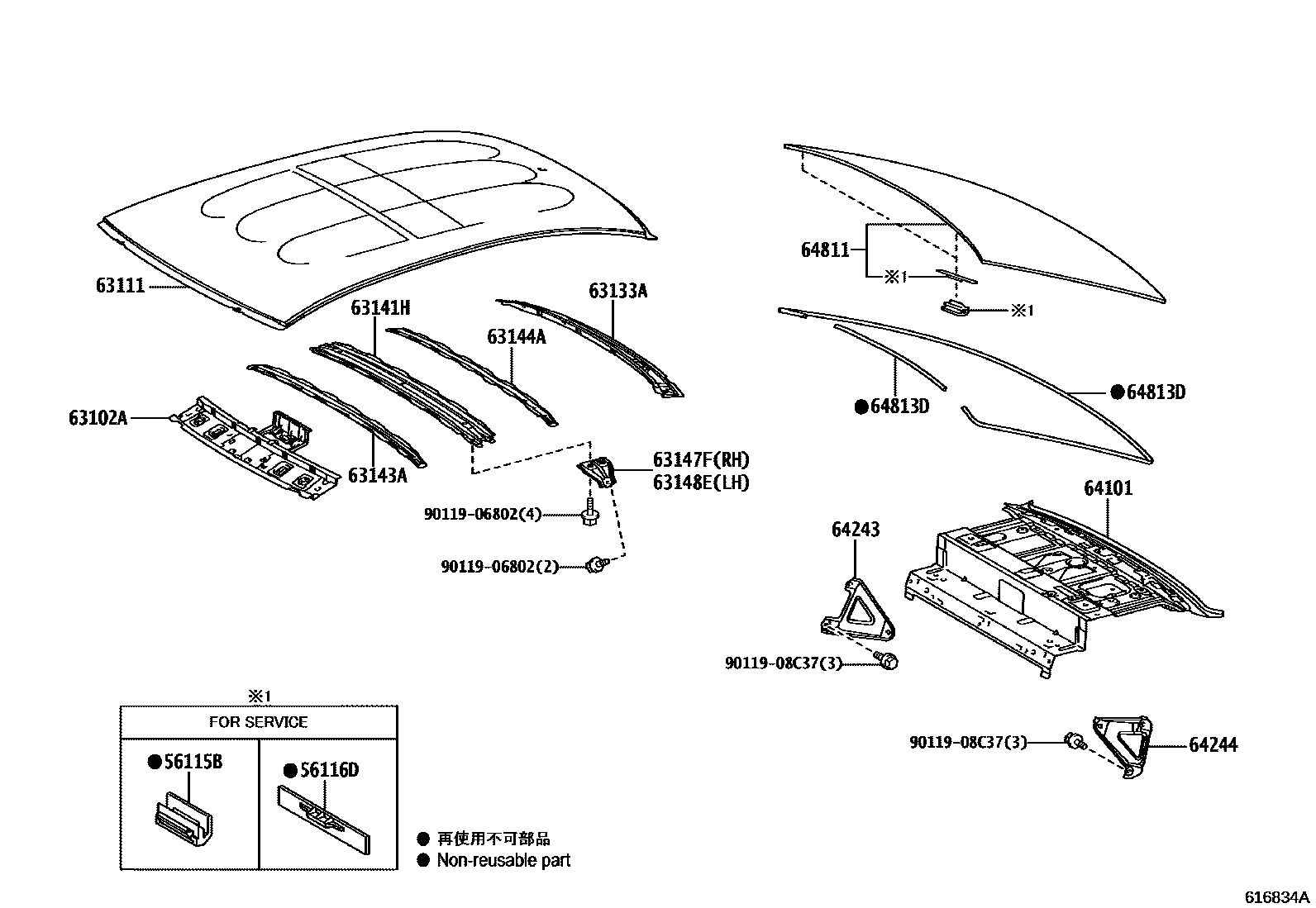

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100iNSP151..D202101-202407

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iNSP151..D202101-202407

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0D140iNSP151..5D202101-202306

63111PANEL, ROOF

main63111-K0090iNSP151..D202101-202407

main63111-K0130iNSP151..5D202101-202306

63133AFRAME, BACK WINDOW, UPPER

main63133-0D150iNSP151..D202101-202407

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-0D161iNSP151..D202101-202407

63143AREINFORCEMENT, ROOF PANEL

main63143-0D140iNSP151..5D202101-202306

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0D120iNSP151..4D..(R,V)202101

main63144-0D130iNSP151..5D202101-202306

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-0D100iNSP151..D202101-202407

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-0D100iNSP151..5D202101-202306

64101PANEL SUB-ASSY, UPPER BACK

main64101-0D290iNSP151..4D..(R,V)202101

64243PANEL, ROOM PARTITION, NO.2 RH

main64243-0D020iNSP151..4D..(R,V)202101

64244PANEL, ROOM PARTITION, NO.2 LH

main64244-0D020iNSP151..D202101-202407

64811GLASS, BACK WINDOW

main64801-0D280iNSP151..4D..(R,V)202101

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-0D490iNSP151..D202101-202407

L=2631

main64814-0D260iNSP151..D202101-202407

L=574

9011906802

main90119-06802

9011908C37

main90119-08C37

17 parts on this diagram · 2 diagrams in section
