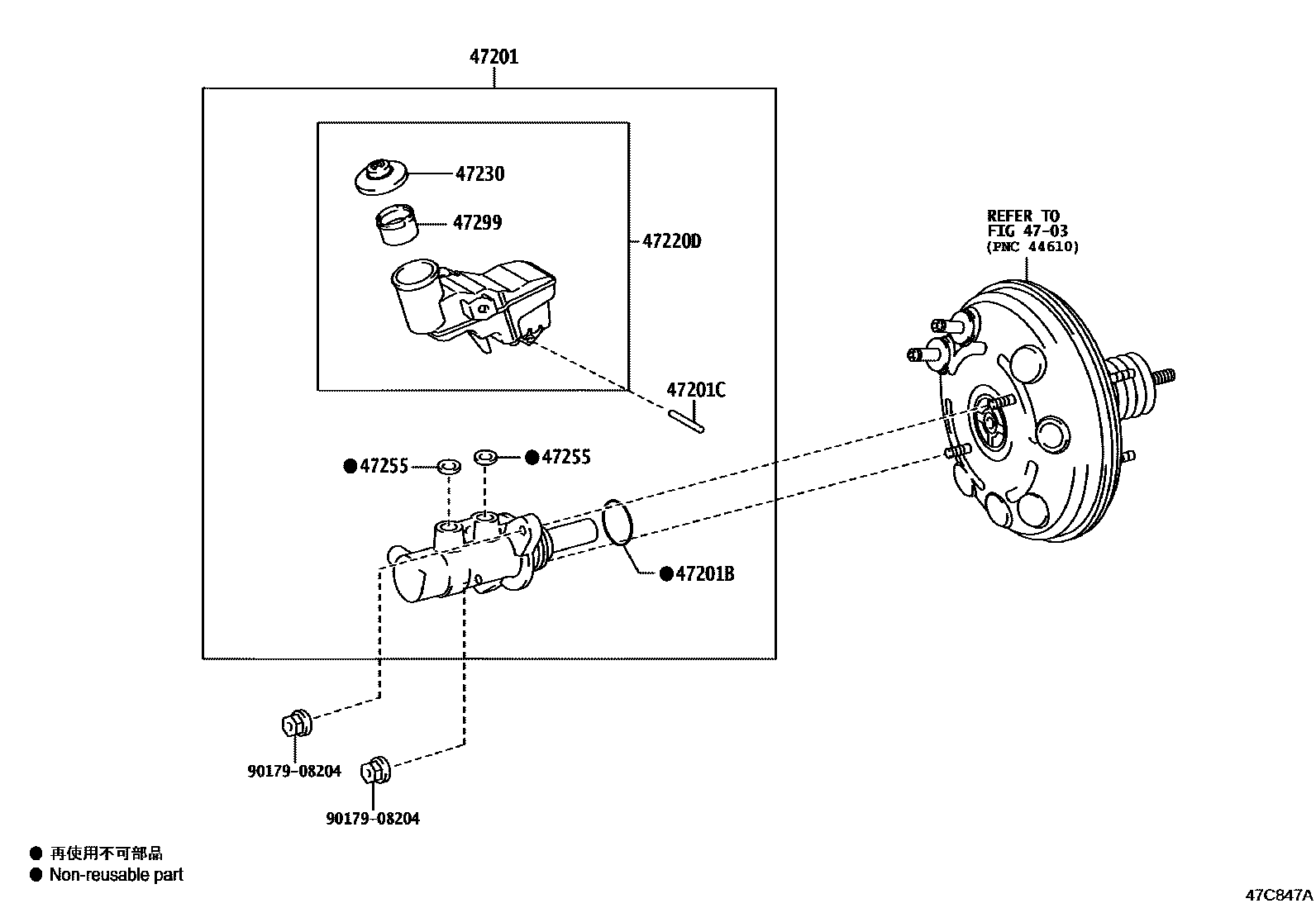

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0DA50iNSP151..5D..(G,R)202101-202407

main47201-0DA60iNSP151..5D..V202101-202306

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNSP151..D202101-202407

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP151..5D202101-202407

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D470iNSP151..D202101-202407

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D440iNSP151202101-202203

main47230-12040iNSP151..5D202203-202407

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNSP151..5D202101-202407

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNSP151..5D202101-202407

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
