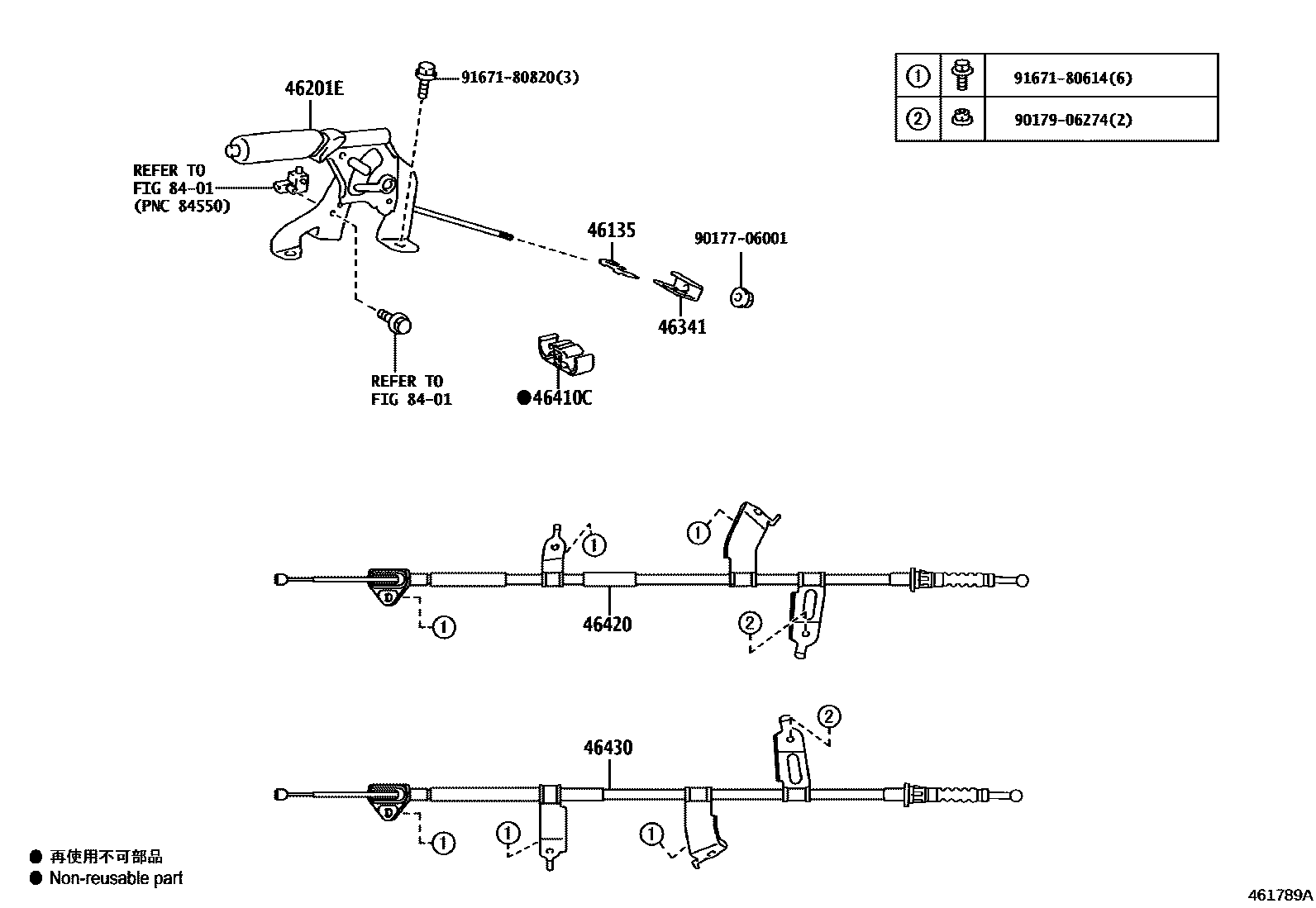

PARKING BRAKE & CABLE

0001 1REAR DISC BRAKE 0002 1REAR DRUM BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D040iNSP151..5D202101-202306

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D360-C0iNSP151..4D..R202101

BLACK,TRIM0#,2#

main46201-0D380-C0iNSP151..5D..V202101-202306

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0D080iNSP151..5D202101-202306

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D030iNSP151..D202101-202407

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D290iNSP151..D202101-202407

main46420-0D300iNSP151..5D..V202101-202306

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D290iNSP151..4D..(R,V)202101

main46430-0D300iNSP151..5D..V202101-202306

8401

9017706001

main90177-06001

9017906274

main90179-06274

9167180614

main91671-80614

9167180820

main91671-80820

11 parts on this diagram · 2 diagrams in section
