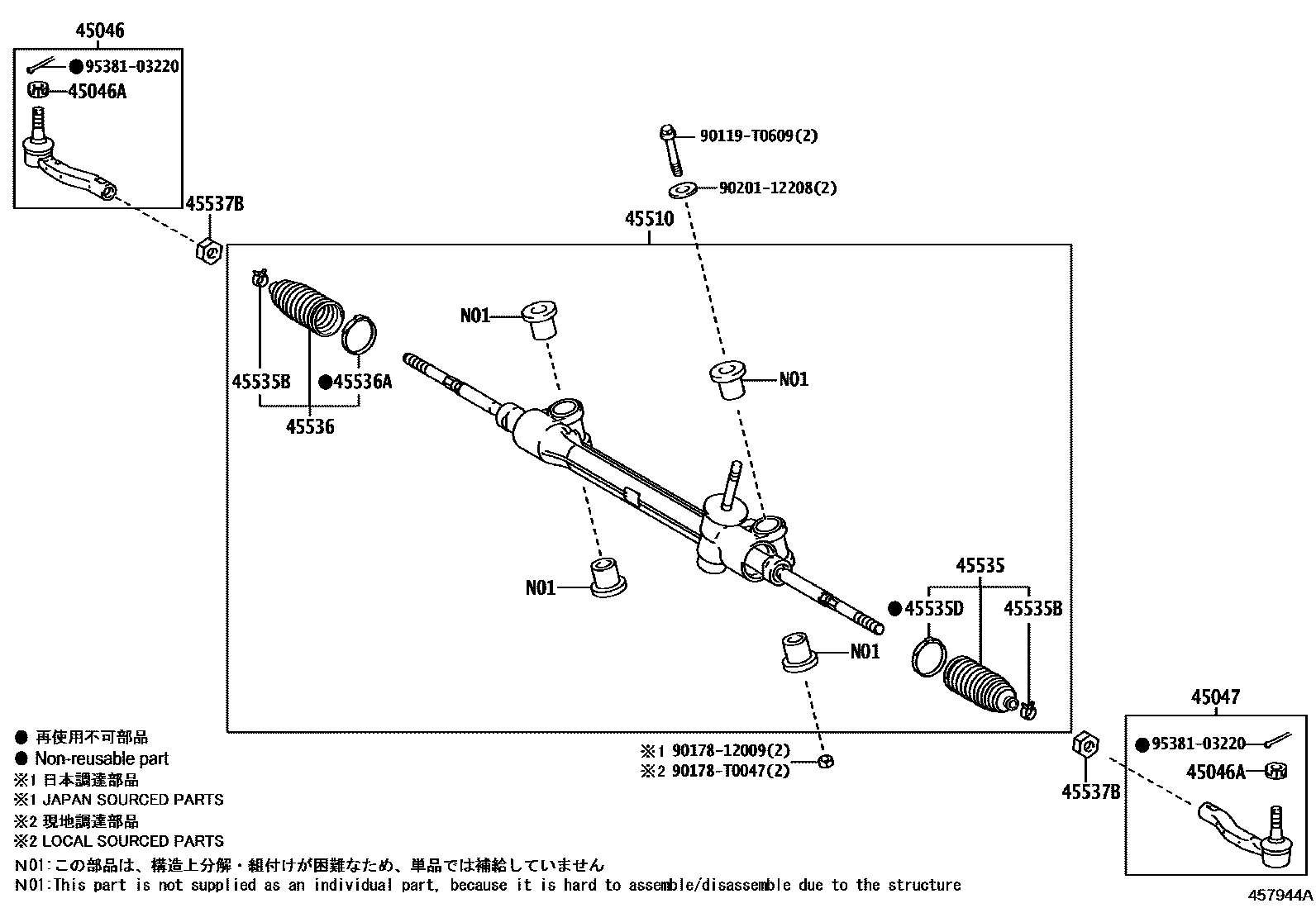

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09720iNSP151..5D202101-202306

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNSP151..4D..(R,V)202101

(J)

main90171-T0004×2iNSP151..D202101-202407

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-09370iNSP151..5D202101-202306

45510GEAR ASSY, STEERING

main45510-0D470iNSP151..5D202101-202306

45535BOOT, STEERING RACK, NO.1

main45535-09360iNSP151..D202101-202407

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D100×2iNSP151..5D202101-202306

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D110iNSP151..5D202101-202306

45536BOOT, STEERING RACK, NO.2

main45535-09360iNSP151..5D202101-202306

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D110iNSP151..5D202101-202306

45537BNUT, RACK END LOCK

main90170-14012×2iNSP151..5D202101-202306

90119T0609

main90119-T0609

9017812009

main90178-12009

90178T0047

main90178-T0047

9020112208

main90201-12208

9538103220

main95381-03220

15 parts on this diagram · 1 diagram in section
