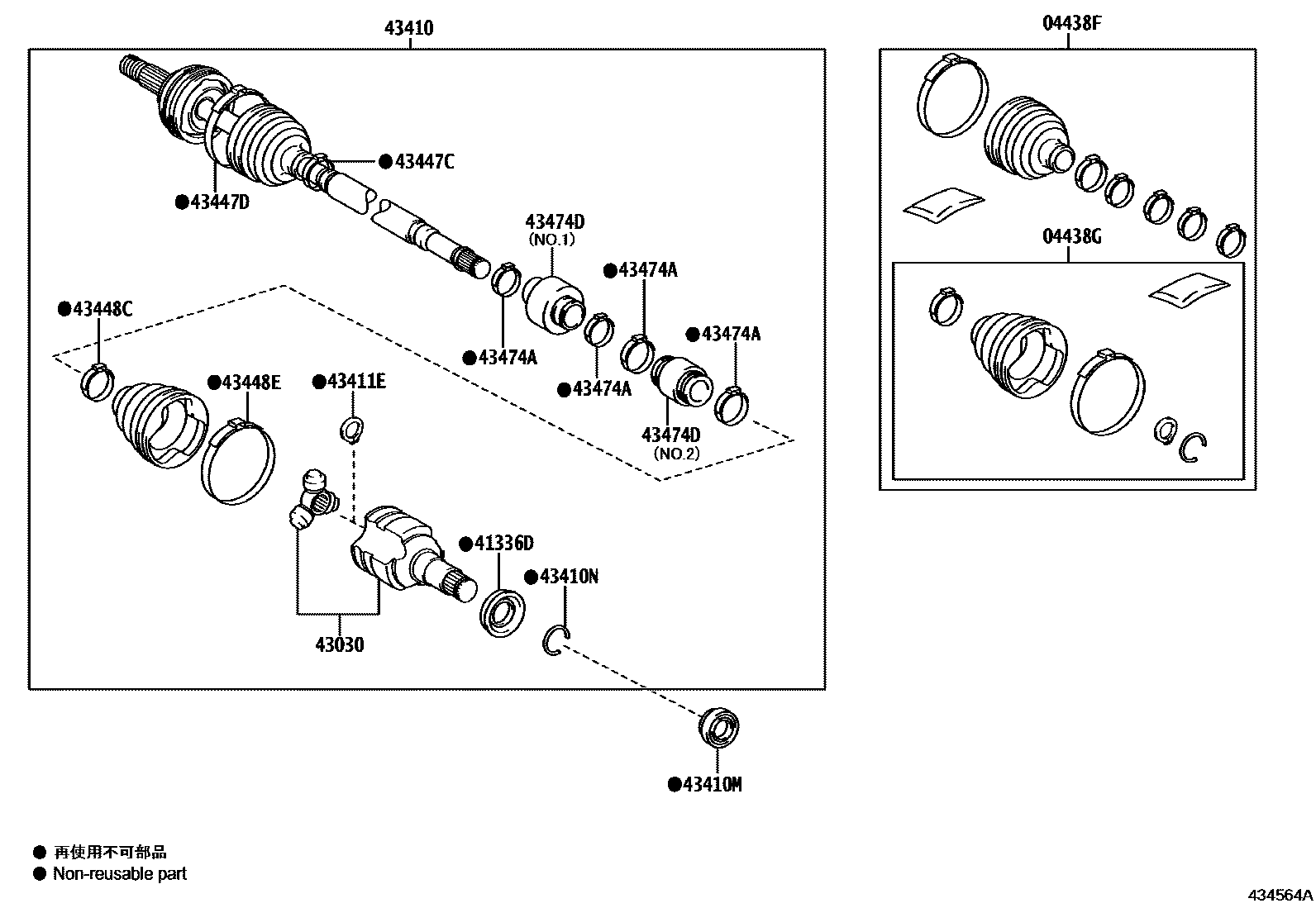

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D460iNSP151..D202101-202407

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D260iNSP151..5D202101-202306

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0D060iNSP151..5D202101-202306

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0D030iNSP151..5D202101-202306

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D770iNSP151..5D202101-202306

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34050iNSP151..5D202101-202306

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0D160iNSP151..5D202101-202306

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D150iNSP151..5D202101-202306

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D670iNSP151..5D202101-202306

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D660iNSP151..4D..(R,V)202101

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DA40iNSP151..5D202101-202306

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DA30iNSP151..4D..(R,V)202101

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02B60×4iNSP151..5D202101-202306

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D270iNSP151..5D202101-202306

NO.1

main43474-0D360iNSP151..5D202101-202306

NO.2

14 parts on this diagram · 2 diagrams in section
