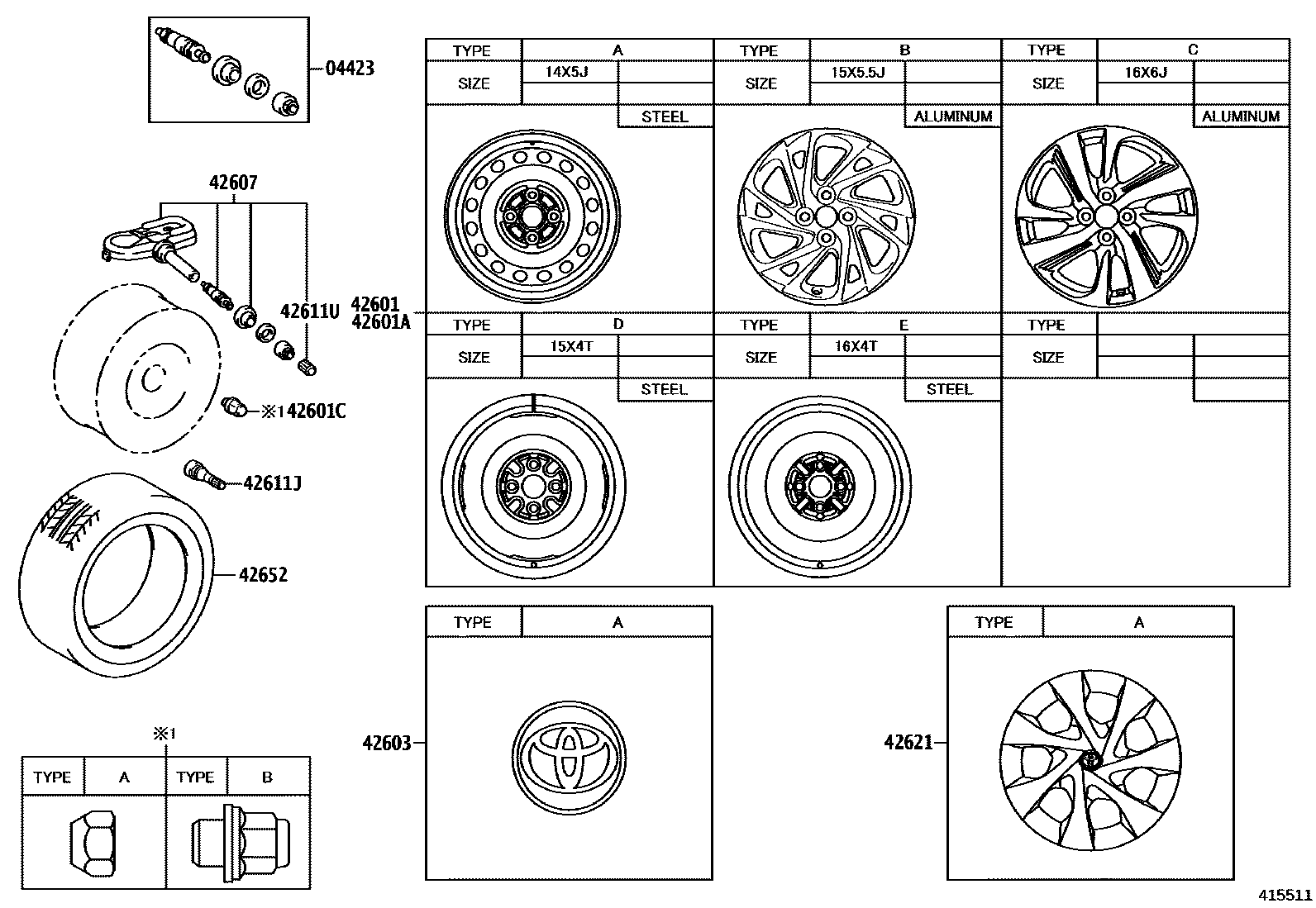

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iNSP151..D202101-202407

42601WHEEL, DISC

main42611-0D701×4iNSP151..4D..(R,V)202306

14X5J, #,TYPE A:REFER ILLUST.

main42611-0DF60×4iNSP151..5D..V202101-202306

16X6J, #,TYPE C:REFER ILLUST.

main42611-0DM50×4iNSP151..G;NSP151..4D..(R,V)202101-202306

15X5.5J,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02280iNSP151..D202101-202407

15X4T,SPARE TIRE-T125/70D15, TEMPORARY,TYPE D:REFER ILLUST.

main42611-02690iNSP151..5D..V202101-202306

16X4T,SPARE TIRE-T125/70D16, TEMPORARY,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iNSP151..5D..R202101-202306

TYPE A:REFER ILLUST.

main90942-01033×16iNSP151..G,V;NSP151..4D..R202101-202306

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52170×4iNSP151..G,V;NSP151..4D..R202101-202306

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-52020×4iNSP151202101-202201

main42607-52050×4iNSP151..4D..(R,V)202202

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90083-45001iNSP151..5D..(G,R)202101-202306

SPARE TIRE-T125/70D15, TEMPORARY

42611UCAP, TIRE VALVE

main90942-05039×4iNSP151..5D202101-202306

42621CAP, WHEEL

main42602-0D390×4iNSP151..5D..R202101-202306

TYPE A:REFER ILLUST.

42652TIRE

main42652-0DE70×4iNSP151..5D..R202101-202306

175/65R14

10 parts on this diagram · 2 diagrams in section
