WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL & FLOOR & RO0004 1INSTRUMENT PANEL & FLOOR & RO0005 1DOOR 0006 1DOOR 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/3 0009 1CONNECTOR 2/3 0010 1CONNECTOR 3/3

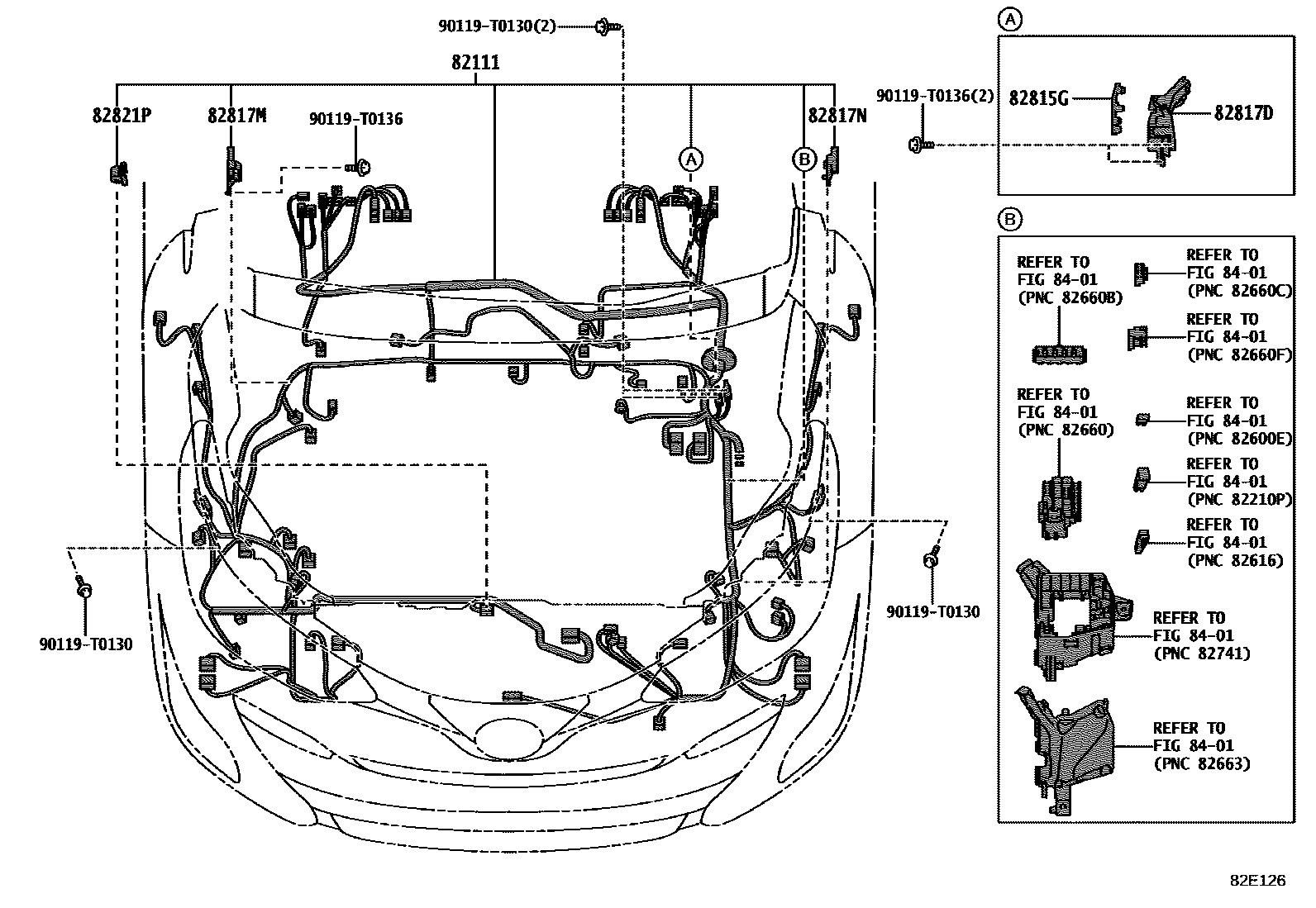

82111WIRE, ENGINE ROOM MAIN

main82115-0UU90supersedes 82111-0UT50iNSP151..SED..CVT..D202012

MLM PACKAGE

main82115-0UV00supersedes 82111-0UT90iNSP151..HB..R202012

MLM PACKAGE

main82115-0UV10supersedes 82111-0UT70iNSP151..HB..D202012

MLM PACKAGE

main82115-0UV20supersedes 82111-0UT80iNSP151..SED..R202012

MLM PACKAGE

main82115-0UV30supersedes 82111-0UU00iNSP151..G202012

MLM PACKAGE

main82115-F5B80supersedes 82111-0UT60iNSP151..5F202012

MLM PACKAGE

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0D350iNSP151202012

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-0D580iNSP151202012

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-0DB00iNSP151202012

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-0DB10iNSP151202012

82821PCOVER, CONNECTOR

main82821-30650iNSP151202012

8401

90119T0130

main90119-T0130

90119T0136

main90119-T0136

9 parts on this diagram · 10 diagrams in section
