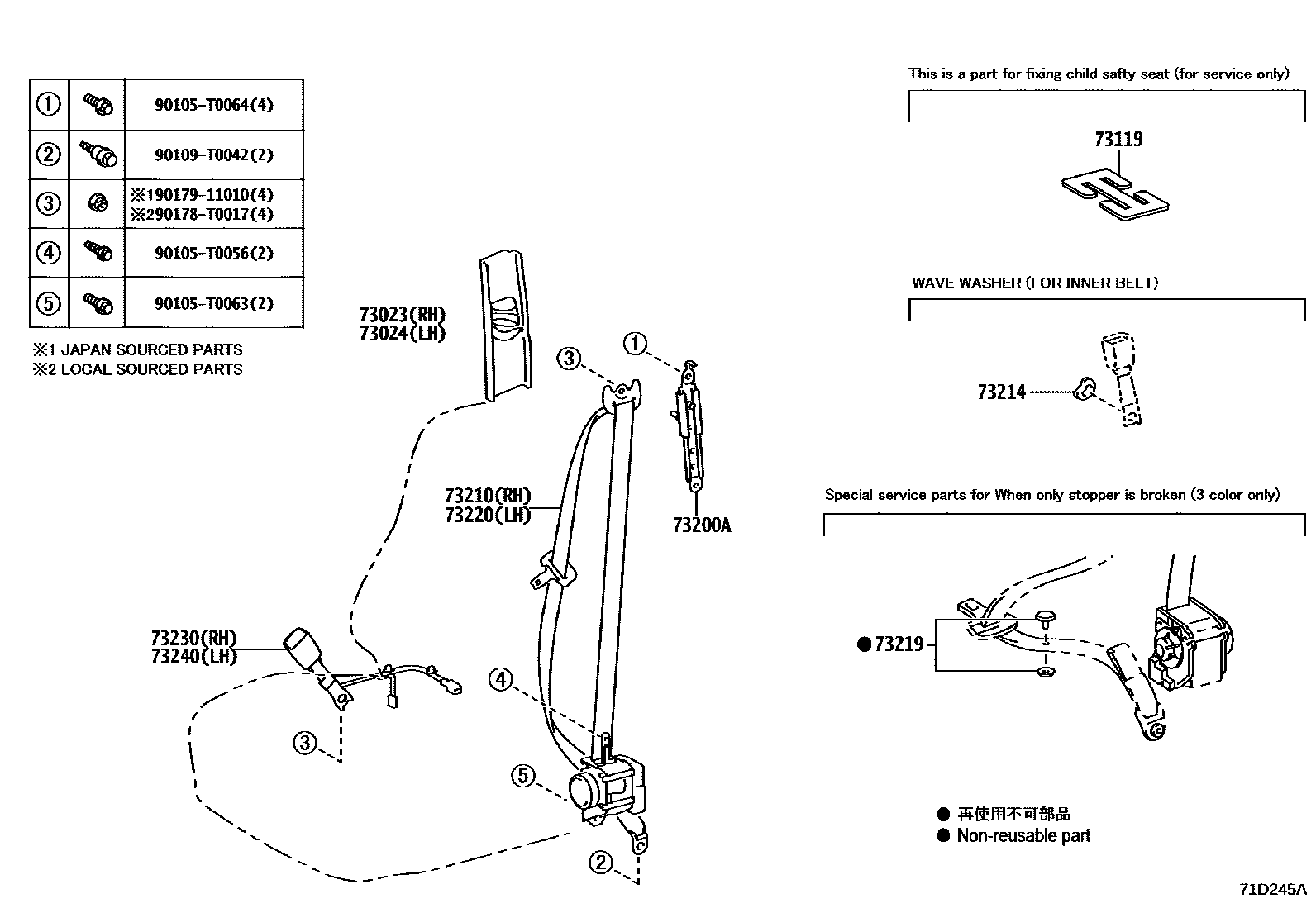

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT 0003 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06080-B0iNSP151..SED202012

GRAY,TRIM2#

main73023-06080-C0iNSP151..HB202012

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06110-B0iNSP151..SED202012

GRAY,TRIM2#

main73024-06110-C0iNSP151..HB202012

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNSP151202012

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140×2iNSP151202012

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D530-C0iNSP151..SED202012

BLACK/GRAY,TRIM2#

main73210-0D530-C1iNSP151..HB202012

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iNSP151202012

73219STOPPER, TONGUE PLATE

main73219-33010iNSP151202012

BLACK

main73219-33020iNSP151202012

GRAY

main73219-33030iNSP151202012

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D520-C0iNSP151..SED202012

BLACK/GRAY,TRIM2#

main73220-0D520-C1iNSP151..HB202012

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D790-C0iNSP151202012

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D680-C0iNSP151202012

BLACK,TRIM2#

90105T0056

main90105-T0056

90105T0063

main90105-T0063

90105T0064

main90105-T0064

90109T0042

main90109-T0042

90178T0017

main90178-T0017

9017911010

main90179-11010

16 parts on this diagram · 3 diagrams in section
