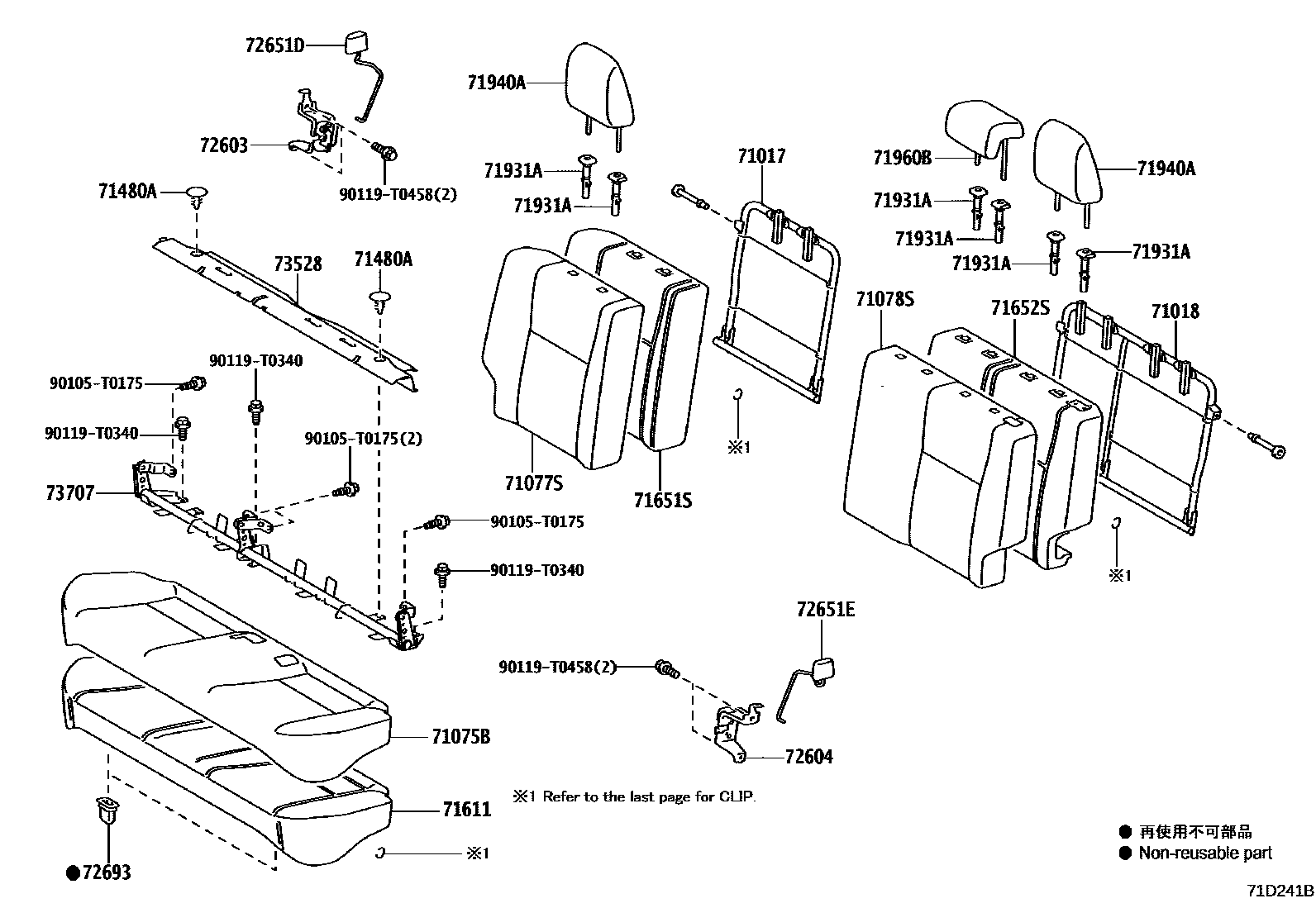

REAR SEAT & SEAT TRACK

0001 1 0002 1FIXED SEAT 0003 1FOLDING SEAT 0004 1CLIP & SEAT EDGE WIRE

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D620iNSP151..SED..(G,R)202012

main71017-0D780iNSP151..HB202012

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D350iNSP151..SED..(G,R)202012

main71018-0D470iNSP151..HB202012

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0U240-C1iNSP151..SED..(D,R)202012

BLACK/GRAY,TRIM2#

main71075-0U260-C1iNSP151..HB202012

BLACK/GRAY/BLUESTITCH,TRIM2#

main71075-0U530-C0supersedes 71075-0DP80-C9iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0UC40-C2iNSP151..SED..R202012

BLACK/GRAY,TRIM2#

main71077-0UC60-C2iNSP151..HB202012

BLACK/GRAY/BLUESTITCH,TRIM2#

main71077-0UG80-C0supersedes 71077-0DV40-20iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0DP60-C2iNSP151..SED..R202012

BLACK/GRAY,TRIM2#

main71078-0DP80-C2iNSP151..HB202012

BLACK/GRAY/BLUESTITCH,TRIM2#

main71078-0DS40-C0supersedes 71078-0DD40-20iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71480ACLIP (FOR REAR SEATBACK)

main90467-08186-C3×2iNSP151..HB;NSP151..SED..(G,R)202012-202105

BLACK

main90467-T0045-C0×2iNSP151..HB;NSP151..SED..(G,R)202105

BLACK

71611PAD, REAR SEAT CUSHION

main71503-0D340iNSP151..HB202012

main71503-0D470iNSP151..SED202012

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D370iNSP151..SED..(G,R)202012

main71651-0DA50iNSP151..HB202012

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D250iNSP151..SED..(G,R)202012

main71652-0D510iNSP151..HB202012

71931ASUPPORT, REAR SEAT HEADREST

main71930-02370-C1×3iNSP151..SED..G202012

W(LOCK)&W(BUTTON),BLACK,TRIM20

main71930-02370-C2×3iNSP151..SED..G202012

W(LOCK)&W(BUTTON),BLACK,TRIM23

main71931-02130-C1×3iNSP151..SED..G202012

W/O(LOCK),BLACK,TRIM2#

main71931-02130-C2×3iNSP151..SED..G202012

W/O(LOCK),BLACK,TRIM23

71940AHEADREST ASSY, REAR SEAT

main71940-0DE10-C2×2iNSP151..HB202012

BLACK/BLUESTITCH,TRIM2#

main71940-0DM00-C2×2iNSP151..SED..(D,R)202012

BLACK/GRAY,TRIM2#

main71940-0DV50-C0×2supersedes 71940-0DM70-C4iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0D230-C3iNSP151..SED..D202012

BLACK/GRAY,TRIM2#

main71960-0D250-C6iNSP151..HB202012

BLACK/BLUESTITCH,TRIM2#

main71960-0D250-C7iNSP151..SED..R202012

BLACK/BLUE,TRIM2#

main71960-0DG50-C0supersedes 71960-0DA60-C4iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-0D080iNSP151..HB;NSP151..SED..(G,R)202012

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-0D080iNSP151..HB;NSP151..SED..(G,R)202012

72651DROD, REAR SEATBACK LOCK, RH

main72651-0D070-C0iNSP151..SED..(G,R)202012

BLACK,TRIM2#

main72651-0D100-C0iNSP151..HB202012

BLACK,TRIM2#

72651EROD, REAR SEATBACK LOCK, LH

main72652-0D070-C0iNSP151..SED..(G,R)202012

BLACK,TRIM2#

main72652-0D100-C0iNSP151..HB202012

BLACK,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNSP151202012

73528CARPET, REAR SEAT SUB FLOOR, REAR

main73528-0D110-C0iNSP151..HB;NSP151..SED..(G,R)202012

BLACK,TRIM2#

73707BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

main73705-0D360iNSP151..SED..D202012

main73705-0D370iNSP151..SED..(G,R)202012

main73705-0D380iNSP151..HB202012

90105T0175

main90105-T0175

90119T0340

main90119-T0340

90119T0458

main90119-T0458

22 parts on this diagram · 4 diagrams in section
