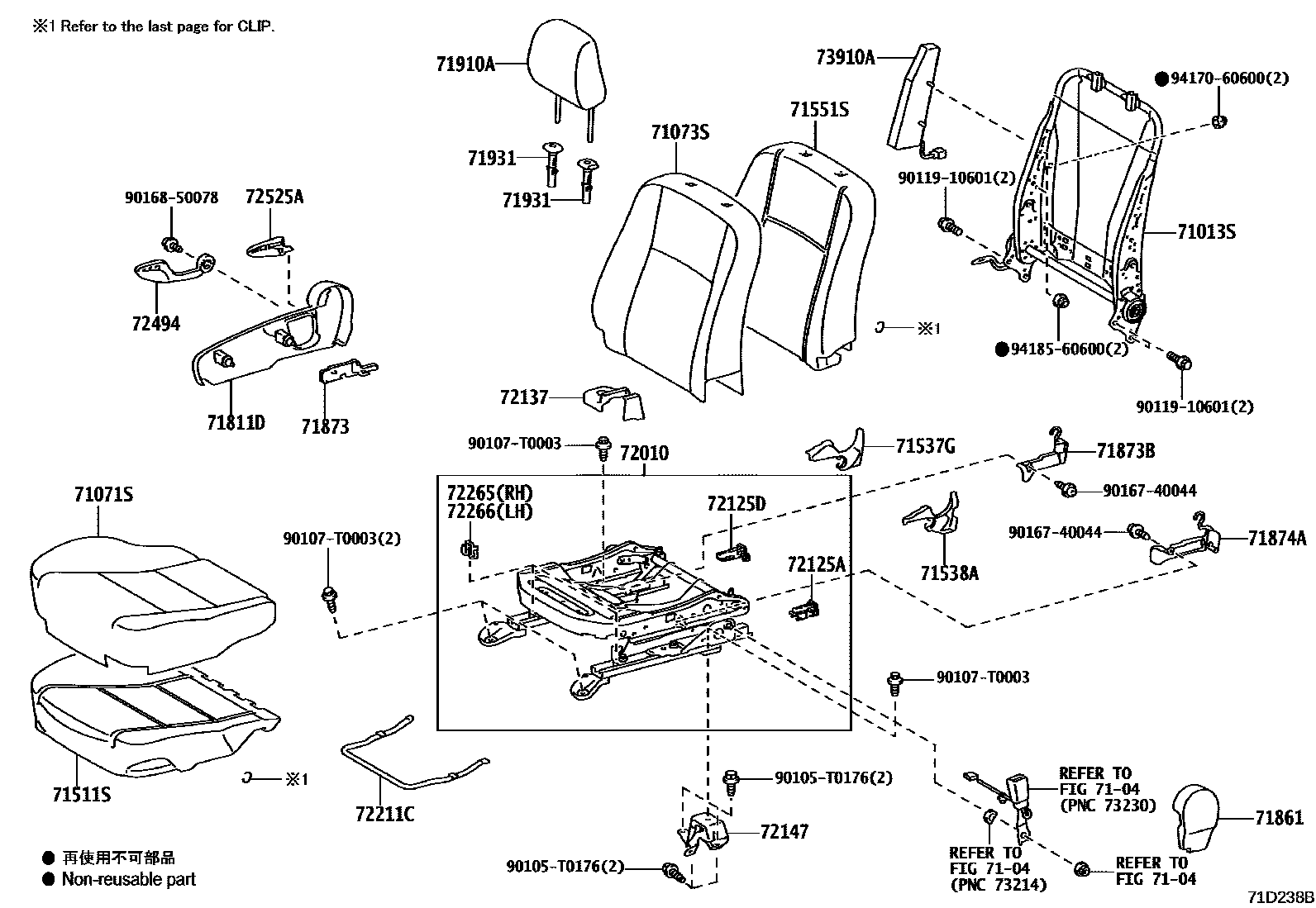

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT 0003 1CLIP & SEAT EDGE WIRE

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-0D260iNSP151202012

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0UJ10-C2iNSP151..SED..(D,R)202012

BLACK/GRAY,TRIM2#

main71071-0UJ30-C2iNSP151..HB202012

BLACK/GRAY/BLUE,TRIM2#

main71071-0UN90-C1supersedes 71071-0DZ10-C3iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0UM00-C1iNSP151..SED..(D,R)202012

BLACK/GRAY,TRIM2#

main71073-0UM20-C3iNSP151..HB202012

BLACK/GRAY/BLUE,TRIM2#

main71073-0US40-C1supersedes 71073-0U120-C3iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-0DC20iNSP151..HB;NSP151..SED..(D,R)202012

main71511-0D760supersedes 71511-0D750iNSP151..SED..G202012

GR SPORT&MLM PACKAGE

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-0D130-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main71537-0D130-C1iNSP151..SED..G202012

BLACK,TRIM23

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-0D120-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main71538-0D120-C1iNSP151..SED..G202012

BLACK,TRIM23

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-0DB60iNSP151..HB;NSP151..SED..(D,R)202012

main71551-0D700supersedes 71551-0D690iNSP151..SED..G202012

GR SPORT&MLM PACKAGE

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0D500-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main71811-0D500-C1iNSP151..SED..G202012

BLACK,TRIM23

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0D400-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main71861-0D400-C1iNSP151..SED..G202012

BLACK,TRIM23

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-0D350iNSP151202012

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-06530iNSP151202012

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06550iNSP151202012

71910AHEADREST ASSY, FRONT SEAT

main71910-0DA40-C4×2iNSP151..HB202012

BLACK/GRAY,TRIM2#

main71910-0DA40-C5×2iNSP151..SED..(D,R)202012

BLACK/GRAY,TRIM2#

main71910-0DP50-C0×2supersedes 71910-0DB80-C5iNSP151..SED..G202012

GR SPORT&MLM PACKAGE,BLACK/GR RED,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02370-C1×2iNSP151..HB;NSP151..SED..(D,R)202012

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71930-02370-C2×2iNSP151..SED..G202012

W(LOCK)&W(BUTTON),BLACK,TRIM23

main71931-02130-C1×2iNSP151..HB;NSP151..SED..(D,R)202012

W/O(LOCK),BLACK,TRIM20

main71931-02130-C2×2iNSP151..SED..G202012

W/O(LOCK),BLACK,TRIM23

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-0D760iNSP151202012

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-0D030×2iNSP151202012

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-0D080×2iNSP151202012

72137COVER, SEAT TRACK, OUTER RH

main72137-0D100-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main72137-0D100-C1iNSP151..SED..G202012

BLACK,TRIM23

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-0D090iNSP151202012

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0D310×2iNSP151202012

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-0D080×2iNSP151202012

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-0D080×2iNSP151202012

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-0D110-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main72494-0D110-C1iNSP151..SED..G202012

BLACK,TRIM23

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-06130-C0iNSP151..HB;NSP151..SED..(D,R)202012

BLACK,TRIM20

main72525-06130-C1iNSP151..SED..G202012

BLACK,TRIM23

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-0D100iNSP151202012

90105T0176

main90105-T0176

90107T0003

main90107-T0003

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9417060600

main94170-60600

9418560600

main94185-60600

33 parts on this diagram · 3 diagrams in section
