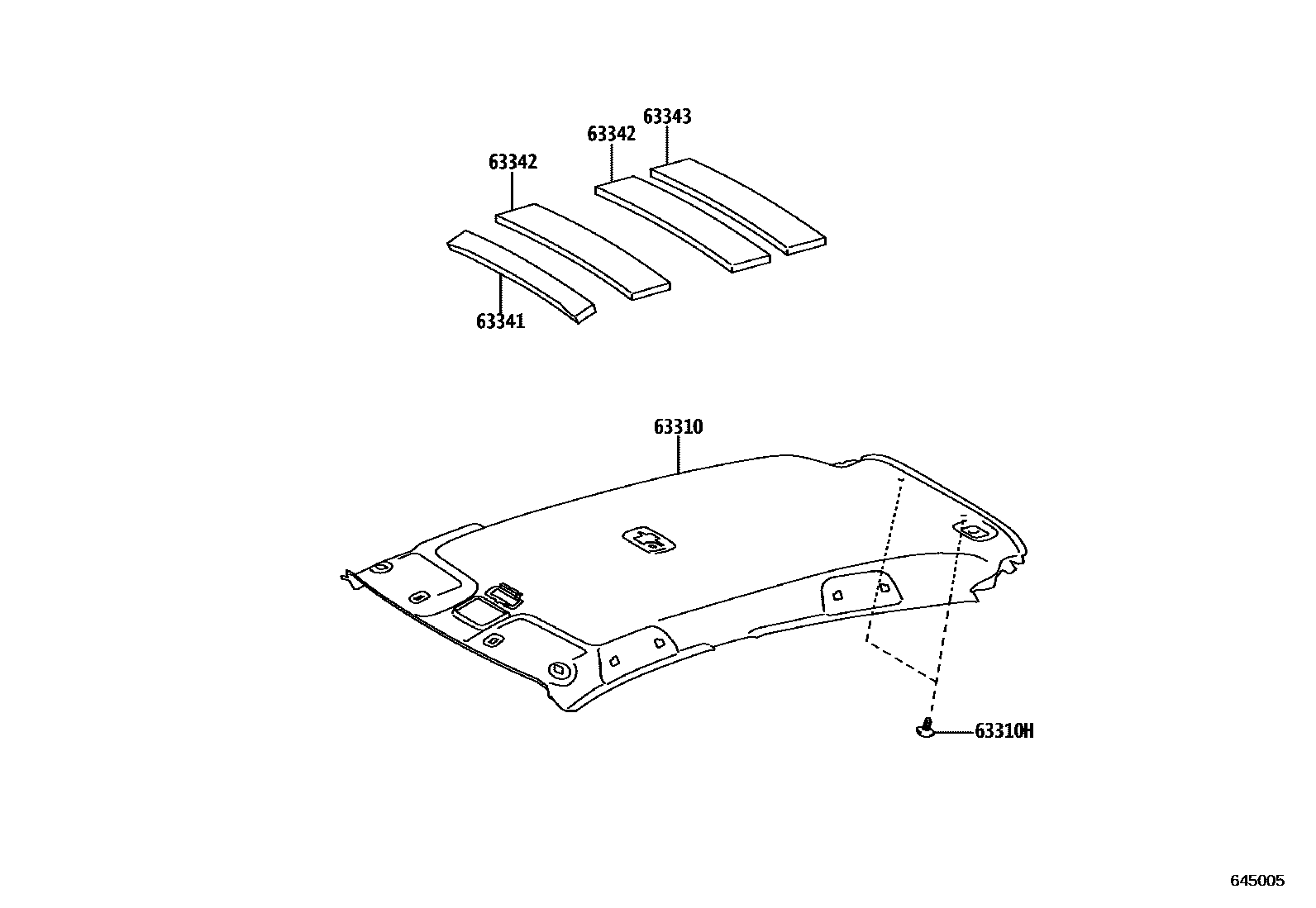

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-0DC30-B0iNSP151..SED202012

GRAY,TRIM2#

main63310-0DF90-C0iNSP151..HB202012

BLACK,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-T0004-B1×2iNSP151..SED202012

GRAY,TRIM2#

main90467-T0004-C4×2iNSP151..HB202012

BLACK,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-0D200iNSP151202012

63342PAD, ROOF SILENCER, NO.2

main63343-0D490×2supersedes 63343-0D490iNSP151..HB..R202012

MLM PACKAGE

63343PAD, ROOF SILENCER, NO.3

main63343-0D490supersedes 63343-0D490iNSP151..HB..R202012

MLM PACKAGE

main63343-0D540iNSP151..SED202012

5 parts on this diagram · 2 diagrams in section
