INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

51965HHOOK, REAR

main51965-0D100-C0iNSP151..HB202012

BLACK,TRIM2#

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D250-C0iNSP151202012

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D290-C0iNSP151202012

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNSP151202012

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-T0021iNSP151202012

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0D080iNSP151..SED202012

main62170-0D090iNSP151..HB202012

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0D080iNSP151..SED202012

main62180-0D090iNSP151..HB202012

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iNSP151202012

62211GARNISH, FRONT PILLAR, RH

main62211-0D880-B0iNSP151..SED..D202012

GRAY,TRIM2#

main62211-0D880-C0iNSP151..HB..D202012

BLACK,TRIM2#

main62211-0DA80-B0iNSP151..SED..(G,R)202012

GRAY,TRIM2#

main62211-0DA80-C0iNSP151..HB..(G,R)202012

BLACK,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-52120iNSP151202012

62212GARNISH, FRONT PILLAR, LH

main62212-0D880-B0iNSP151..SED..D202012

GRAY,TRIM2#

main62212-0D880-C0iNSP151..HB..D202012

BLACK,TRIM2#

main62212-0DA80-B0iNSP151..SED..(G,R)202012

GRAY,TRIM2#

main62212-0DA80-C0iNSP151..HB..(G,R)202012

BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main90467-T0021iNSP151202012

62217HCLIP, CENTER PILLER GARNISH

main90467-10188iNSP151202012

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D260iNSP151202012

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D260iNSP151202012

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D180iNSP151..SED202012

main62331-0D390iNSP151..HB202012

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D160iNSP151..SED202012

main62332-0D390iNSP151..HB202012

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-0D020-B0iNSP151..SED202012

GRAY,TRIM2#

main62410-0D020-C0iNSP151..HB202012

BLACK,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-0D020-B0iNSP151..SED202012

GRAY,TRIM2#

main62420-0D020-C0iNSP151..HB202012

BLACK,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D390-C0iNSP151202012

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-T0021iNSP151202012

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D390-C0iNSP151202012

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D680-C0iNSP151..HB..(G,R)202012

BLACK,TRIM2#

main62471-0D840-B0iNSP151..SED..D202012

GRAY,TRIM2#

main62471-0D850-B0iNSP151..SED..(G,R)202012

GRAY,TRIM2#

main62471-0DB50-C0iNSP151..HB..D202012

BLACK,TRIM2#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-T0021iNSP151..SED202012

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10167iNSP151..SED202012

main90467-T0021iNSP151..HB202012

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D840-B0iNSP151..SED..D202012

GRAY,TRIM2#

main62472-0D850-B0iNSP151..SED..(G,R)202012

GRAY,TRIM2#

main62472-0DA70-C0iNSP151..HB..(G,R)202012

BLACK,TRIM2#

main62472-0DB50-C0iNSP151..HB..D202012

BLACK,TRIM2#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10188iNSP151202012

62551FGARNISH, REAR SEAT SIDE, RH

main62551-0D420-C0iNSP151..SED..D202012

BLACK,TRIM2#

main62551-0D430-C0iNSP151..SED..(G,R)202012

BLACK,TRIM2#

main62551-0D470-C0iNSP151..HB202012

BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-0D420-C0iNSP151..SED..D202012

BLACK,TRIM2#

main62552-0D430-C0iNSP151..SED..(G,R)202012

BLACK,TRIM2#

main62552-0D450-C0iNSP151..HB202012

BLACK,TRIM2#

62571AGARNISH, ROOF SIDE, INNER LOWER RH

main62571-0D060-C0iNSP151..HB202012

BLACK,TRIM2#

62572AGARNISH, ROOF SIDE INNER LOWER LH

main62572-0D060-C0iNSP151..HB202012

BLACK,TRIM2#

62597DCLIP

main90467-18017iNSP151..SED202012

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D280-C0iNSP151202012

BLACK,TRIM2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D270-C0iNSP151202012

BLACK,TRIM2#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D210-C0iNSP151202012

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D210-C0iNSP151202012

BLACK,TRIM2#

7104

90167T0020

main90167-T0020

90189T0021

main90189-T0021

9167380616

main91673-80616

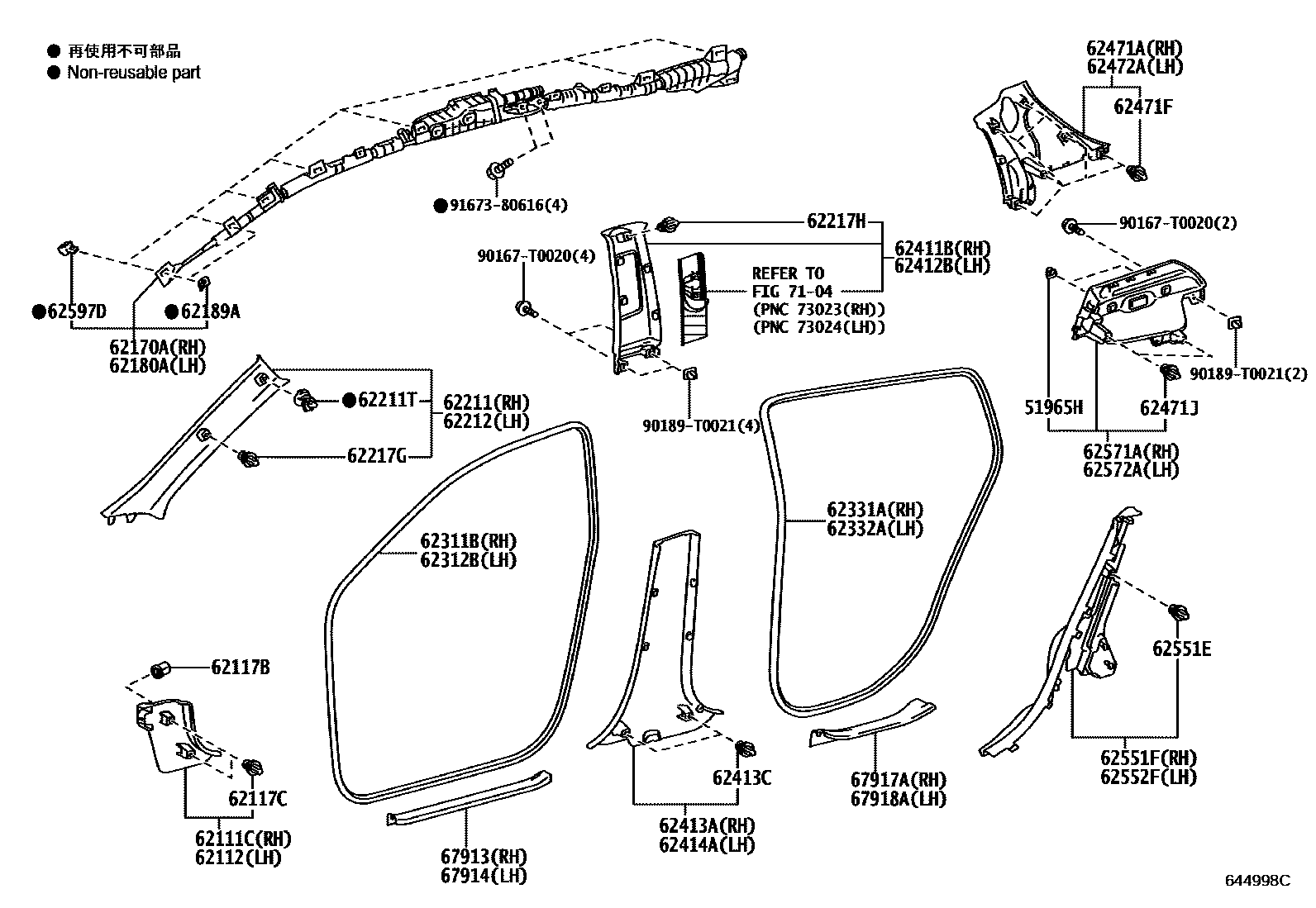

40 parts on this diagram · 2 diagrams in section
