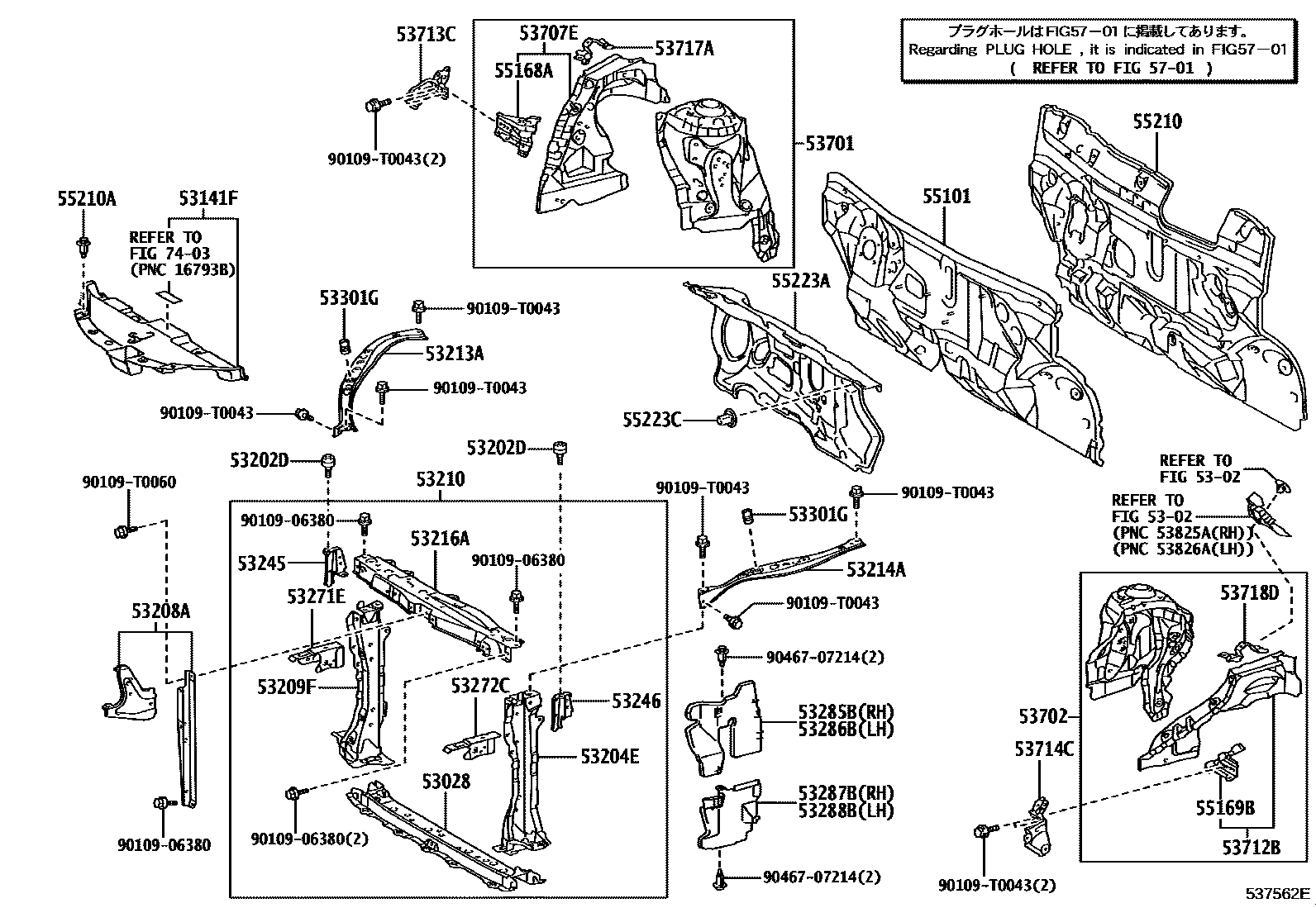

FRONT FENDER APRON & DASH PANEL
5302
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53141FCOVER, RADIATOR
53202DCUSHION, RADIATOR SUPPORT
53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH
53210SUPPORT ASSY, RADIATOR
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
MLM PACKAGE
53286BSEAL, RADIATOR SIDE AIR, NO.2
MLM PACKAGE
53287BEXTENSION, RADIATOR SUPPORT, RH
MLM PACKAGE
53288BEXTENSION, RADIATOR SUPPORT, LH
MLM PACKAGE
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53717APLATE, FENDER APRON
53718DGUSSET, FENDER APRON, LH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
5701
7403
9010906380
main90109-06380
90109T0043
main90109-T0043
90109T0060
main90109-T0060
9046707214
main90467-07214
41 parts on this diagram · 1 diagram in section
