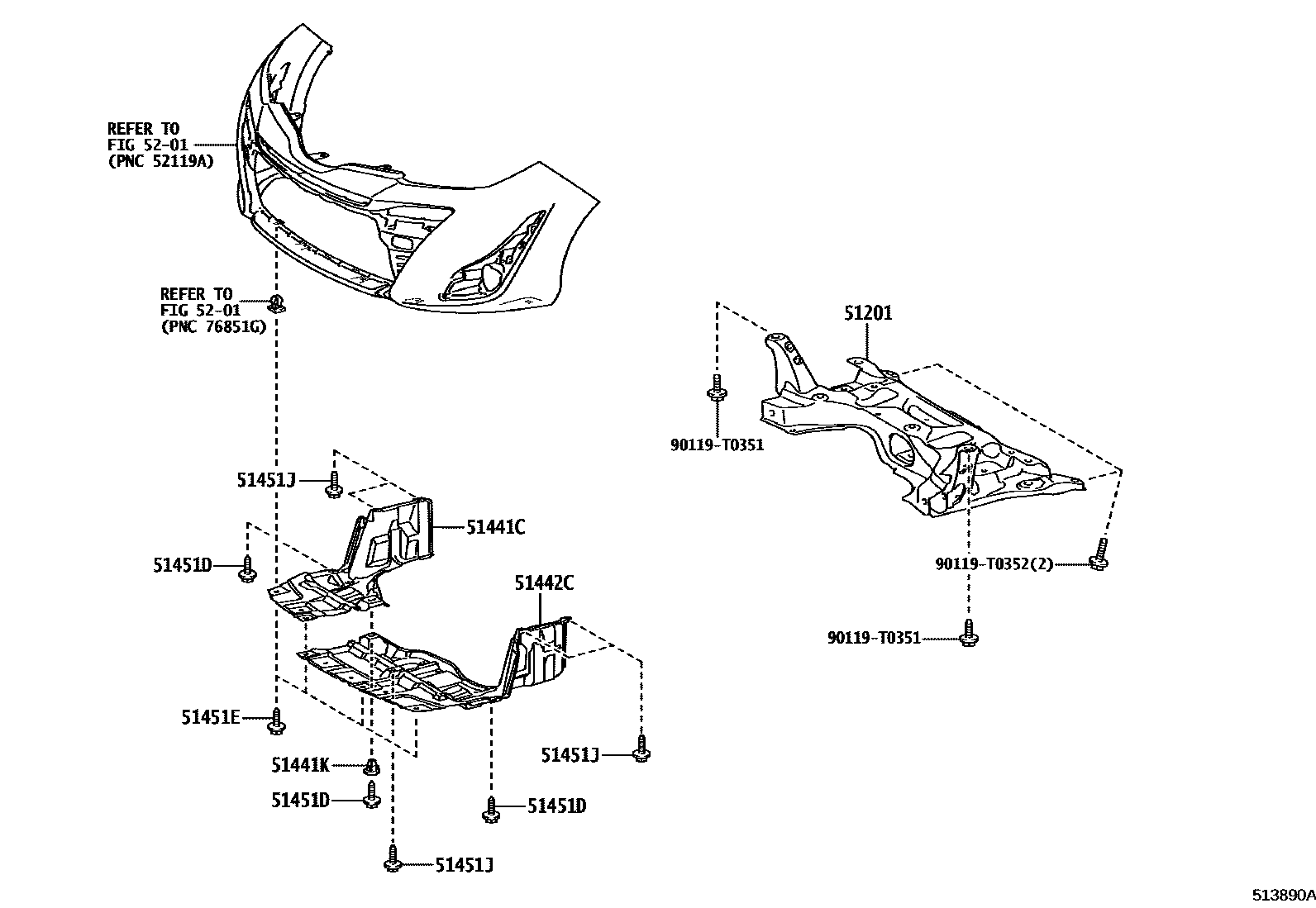

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D151iNSP151202012

51441CCOVER, ENGINE UNDER, RH

main51441-0D280iNSP151202012

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06006iNSP151202012-202104

main90189-T0022iNSP151202104

51442CCOVER, ENGINE UNDER, LH

main51442-0D170iNSP151202012

51451DSCREW, NO.1

main90159-T0008×3iNSP151202012

51451ESCREW, NO.2

main90159-T0033×4iNSP151202012

51451JBOLT, NO.1

main90119-T0144×5iNSP151202012

5201

90119T0351

main90119-T0351

90119T0352

main90119-T0352

10 parts on this diagram · 1 diagram in section
