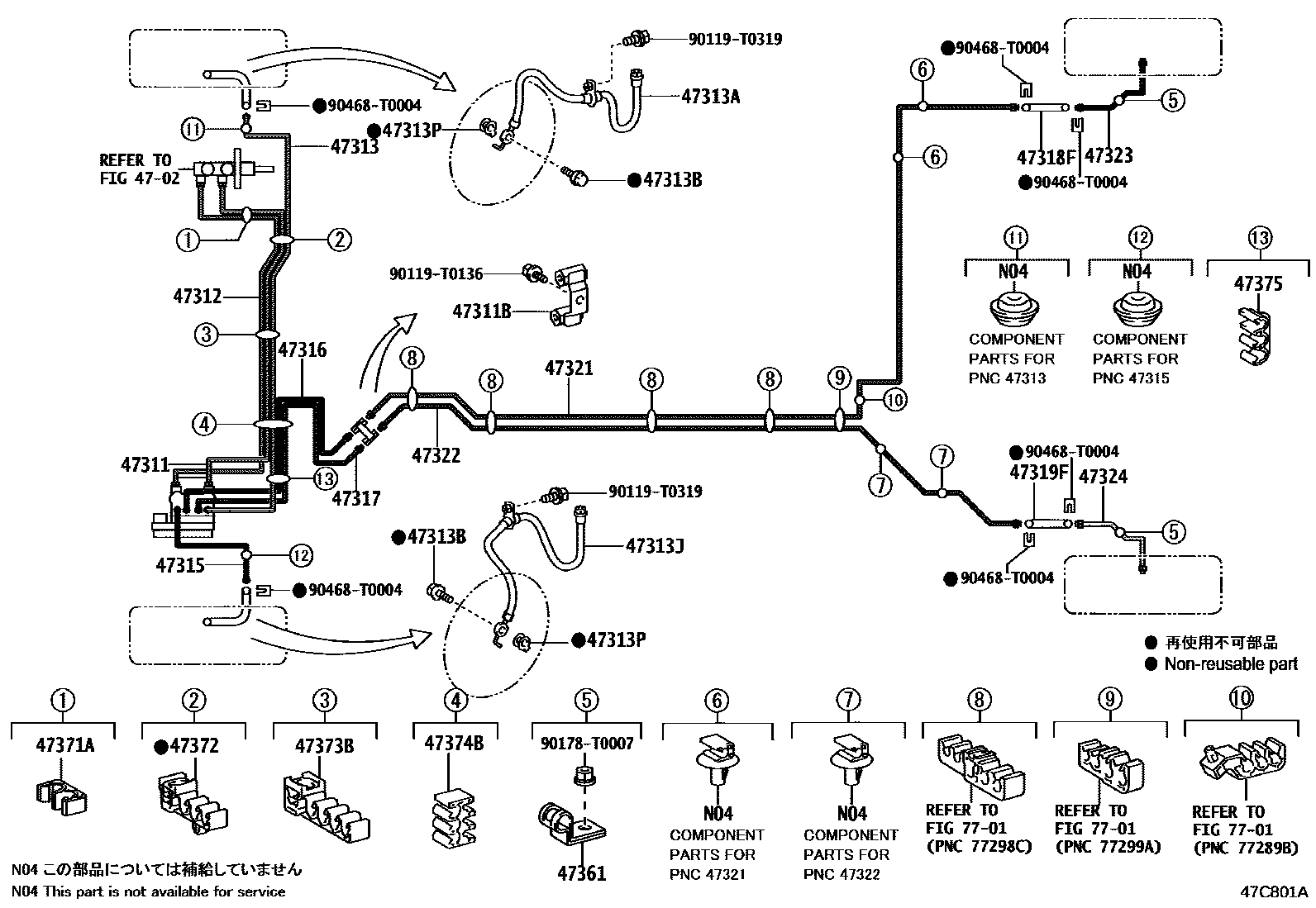

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0DB20iNSP151202012

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNSP151202012

47312TUBE, FRONT BRAKE, NO.2

main47312-0DA50iNSP151202012

47313TUBE, FRONT BRAKE, NO.3

main47313-0D870iNSP151202012

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2081iNSP151202012

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP151202012

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2082iNSP151202012

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNSP151202012

47315TUBE, FRONT BRAKE, NO.5

main47315-0D850iNSP151202012

47316TUBE, FRONT BRAKE, NO.6

main47316-0D760iNSP151202012

47317TUBE, FRONT BRAKE, NO.7

main47317-0D760iNSP151202012

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2083iNSP151202012

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2084iNSP151202012

47321TUBE, REAR BRAKE, NO.1

main47321-0D370iNSP151202012

47322TUBE, REAR BRAKE, NO.2

main47322-0D370iNSP151202012

47323TUBE, REAR BRAKE, NO.3

main47323-0D230iNSP151..D,R202012

main47323-0D250iNSP151..G202012

47324TUBE, REAR BRAKE, NO.4

main47324-0D230iNSP151..D,R202012

main47324-0D250iNSP151..G202012

47361CLAMP, TUBE

main90461-T0006×2iNSP151202012

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00899iNSP151202012

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D84iNSP151202012

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D85iNSP151202012

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00925iNSP151202012

47375CLAMP, BRAKE TUBE, NO.5

main90464-00868iNSP151202012

7701

90119T0136

main90119-T0136

90119T0319

main90119-T0319

90178T0007

main90178-T0007

90468T0004

main90468-T0004

29 parts on this diagram · 3 diagrams in section
