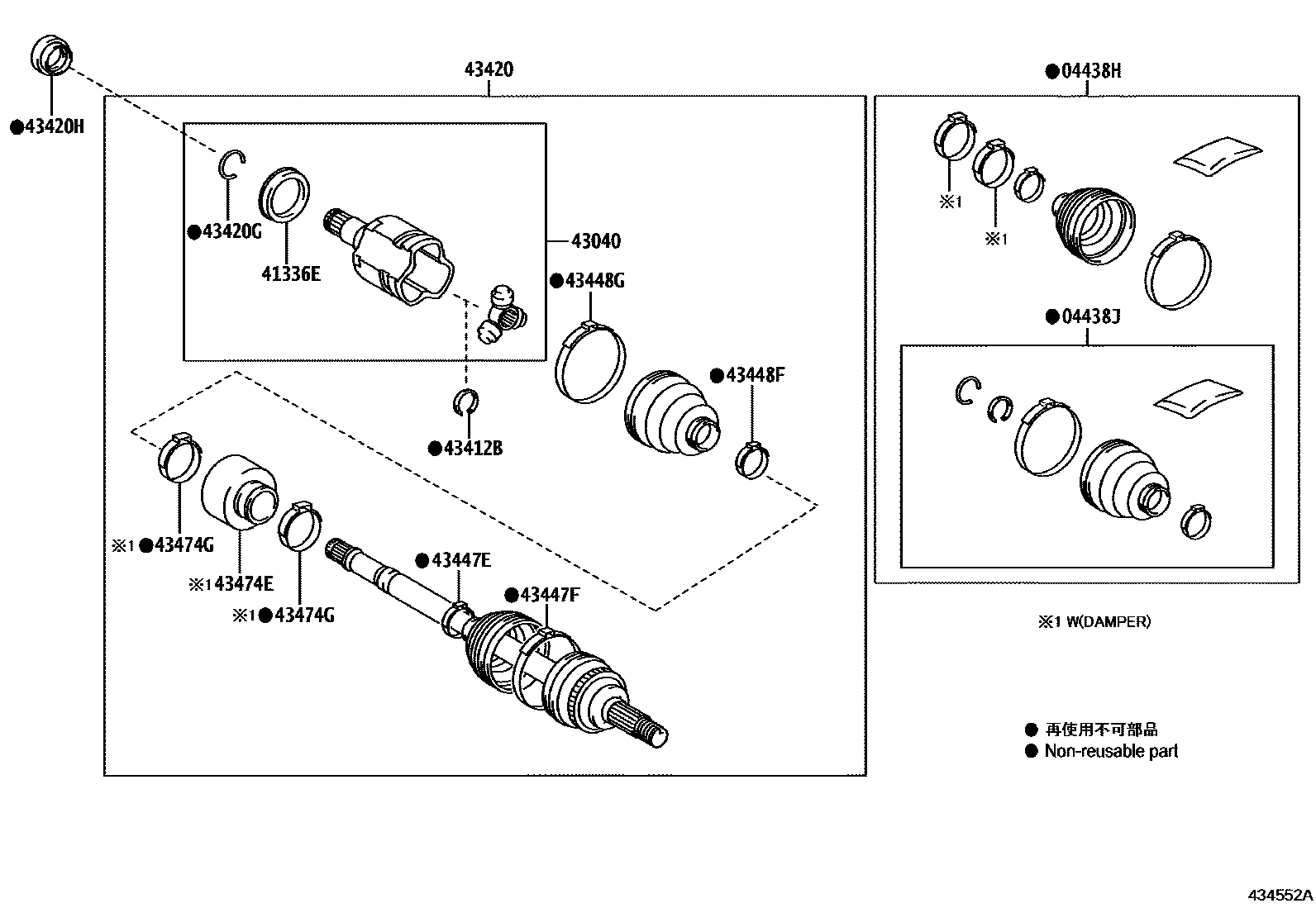

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-0D331iNSP151..5F202012

main04428-0D371iNSP151..CVT202012

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D250iNSP151202012

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0D120iNSP151202012

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0D030iNSP151202012

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0D380iNSP151202012

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-0D280iNSP151..5F202012

main43420-0D560iNSP151..CVT202012

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-0D390iNSP151202012

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-34051iNSP151..CVT202012-202109

main90311-34057iNSP151..CVT202110

main90311-T0103iNSP151..5F202012

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0DA70iNSP151202012

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0DA80iNSP151202012

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0DA70iNSP151202012

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0DA60iNSP151202012

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-0D300iNSP151..CVT202012

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-0DB40×2iNSP151..CVT202012

14 parts on this diagram · 2 diagrams in section
