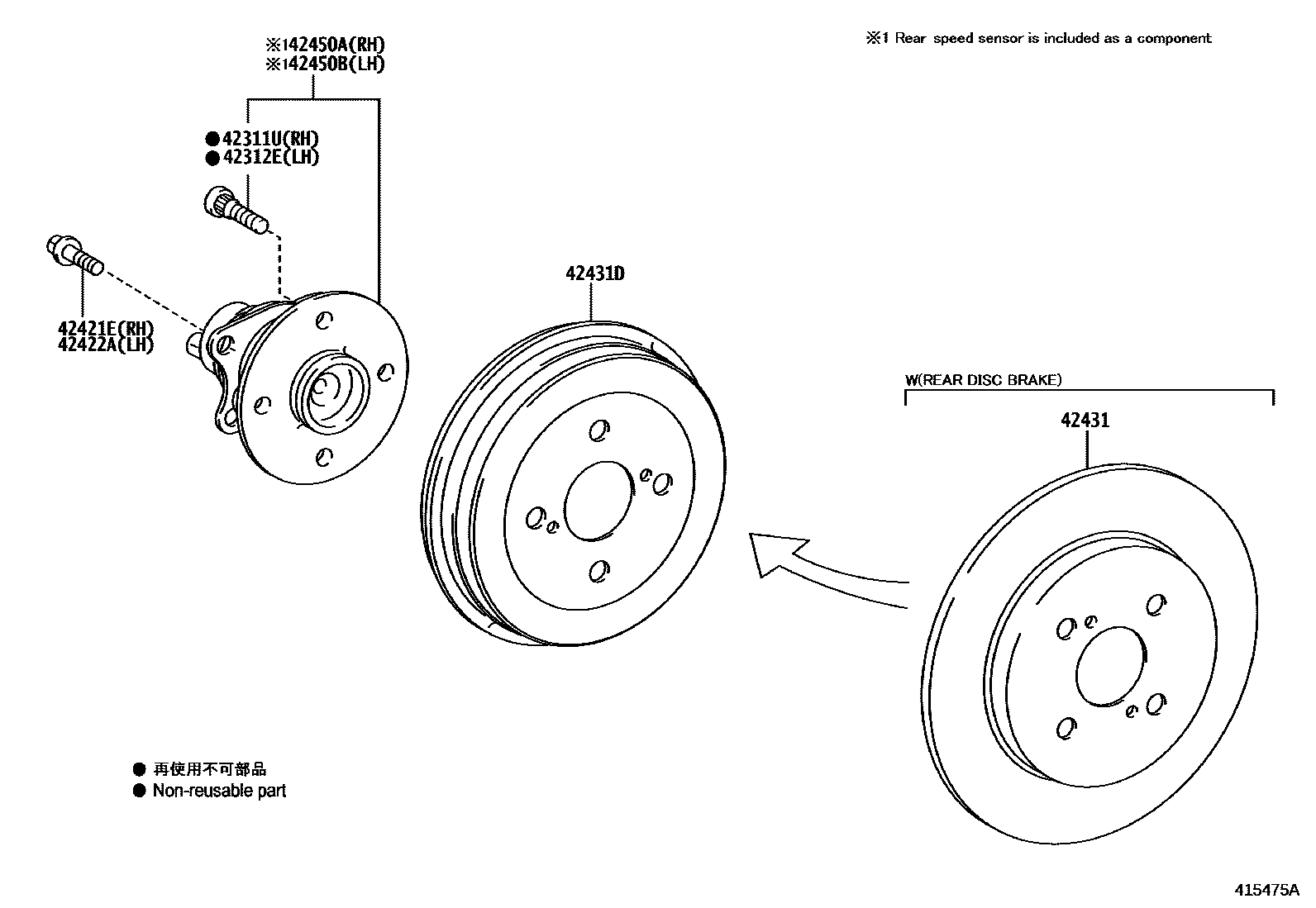

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02081×4iNSP151202012

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02081×4iNSP151202012

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-T0187×4iNSP151202012

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-T0187×4iNSP151202012

42431DISC, REAR

main42431-0D110×2iNSP151..G202012

42431DDRUM, BRAKE

main42431-0D100×2iNSP151..D,R202012

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0D120iNSP151202012

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0D120iNSP151202012

8 parts on this diagram · 1 diagram in section
