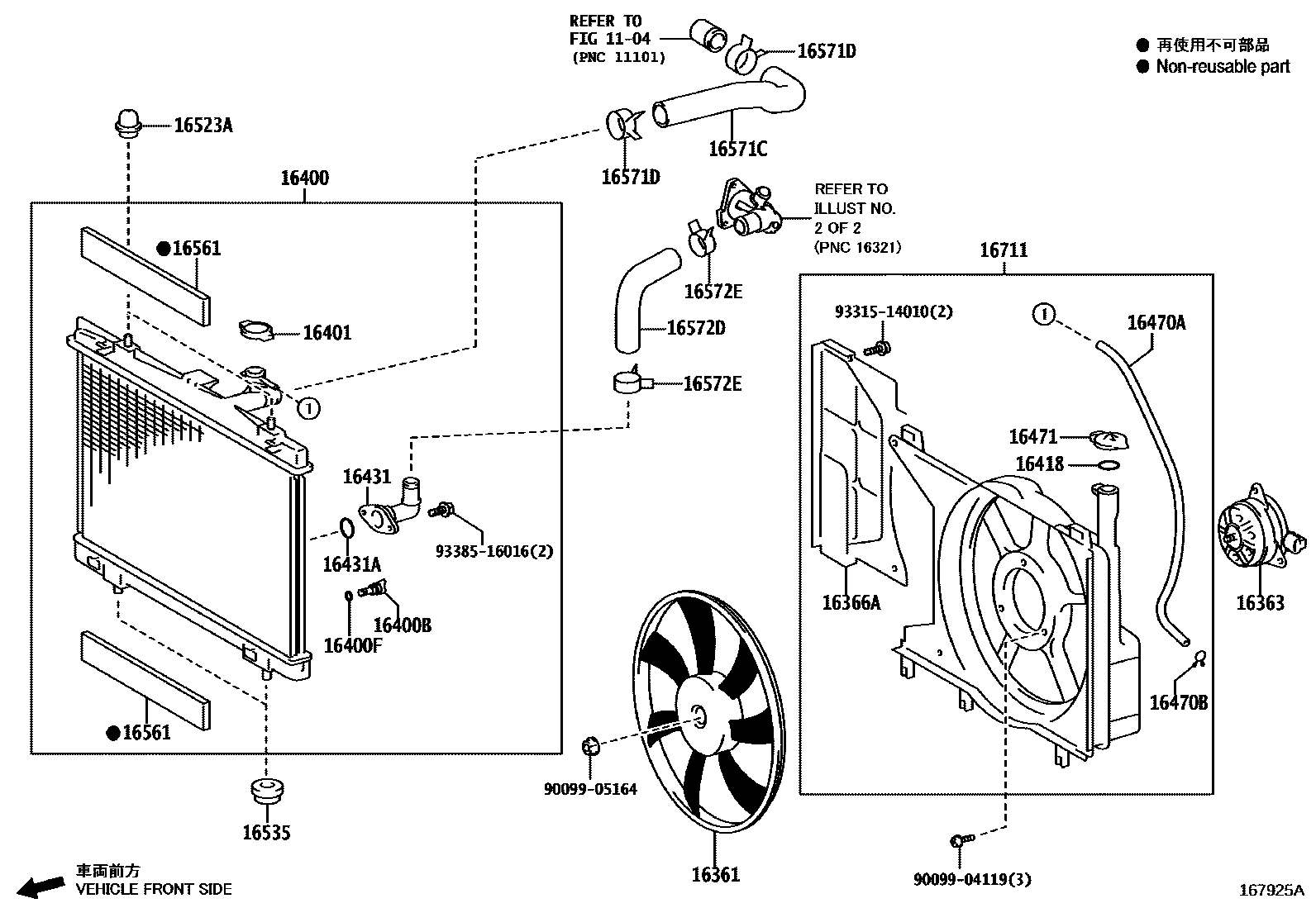

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1104

16361FAN

main16361-0M110i2NRFE..NSP151202012

16363MOTOR, COOLING FAN

main16363-0Y050i2NRFE..NSP151202012

16366AINSULATOR, COOLING FAN MOTOR

main16366-0Y250i2NRFE..NSP151202012

16400RADIATOR ASSY

main16400-0Y200i2NRFE..NSP151202012

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2NRFE..NSP151202012

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2NRFE..NSP151202012

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i2NRFE..NSP151202012

16418PACKING

main16476-0H060i2NRFE..NSP151202012

16431INLET, RADIATOR WATER

main16431-0Y190i2NRFE..NSP151202012

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y200i2NRFE..NSP151202012

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0Y250i2NRFE..NSP151202012

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2NRFE..NSP151202012

16471CAP SUB-ASSY, RESERVE TANK

main16376-0Y050i2NRFE..NSP151202012

16523ACUSHION, RADIATOR SUPPORT

main16523-21030×2i2NRFE..NSP151202012

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i2NRFE..NSP151202012

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0M060×4i2NRFE..NSP151202012

16571CHOSE, RADIATOR, NO.1

main16571-0Y190i2NRFE..NSP151..5F202012

main16571-0Y200i2NRFE..NSP151..CVT202012

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901×2i2NRFE..NSP151202012

16572DHOSE, RADIATOR, NO.2

main16572-0Y190i2NRFE..NSP151202012

16572ECLIP, RADIATOR HOSE, NO.2

main96136-43901×2i2NRFE..NSP151202012

16711SHROUD, FAN

main16711-0Y170i2NRFE..NSP151202012

9009904119

main90099-04119

9009905164

main90099-05164

9331514010

main93315-14010

9338516016

main93385-16016

26 parts on this diagram · 3 diagrams in section
