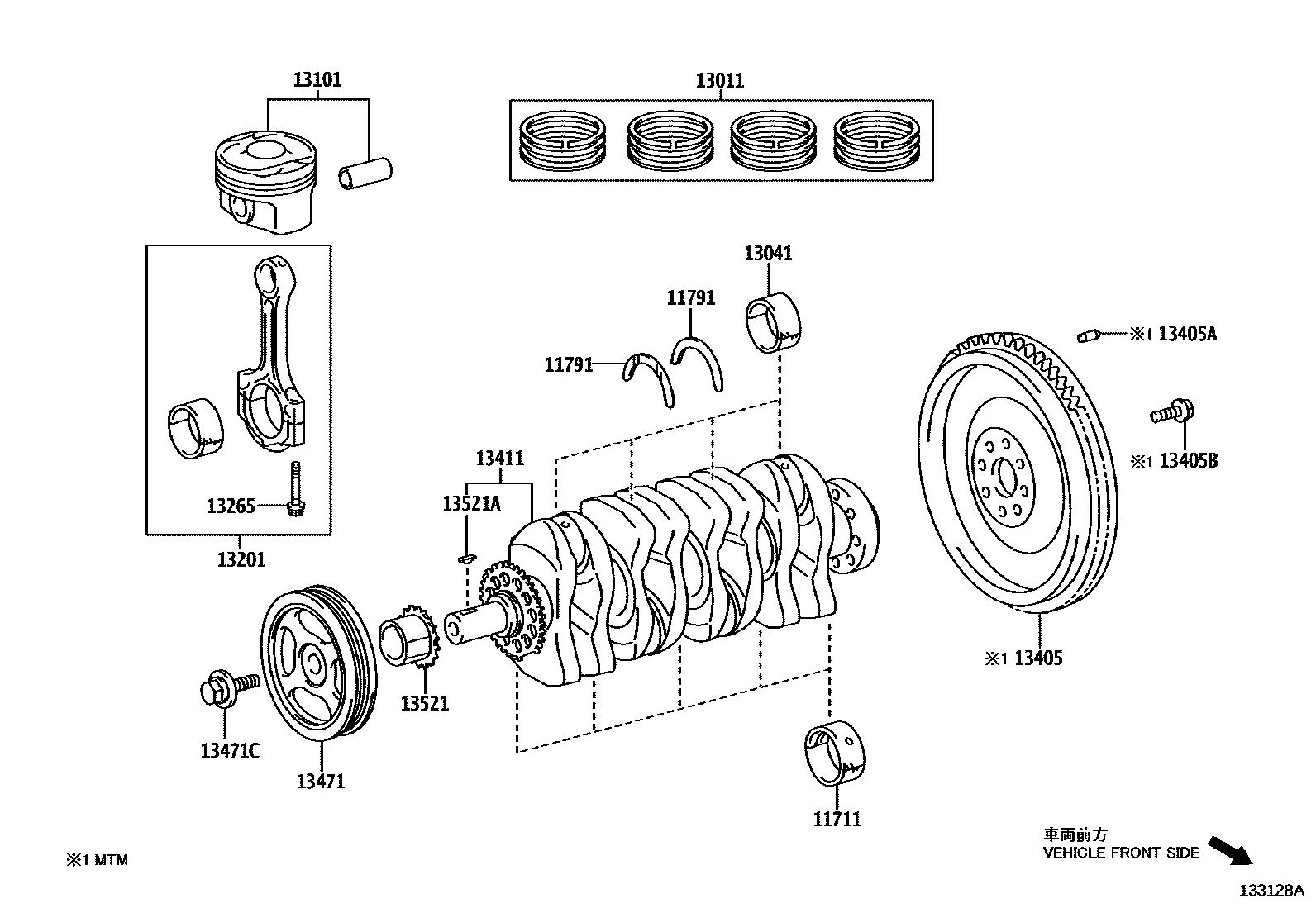

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-0Y030-02×5i2NRFE..NSP151202012

MARK2,REFER REPAIR MANUAL

main11701-0Y030-03×5i2NRFE..NSP151202012

MARK3,REFER REPAIR MANUAL

main11701-0Y030-04×5i2NRFE..NSP151202012

MARK4,REFER REPAIR MANUAL

main11701-0Y030-05×5i2NRFE..NSP151202012

MARK5,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010×2i2NRFE..NSP151202012

STD

13011RING SET, PISTON

main13011-0Y030i2NRFE..NSP151202012

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01×4i2NRFE..NSP151202012

MARK1,REFER REPAIR MANUAL

main13041-0Y040-02×4i2NRFE..NSP151202012

MARK2,REFER REPAIR MANUAL

main13041-0Y040-03×4i2NRFE..NSP151202012

MARK3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0Y120×4i2NRFE..NSP151202012

STD

13201ROD SUB-ASSY, CONNECTING

main13201-09C20×4i2NRFE..NSP151202012

13265BOLT, CONNECTING ROD

main13265-0Y020×8i2NRFE..NSP151202012

13405FLYWHEEL SUB-ASSY

main13405-0Y080i2NRFE..NSP151..5F202012

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i2NRFE..NSP151..5F202012

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01029×8i2NRFE..NSP151..5F202012

13411CRANKSHAFT

main13401-BZ100i2NRFE..NSP151202012

13471PULLEY, CRANKSHAFT

main13470-0Y020i2NRFE..NSP151202012

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-T0444i2NRFE..NSP151202012

sub90119-T0529

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-BZ040i2NRFE..NSP151202012

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04001i2NRFE..NSP151202012

15 parts on this diagram · 1 diagram in section
