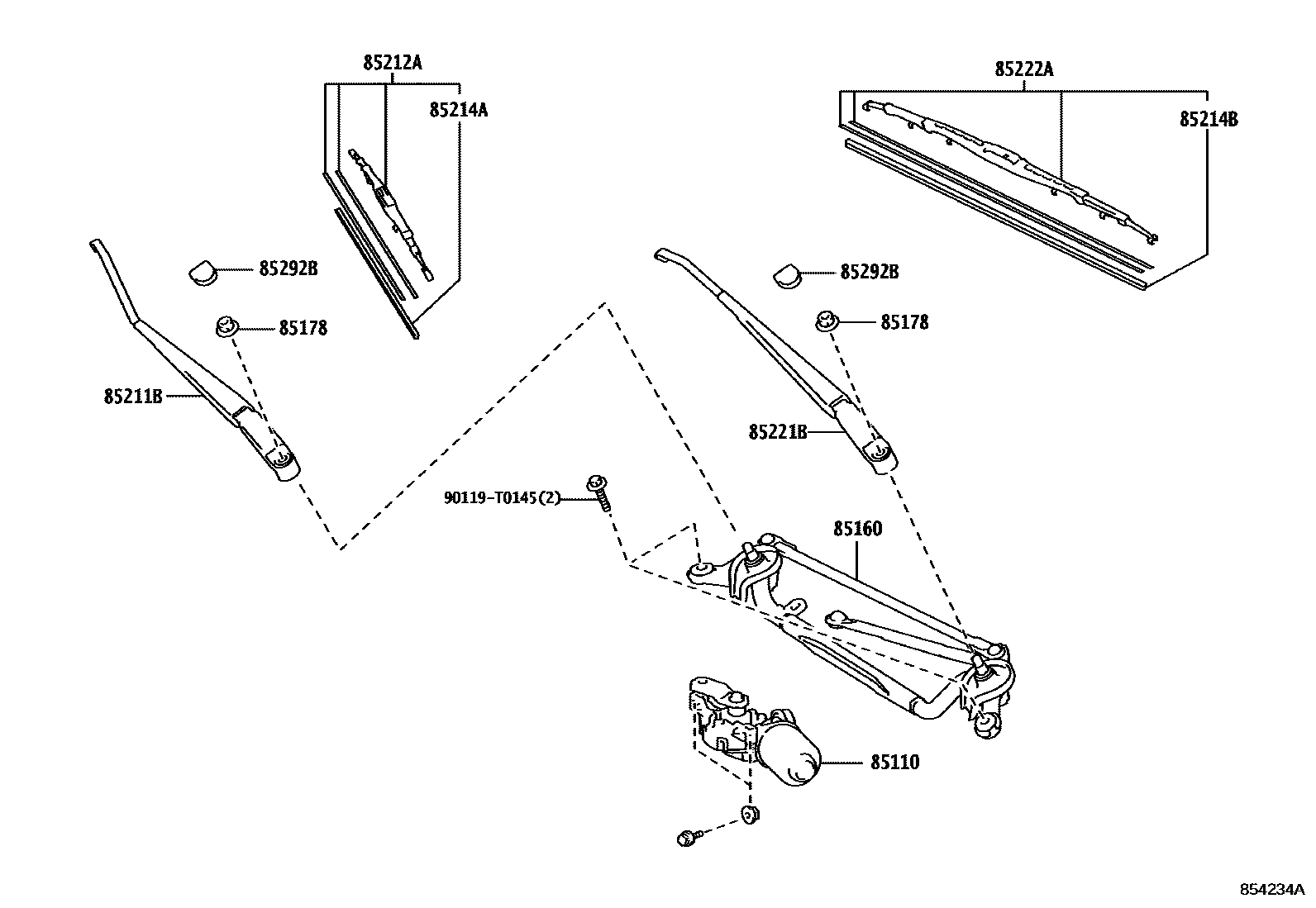

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D260iNSP150201912-202111

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D200iNSP150201912-202111

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-T0029×2iNSP150201912-202111

85211BARM, FRONT WIPER, RH

main85211-0D200iNSP150201912-202111

85212ABLADE, FR WIPER, RH

main85212-0D081iNSP150201912-202111

85214ARUBBER, WIPER, RH

main85214-0D121iNSP150201912-202111

85214BRUBBER, WIPER, LH

main85214-02180iNSP150201912-202111

85221BARM, FRONT WIPER, LH

main85221-0D180iNSP150201912-202111

85222ABLADE, FR WIPER, LH

main85222-0D080iNSP150201912-202111

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2iNSP150201912-202111

90119T0145

main90119-T0145

11 parts on this diagram · 1 diagram in section
