WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL & FLOOR & RO0004 1DOOR 0005 1CLAMP & BRACKET 0006 1CONNECTOR 1/3 0007 1CONNECTOR 2/3 0008 1CONNECTOR 3/3

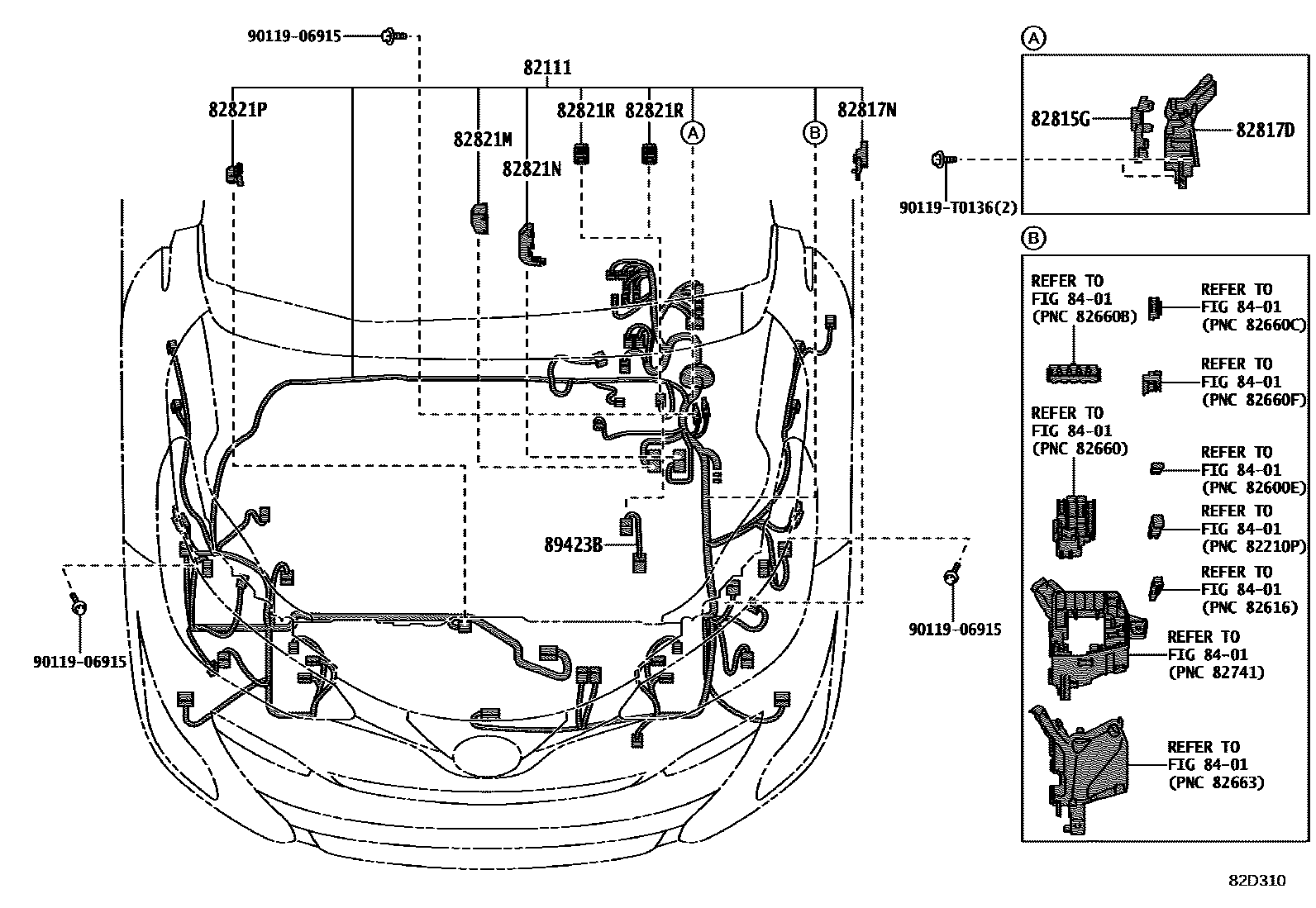

82111WIRE, ENGINE ROOM MAIN

main82111-0UX82iNSP150201912-202010

main82111-0UX83iNSP150202010-202103

main82115-F5B90iNSP150202103-202111

main82111-0UU70supersedes 82115-F5150iNSP151..G202103

MLM PACKAGE

main82111-F5Y10supersedes 82111-F5V31iNSP151..5F202103

MLM PACKAGE

main82111-F5Y20supersedes 82115-0U703iNSP151..CVT..R202103

MLM PACKAGE

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0D350iNSP151201912

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0D700iNSP150201912-202111

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-0D580iNSP150201912-202111

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-0DB10iNSP150201912-202111

82821MCOVER, CONNECTOR

main82821-12570iNSP150201912-202111

82821NCOVER, CONNECTOR

main82821-52240iNSP151..CVT201912

82821PCOVER, CONNECTOR

main82821-30650iNSP150201912-202111

82821RCOVER, CONNECTOR

main82821-30600×2iNSP150201912-202111

8401

89423BWIRE, VACUUM SENSOR

main89423-0D020iNSP150201912-202111

9011906915

main90119-06915

90119T0136

main90119-T0136

13 parts on this diagram · 8 diagrams in section
