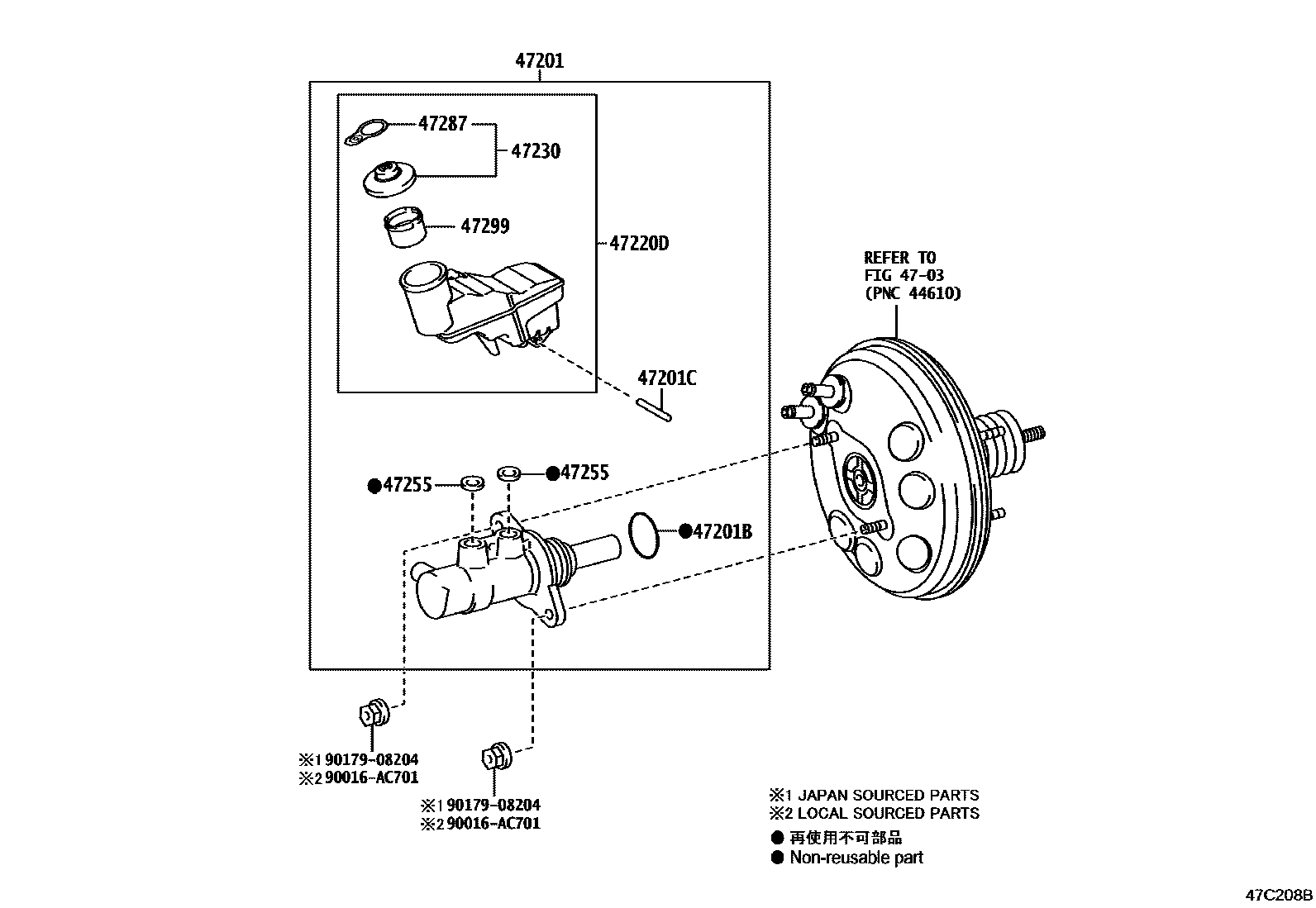

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D640iNSP150201912-202111

main47201-0D820iNSP151..CVT201912

main47201-0DB00iNSP151..5F201912

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH903iNSP151201912

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP150201912-202111

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D370iNSP151..CVT201912

main47220-0D380iNSP151..5F201912

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iNSP150201912-202111

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001×2iNSP150201912-202111

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNSP150201912-202111

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iNSP150201912-202111

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
