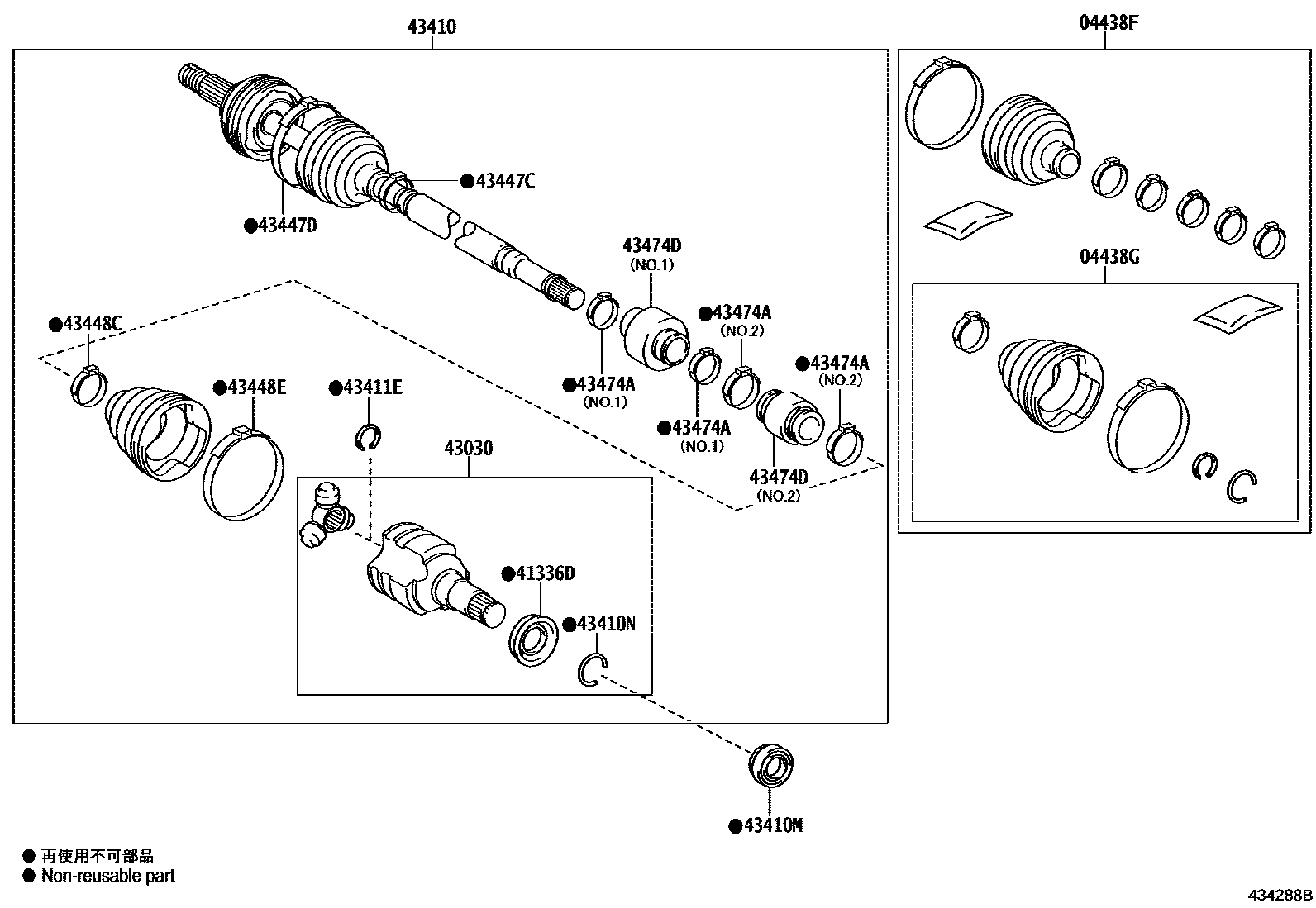

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D351iNSP151201912

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D250iNSP150201912-202111

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0D120iNSP150201912-202111

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0D030iNSP150201912-202111

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D700iNSP151201912

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34050iNSP151..CVT201912

main90311-T0079iNSP15#..5F201912-202004

main90311-T0104iNSP150202004-202111

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0D390iNSP151201912

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D380iNSP150201912-202111

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0DA70iNSP150201912-202111

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0DA80iNSP150201912-202111

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DA70iNSP150201912-202111

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DA60iNSP150201912-202111

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-0DA50×2iNSP151201912

NO.1:REFER ILLUST.

main42345-0DB40×2iNSP151201912

NO.2:REFER ILLUST.

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D140iNSP150201912-202111

NO.1:REFER ILLUST.

main43474-0D290iNSP150201912-202111

NO.2:REFER ILLUST.

14 parts on this diagram · 2 diagrams in section
