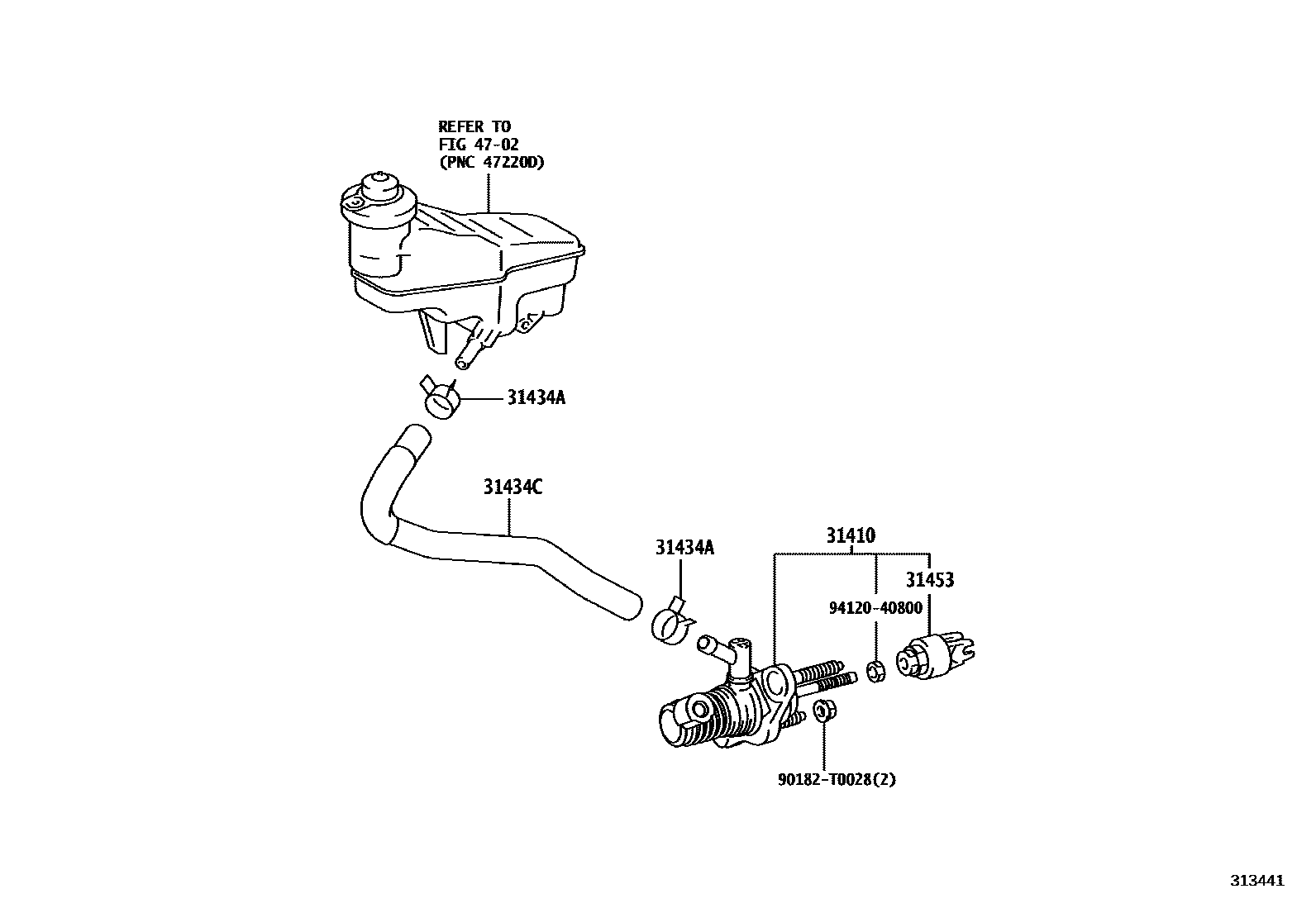

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D220iNSP150201912-202111

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0052×2iNSP150201912-202111

31434CTUBE, CLUTCH RESERVOIR

main31434-52300iNSP150201912-202111

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0D020iNSP150201912-202111

4702

90182T0028

main90182-T0028

9412040800

main94120-40800

7 parts on this diagram · 1 diagram in section
