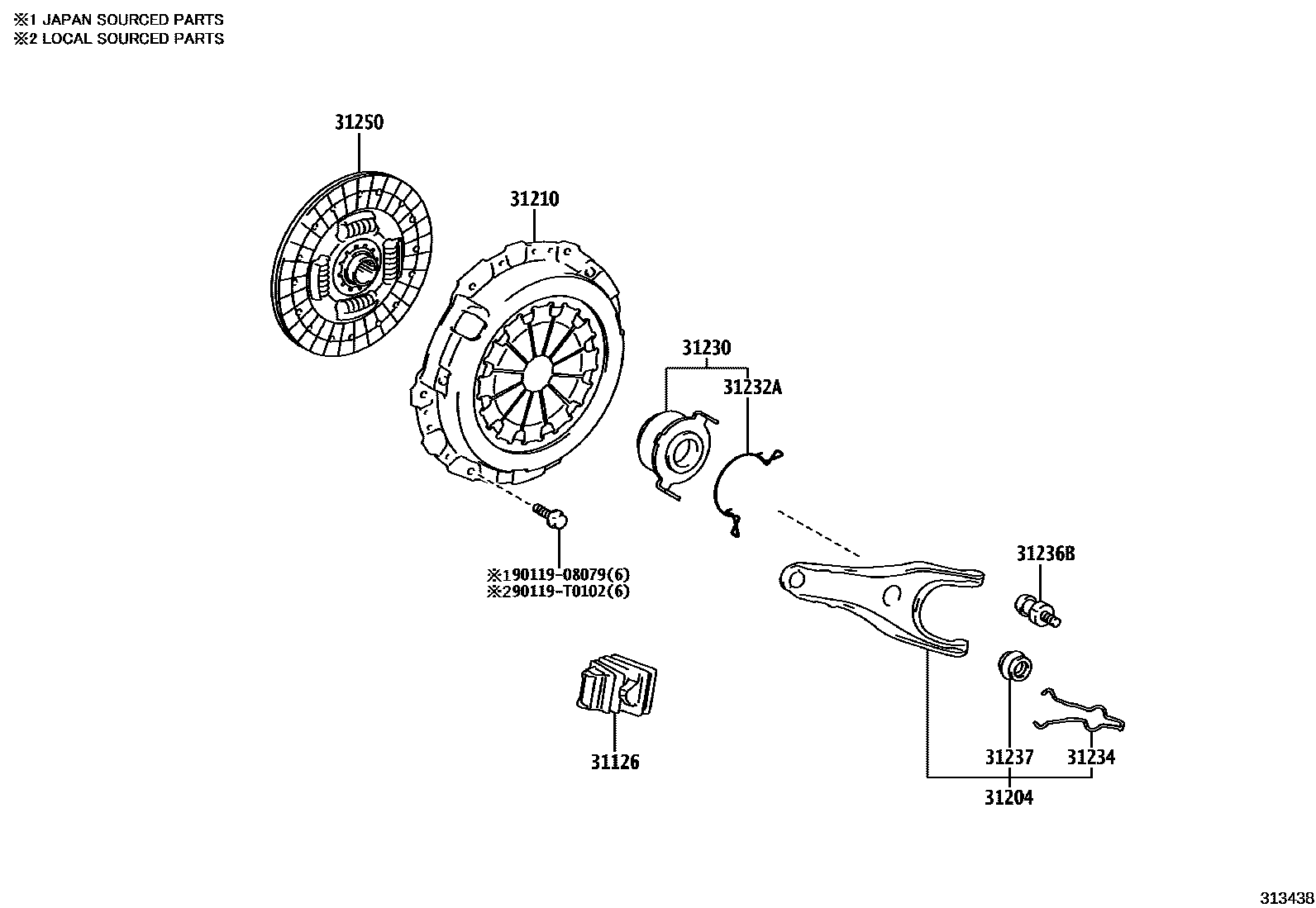

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0D090iNSP150201912-202111

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D040iNSP150201912-202111

31210COVER ASSY, CLUTCH

main31210-0D230iNSP150201912-202111

main31210-0D240iNSP151..5F201912

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D012iNSP150201912-202111

31232ACLIP, RELEASE BEARING HUB

main31232-0D010iNSP150201912-202111

31234SPRING, RELEASE FORK ANTI-RATTLE

main31234-52020iNSP150201912-202111

31236BSUPPORT, RELEASE FORK

main31236-0D020iNSP150201912-202111

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0D020iNSP150201912-202111

31250DISC ASSY, CLUTCH

main31250-0D320iNSP150201912-202111

main31250-0D330iNSP151..5F201912

9011908079

main90119-08079

90119T0102

main90119-T0102

11 parts on this diagram · 1 diagram in section
