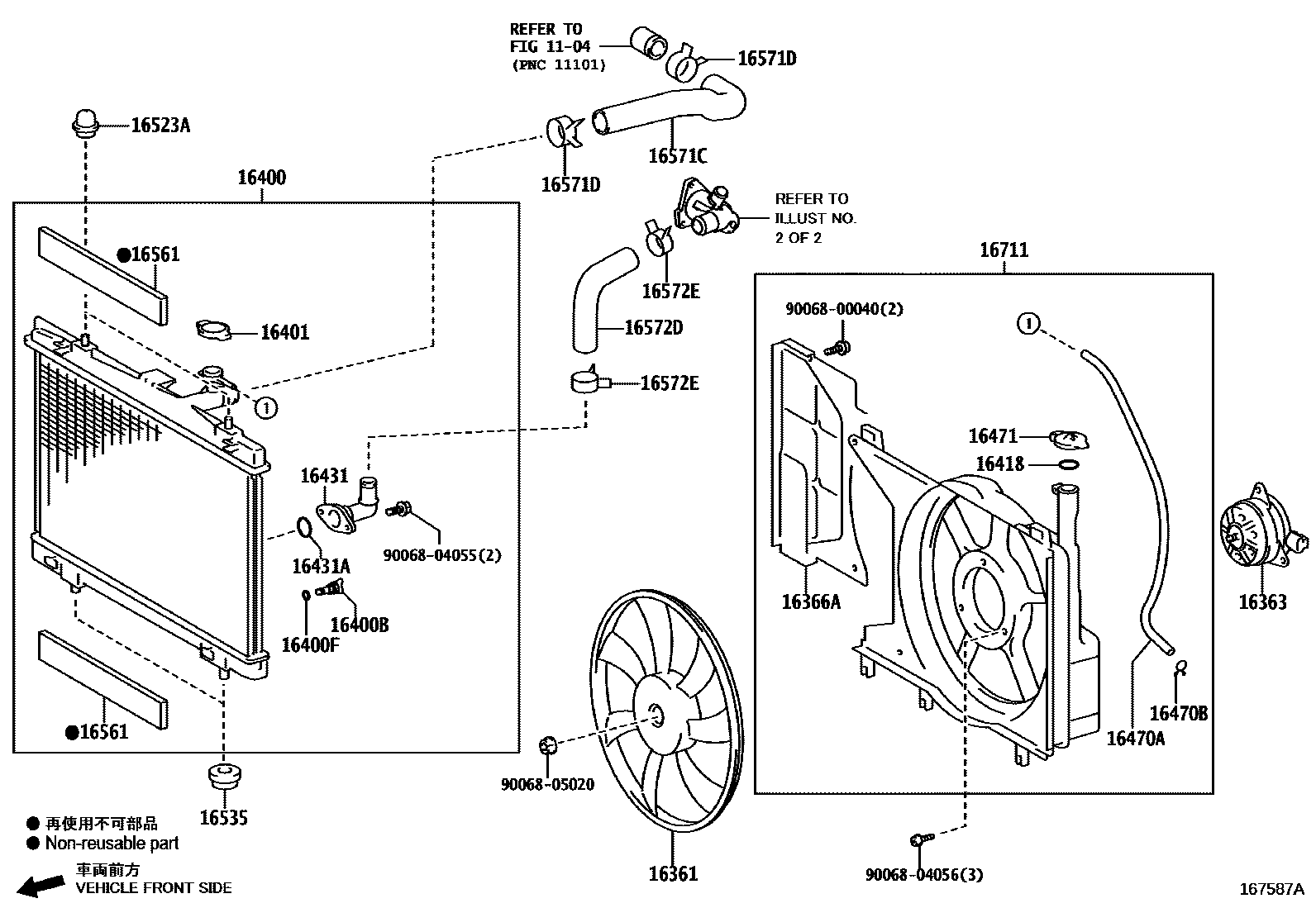

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1104

16361FAN

main16361-0M110i1NRFE..NSP150201912-202111

16363MOTOR, COOLING FAN

main16363-0Y050i1NRFE,2NRFE..NSP15#201912-202103

main16363-0Y140i1NRFE..NSP150202103-202111

16366AINSULATOR, COOLING FAN MOTOR

main16366-0Y240i1NRFE..NSP150201912-202111

16400RADIATOR ASSY

main16400-0Y191i1NRFE..NSP150201912-202111

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1NRFE..NSP150201912-202111

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i1NRFE..NSP150201912-202111

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i1NRFE..NSP150201912-202111

16418PACKING

main16476-0H060i1NRFE..NSP150201912-202111

16431INLET, RADIATOR WATER

main16431-0Y190i1NRFE..NSP150201912-202111

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y100i1NRFE..NSP150201912-202111

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0Y240i1NRFE..NSP150201912-202111

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NRFE..NSP150201912-202111

16471CAP SUB-ASSY, RESERVE TANK

main16376-0Y050i1NRFE..NSP150201912-202111

16523ACUSHION, RADIATOR SUPPORT

main16523-21030×2i1NRFE..NSP150201912-202111

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i1NRFE..NSP150201912-202111

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0Y010×2i1NRFE..NSP150201912-202111

16571CHOSE, RADIATOR, NO.1

main16571-0Y100i1NRFE..NSP150201912-202111

main16571-0Y101i2NRFE..NSP151..CVT201912

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901×2i1NRFE..NSP150201912-202111

16572DHOSE, RADIATOR, NO.2

main16572-0Y161i1NRFE,2NRFE..NSP15#201912-202105

main16572-0Y250i1NRFE..NSP150202105-202111

16572ECLIP, RADIATOR HOSE, NO.2

main96136-43901×2i1NRFE..NSP150201912-202111

16711SHROUD, FAN

main16711-0Y160i1NRFE,2NRFE..NSP15#201912-202103

main16711-0Y340i1NRFE..NSP150202103-202111

9006800040

main90068-00040

9006804055

main90068-04055

9006804056

main90068-04056

9006805020

main90068-05020

26 parts on this diagram · 3 diagrams in section
