STANDARD TOOL

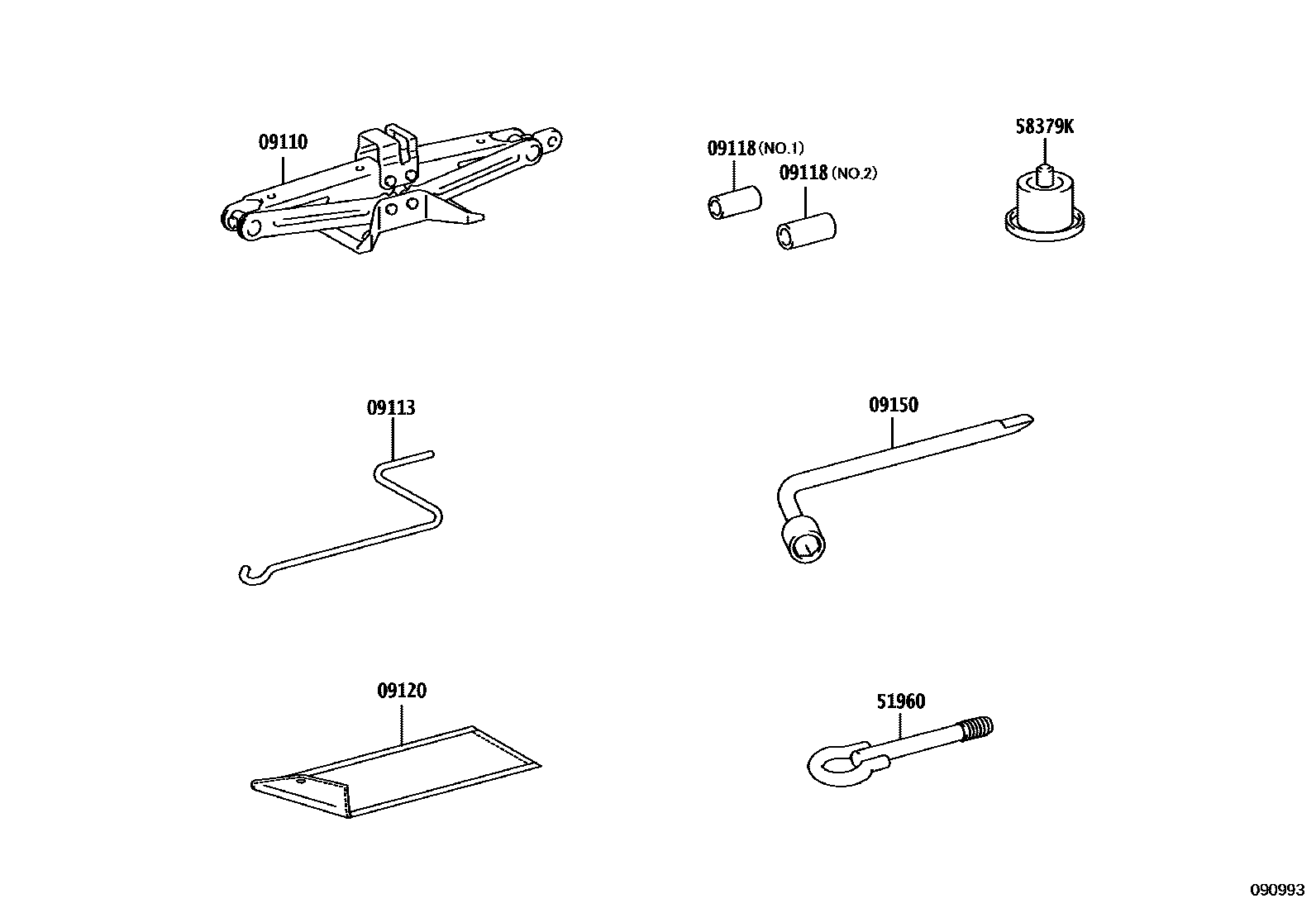

Parts diagram

09110JACK ASSY

main09111-0D060i201912-202111

main09111-0D220i202111

09113HANDLE, JACK

main09113-0D060i201912-202111

09118COVER, JACK

main09118-0D030i201912-202111

NO.1:REFER ILLUST.

main09118-0D040i201912

NO.2:REFER ILLUST.

09120BAG, TOOL

main09120-0D130i201912-202111

09150WRENCH, HUB NUT BOX

main09150-02090i201912-202111

51960HOOK ASSY, FRONT

main51960-0D250i201912-202111

58379KPROTECTOR, BODY LOWER BACK

main58379-0D040i201912-202111

7 parts on this diagram · 1 diagram in section
