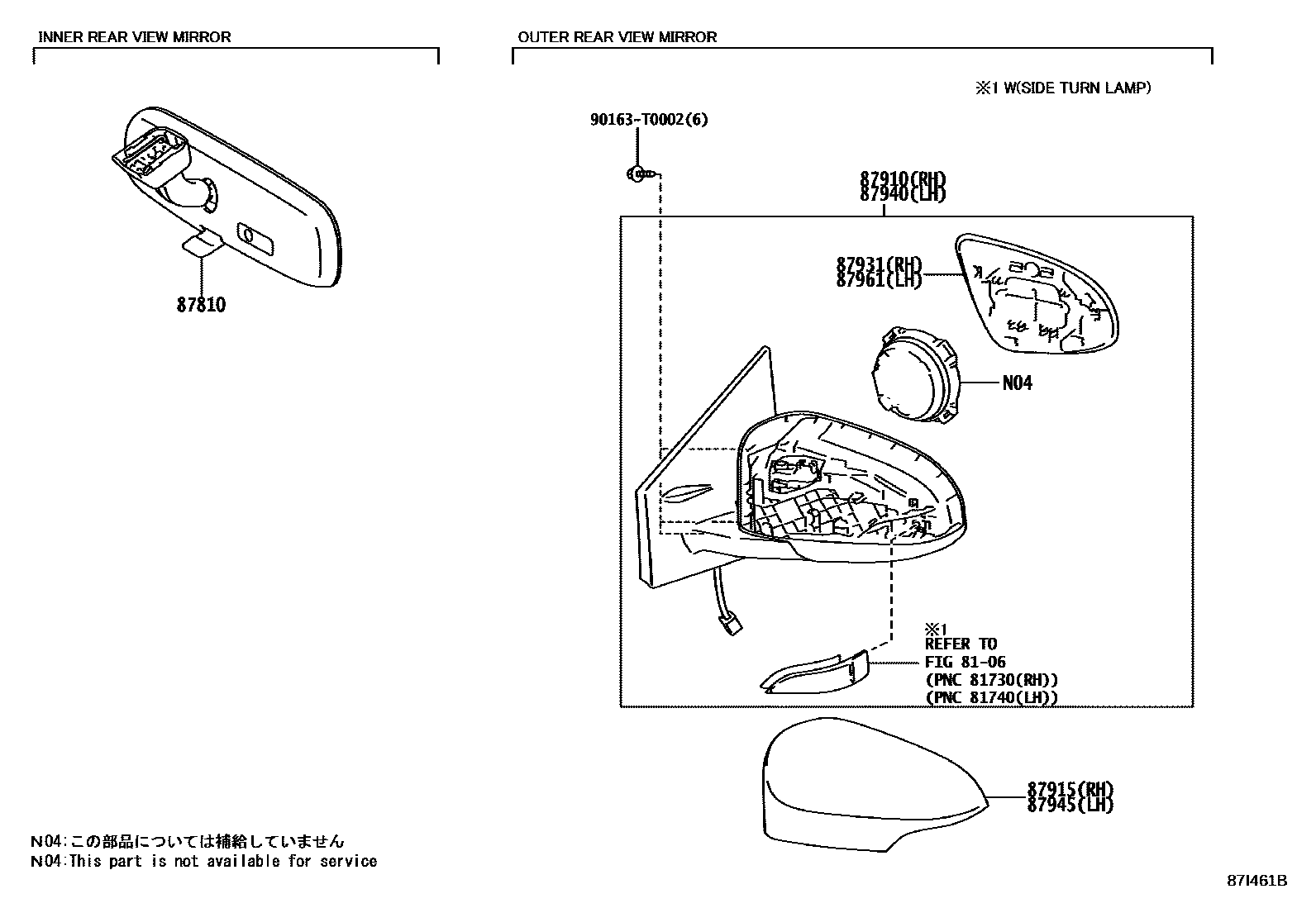

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.,SPORT PACKAGE
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.,SPORT PACKAGE
87961MIRROR OUTER, LH
90163T0002
main90163-T0002
9 parts on this diagram · 1 diagram in section
